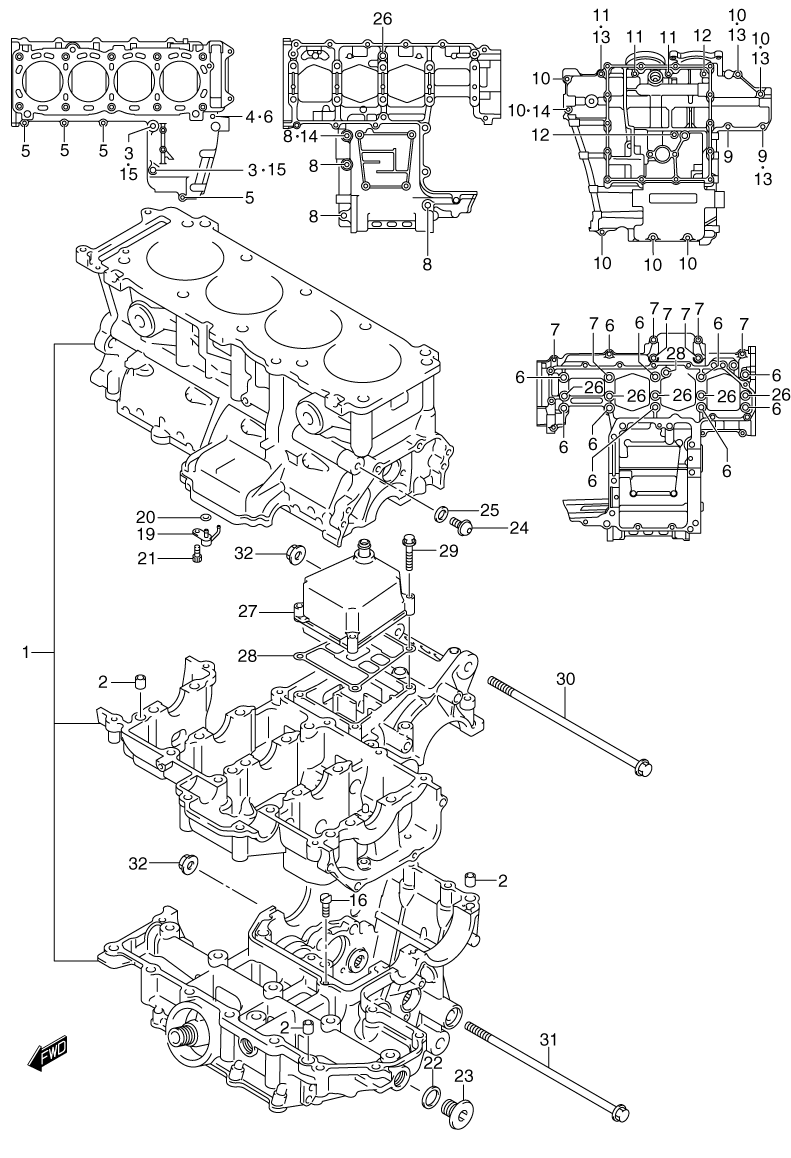

CRANKCASE для Suzuki GSX-R1000 K2 - 2002 года выпуска
-
№АртикулНазвание
-
111302-40811 CRANKCASE SETCRANKCASE SET
-
211319-33E50 ...PIN...PIN
-
309106-08139 ...BOLT (8X120)...BOLT (8X120)
-
409168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
501547-06403 ...BOLT...BOLT
-
609103-09012 ...BOLT (9X95)...BOLT (9X95)
-
709103-08170 ...BOLT...BOLT
-
807120-08653 ...BOLT...BOLT
-
901547-06303 ...BOLT...BOLT
-
1001547-06403 ...BOLT...BOLT
-
1101547-06603 ...BOLT...BOLT
-
1201547-06703 ...BOLT...BOLT
-
1309168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
1409168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1509168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1609493-28012 ...JET...JET
-
1712228-48B00-0E0 ...BEARING, THRUST (RIGHT) (GREEN)...BEARING, THRUST (RIGHT) (GREEN)
-
18-112228-48B00-0B0 ...BEARING, THRUST (LEFT) (BLACK)...BEARING, THRUST (LEFT) (BLACK)
-
18-212228-48B00-0C0 ...BEARING, THRUST (LEFT) (BLUE)...BEARING, THRUST (LEFT) (BLUE)
-
18-312228-48B00-0D0 ...BEARING, THRUST (LEFT) (GREEN)...BEARING, THRUST (LEFT) (GREEN)
-
18-412228-48B00-0E0 ...BEARING, THRUST (LEFT) (YELLOW)...BEARING, THRUST (LEFT) (YELLOW)
-
18-512228-48B00-0F0 ...BEARING, THRUST (LEFT) (WHITE)...BEARING, THRUST (LEFT) (WHITE)
-
18-612228-48B00-0G0 ...BEARING, THRUST (LEFT) (ORANGE)...BEARING, THRUST (LEFT) (ORANGE)
-
18-712228-48B00-0H0 ...BEARING, THRUST (LEFT) (BLACK)...BEARING, THRUST (LEFT) (BLACK)
-
1911390-35F00 JET, PISTON COOLINGJET, PISTON COOLING
-
2009280-04004 O-RING (D:1.2,ID:4.0)O-RING (D:1.2,ID:4.0)
-
2109106-06075 BOLT, PISTON COOLINGBOLT, PISTON COOLING
-
2209168-16002 GASKETGASKET
-
2309248-16013 PLUG, OIL GALLERYPLUG, OIL GALLERY
-
2409248-10010 PLUG, OIL GALLERY UPPER (LEFT)PLUG, OIL GALLERY UPPER (LEFT)
-
2509168-10002 GASKET, OIL GALLERY UPPER (LEFT)GASKET, OIL GALLERY UPPER (LEFT)
-
2609280-08012 O-RING (D:1.9,ID:7.8)O-RING (D:1.9,ID:7.8)
-
2711370-35F00 COVER, BREATHERCOVER, BREATHER
-
2811484-35F00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
2907120-06303 BOLTBOLT
-
3009103-10041 BOLT (10X215)BOLT (10X215)
-
3109103-10041 BOLT (10X215)BOLT (10X215)
-
3209159-10058 NUTNUT
