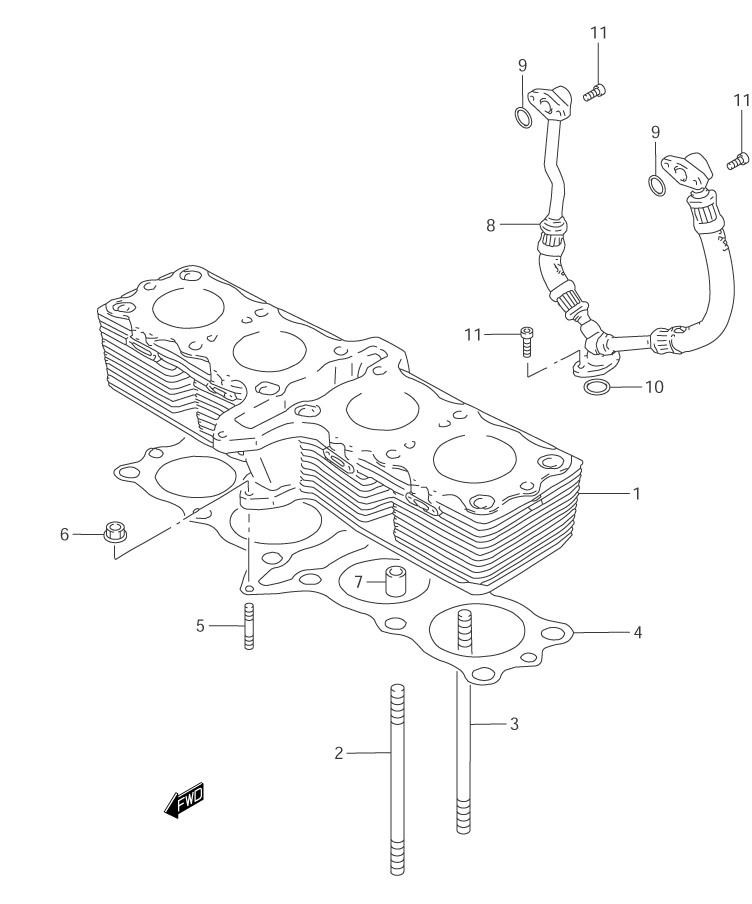

CYLINDER для Suzuki GSX600F K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-211210-26E00-0F0 CYLINDER (EXCEPT CALIF.)CYLINDER (EXCEPT CALIF.)
-
1-411210-26E10-0F0 CYLINDER (CALIFORNIA ONLY)CYLINDER (CALIFORNIA ONLY)
-
209108-10109 STUD BOLT (10X150)STUD BOLT (10X150)
-
309108-10073 STUD BOLT (10X143)STUD BOLT (10X143)
-
411241-27A04 GASKET, CYLINDERGASKET, CYLINDER
-
501421-06203 STUD BOLTSTUD BOLT
-
608316-10063 NUTNUT
-
709206-13017 PINPIN
-
811328-27A04 HOSE, OIL HEAD COOLERHOSE, OIL HEAD COOLER
-
909280-14011 O-RING (D:2.5,ID:13.8)O-RING (D:2.5,ID:13.8)
-
1009280-15007 O-RING (D:2.4,ID:15.8)O-RING (D:2.4,ID:15.8)
-
1107130-06163 BOLTBOLT
