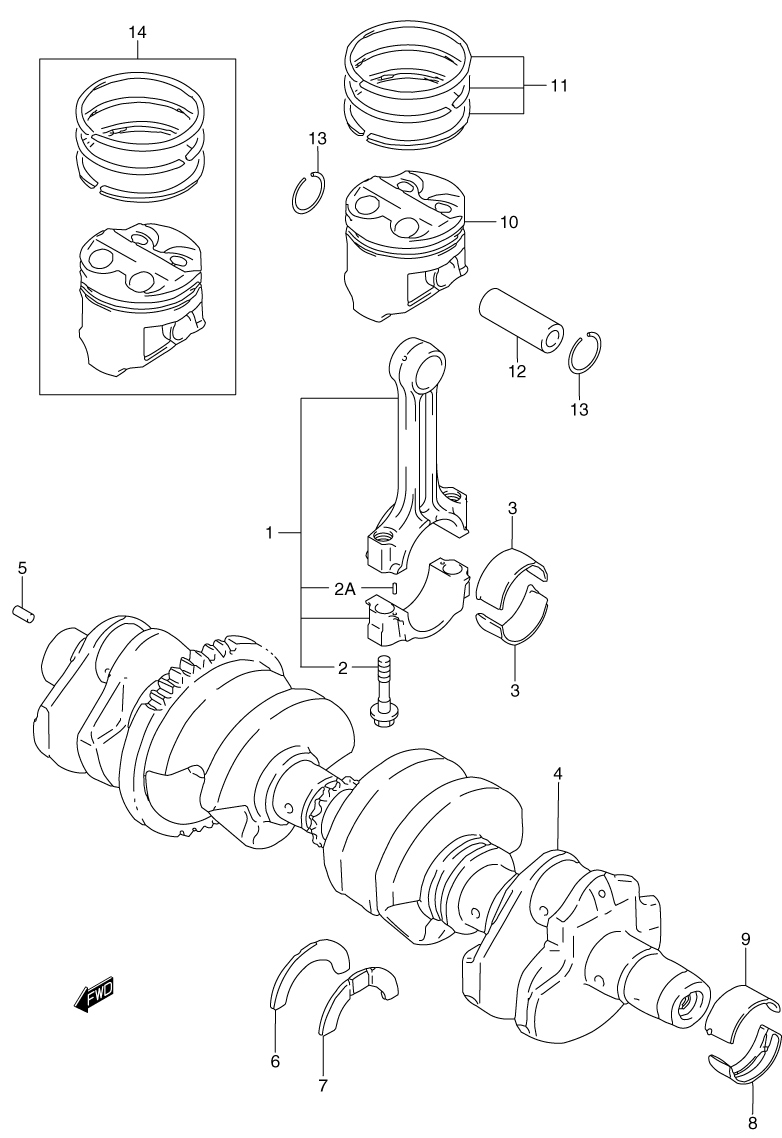

CRANKSHAFT W/ PISTON для Suzuki GSX750F K2 - 2002 года выпуска

№

Артикул

Название
1

12160-17E01 ROD ASSY. CONNECTING

ROD ASSY. CONNECTING

34 310 ₽
2

12163-27A52 ...BOLT

...BOLT

0 ₽
2A

12165-27A50 ...PIN, CONNROD

...PIN, CONNROD

250 ₽
3-1

12164-26E00-0A0 ...BEARING, CRANK PIN (GREEN)

...BEARING, CRANK PIN (GREEN)

58 500 ₽
3-2

12164-26E00-0B0 ...BEARING, CRANK PIN (BLACK)

...BEARING, CRANK PIN (BLACK)

58 500 ₽
3-3

12164-26E00-0C0 ...BEARING, CRANK PIN (BROWN)

...BEARING, CRANK PIN (BROWN)

58 500 ₽
3-4

12164-26E00-0D0 ...BEARING, CRANK PIN (YELLOW)

...BEARING, CRANK PIN (YELLOW)

58 500 ₽
4

12000-03810 CRANKSHAFT SET

CRANKSHAFT SET

0 ₽
5

04221-04089 ...PIN

...PIN

190 ₽
6

12228-43414 ...BEARING, THRUST (RIGHT) (BROWN)

...BEARING, THRUST (RIGHT) (BROWN)

1 440 ₽
7-1

12228-43411 ...BEARING, THRUST (LEFT) (RED)

...BEARING, THRUST (LEFT) (RED)

1 440 ₽
7-2

12228-43412 ...BEARING, THRUST (LEFT) (BLACK)

...BEARING, THRUST (LEFT) (BLACK)

1 440 ₽
7-3

12228-43413 ...BEARING, THRUST (LEFT) (BLUE)

...BEARING, THRUST (LEFT) (BLUE)

1 440 ₽
7-4

12228-43414 ...BEARING, THRUST (LEFT) (GREEN)

...BEARING, THRUST (LEFT) (GREEN)

1 440 ₽
7-5

12228-43415 ...BEARING, THRUST (LEFT) (YELLOW)

...BEARING, THRUST (LEFT) (YELLOW)

1 440 ₽
7-6

12228-43416 ...BEARING, THRUST (LEFT) (WHITE)

...BEARING, THRUST (LEFT) (WHITE)

1 440 ₽
8-1

12229-27A00-0A0 BEARING, CRANKSHAFT (GREEN)

BEARING, CRANKSHAFT (GREEN)

53 300 ₽
8-2

12229-27A00-0B0 BEARING, CRANKSHAFT (BLACK)

BEARING, CRANKSHAFT (BLACK)

53 300 ₽
8-3

12229-27A00-0C0 BEARING, CRANKSHAFT (BROWN)

BEARING, CRANKSHAFT (BROWN)

53 300 ₽
8-4

12229-27A00-0D0 BEARING, CRANKSHAFT (YELLOW)

BEARING, CRANKSHAFT (YELLOW)

53 300 ₽
9-1

12229-27A10-0A0 BEARING, CRANKSHAFT (GREEN)

BEARING, CRANKSHAFT (GREEN)

53 300 ₽
9-2

12229-27A10-0B0 BEARING, CRANKSHAFT (BLACK)

BEARING, CRANKSHAFT (BLACK)

53 300 ₽
9-3

12229-27A10-0C0 BEARING, CRANKSHAFT (BROWN)

BEARING, CRANKSHAFT (BROWN)

53 300 ₽
9-4

12229-27A10-0D0 BEARING, CRANKSHAFT (YELLOW)

BEARING, CRANKSHAFT (YELLOW)

53 300 ₽
10

12111-03F00-0F0 PISTON

PISTON

594 100 ₽
11

12140-03F00 RING SET, PISTON

RING SET, PISTON

10 950 ₽
12

12151-07D00 PIN, PISTON

PIN, PISTON

2 740 ₽
13

09381-18003 CIRCLIP

CIRCLIP

320 ₽
14

12100-03F00-050 PISTON SET (OS:0.5) (OPT)

PISTON SET (OS:0.5) (OPT)

855 400 ₽
