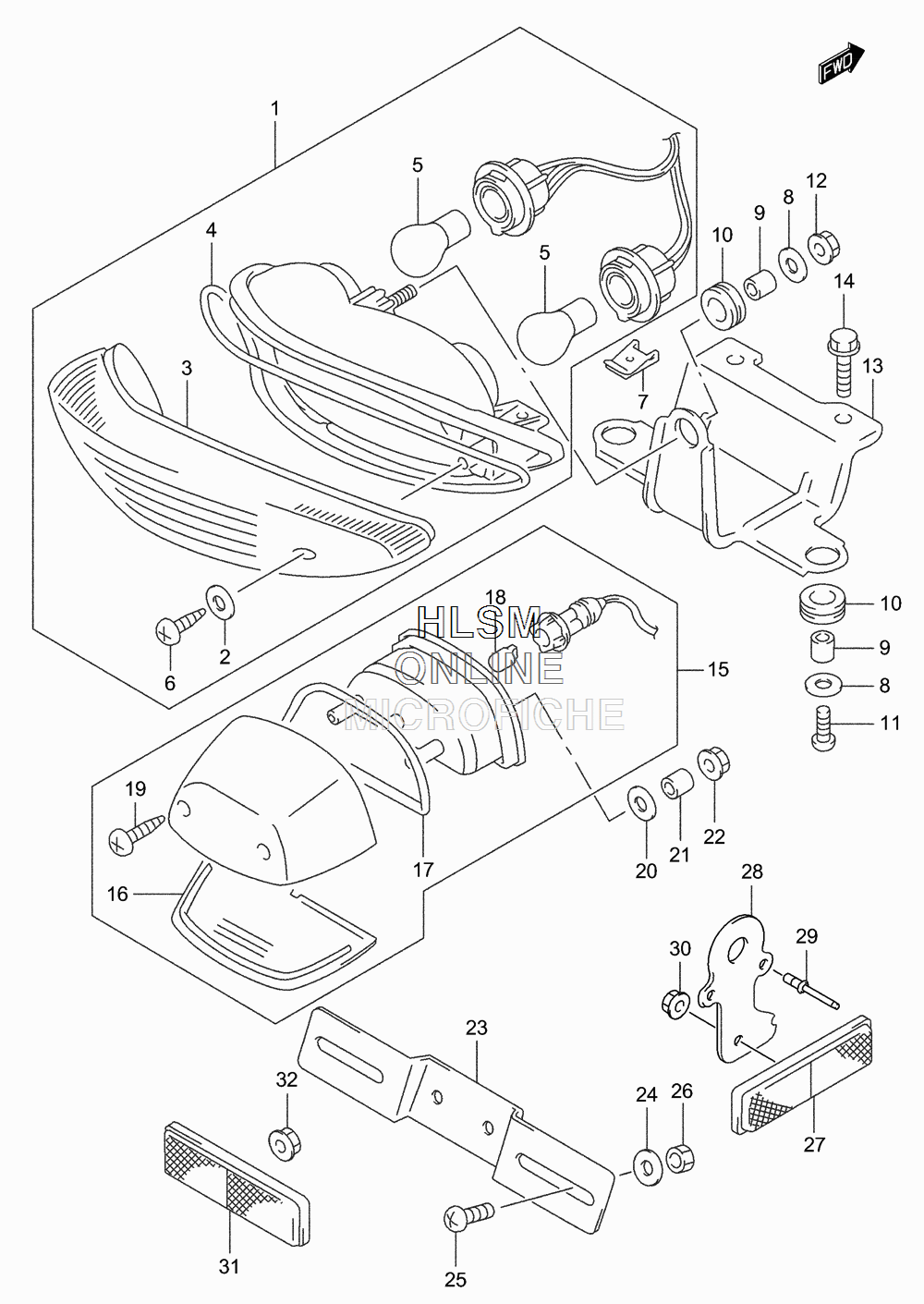

TAILLIGHT ASSY. для Suzuki SV650 K2 - 2002 года выпуска
-
№АртикулНазвание
-
135710-02F30 LAMP ASSY, REAR COMBINATION (INC. 2-6)LAMP ASSY, REAR COMBINATION (INC. 2-6)
-
235627-43010 GASKETGASKET
-
335712-02F30 LENSLENS
-
435713-02F00 GASKETGASKET
-
509471-12128 BULB (12V,21/5W)BULB (12V,21/5W)
-
603211-04207 SCREWSCREW
-
709148-05020 NUTNUT
-
809160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
909180-06285 SPACER (6.5X10X9)SPACER (6.5X10X9)
-
1009320-09009 CUSHIONCUSHION
-
1103541-05203 SCREWSCREW
-
1208316-10063 NUTNUT
-
1335726-19F00 BRACKET, REAR COMBINATIONBRACKET, REAR COMBINATION
-
1401550-06123 BOLTBOLT
-
1535910-02F00 LAMP ASSY, LICENSE (INC. 16-19)LAMP ASSY, LICENSE (INC. 16-19)
-
1635912-02F00 LENSLENS
-
1735913-02F00 GASKETGASKET
-
1809471-12081 BULB (12V,5W)BULB (12V,5W)
-
1903211-04163 SCREWSCREW
-
2009160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
2109180-05054 SPACER (5.5X9.5X11.5)SPACER (5.5X9.5X11.5)
-
2208316-10053 NUTNUT
-
2335927-48B30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2409160-06088 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
2502142-06123 SCREWSCREW
-
2608316-10063 NUTNUT
-
2735970-07F00 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
2835975-19F00 BRACKET, REAR SIDE RRBRACKET, REAR SIDE RR
-
2909229-04038 RIVET, REAR SIDERIVET, REAR SIDE
-
3008310-00053 NUT, REAR SIDENUT, REAR SIDE
-
3135970-07F00 REFLEX REFLECTOR ASSYREFLEX REFLECTOR ASSY
-
3208316-10053 NUT, REARNUT, REAR
