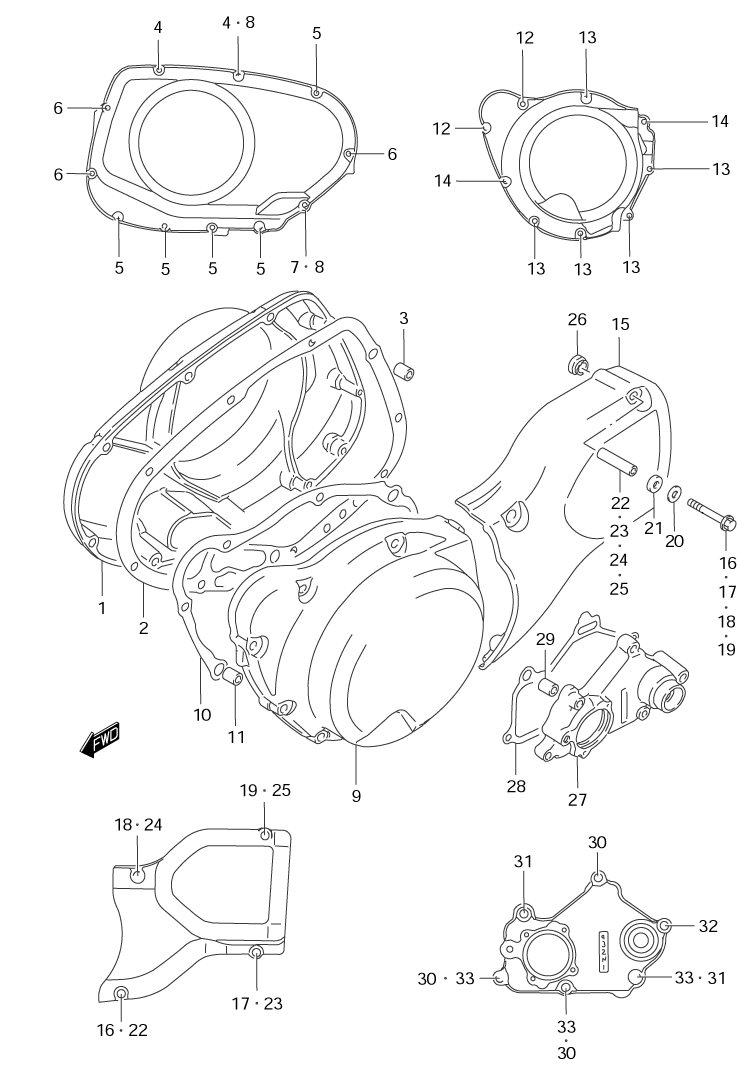

CRANKCASE COVER для Suzuki VS-1400GLP K2 - 2002 года выпуска
-
№АртикулНазвание
-
1-111341-38B00 COVER, CLUTCH (UP TO FRAME NO.W2101994)COVER, CLUTCH (UP TO FRAME NO.W2101994)
-
1-211341-38B01 COVER, CLUTCH (FRAME NO.W2101995 AND UP)COVER, CLUTCH (FRAME NO.W2101995 AND UP)
-
2-211482-38B10 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
304211-09189 PINPIN
-
4-101547-06257 BOLT (UP TO FRAME NO.W2101994)BOLT (UP TO FRAME NO.W2101994)
-
4-201547-06307 BOLT (FRAME NO.W2101995 AND UP)BOLT (FRAME NO.W2101995 AND UP)
-
501547-06307 BOLTBOLT
-
601547-06407 BOLTBOLT
-
701547-06557 BOLTBOLT
-
8-109168-06024 GASKET (5.8X11X1.2) (UP TO ENGINE NO.175273)GASKET (5.8X11X1.2) (UP TO ENGINE NO.175273)
-
8-209168-06023 GASKET (5.8X13X1.2) (ENGINE NO.175274 AND UP)GASKET (5.8X13X1.2) (ENGINE NO.175274 AND UP)
-
911351-38B00 COVER, GENERATORCOVER, GENERATOR
-
1011483-38B00-H17 GASKET, GENERATOR COVERGASKET, GENERATOR COVER
-
11-209206-11017 PINPIN
-
1201547-06307 BOLTBOLT
-
1301547-06357 BOLTBOLT
-
1401547-06457 BOLTBOLT
-
1511361-38B00 COVER, SECONDARY CASECOVER, SECONDARY CASE
-
1601547-06357 BOLTBOLT
-
1701547-06407 BOLTBOLT
-
1801547-06607 BOLTBOLT
-
1901547-06607 BOLTBOLT
-
20-209160-06125 WASHERWASHER
-
2109161-09005 CUSHION, OUTERCUSHION, OUTER
-
2209180-06301 SPACER (L:18.2)SPACER (L:18.2)
-
2309180-06302 SPACER (L:23)SPACER (L:23)
-
2409180-06303 SPACER (L:43)SPACER (L:43)
-
25-109180-06183 SPACER (L:45.9) (AND UP ENGINE NO.155401)SPACER (L:45.9) (AND UP ENGINE NO.155401)
-
25-209180-06281 SPACER (L:45.9) (ENGINE NO.155402 AND UP)SPACER (L:45.9) (ENGINE NO.155402 AND UP)
-
2609161-09005 CUSHION, INNERCUSHION, INNER
-
27-411371-38B20 COVER, GEAR SHIFTCOVER, GEAR SHIFT
-
28-211485-38B10 GASKET, GEAR SHIFT COVERGASKET, GEAR SHIFT COVER
-
2904211-09109 PINPIN
-
3001547-06257 BOLTBOLT
-
3101547-06357 BOLTBOLT
-
3201547-06457 BOLTBOLT
-
33-109168-06024 GASKET (5.8X11X1.2) (UP TO ENGINE NO.175273)GASKET (5.8X11X1.2) (UP TO ENGINE NO.175273)
-
33-209168-06023 GASKET (5.8X13X1.2) (ENGINE NO.175274 AND UP)GASKET (5.8X13X1.2) (ENGINE NO.175274 AND UP)
