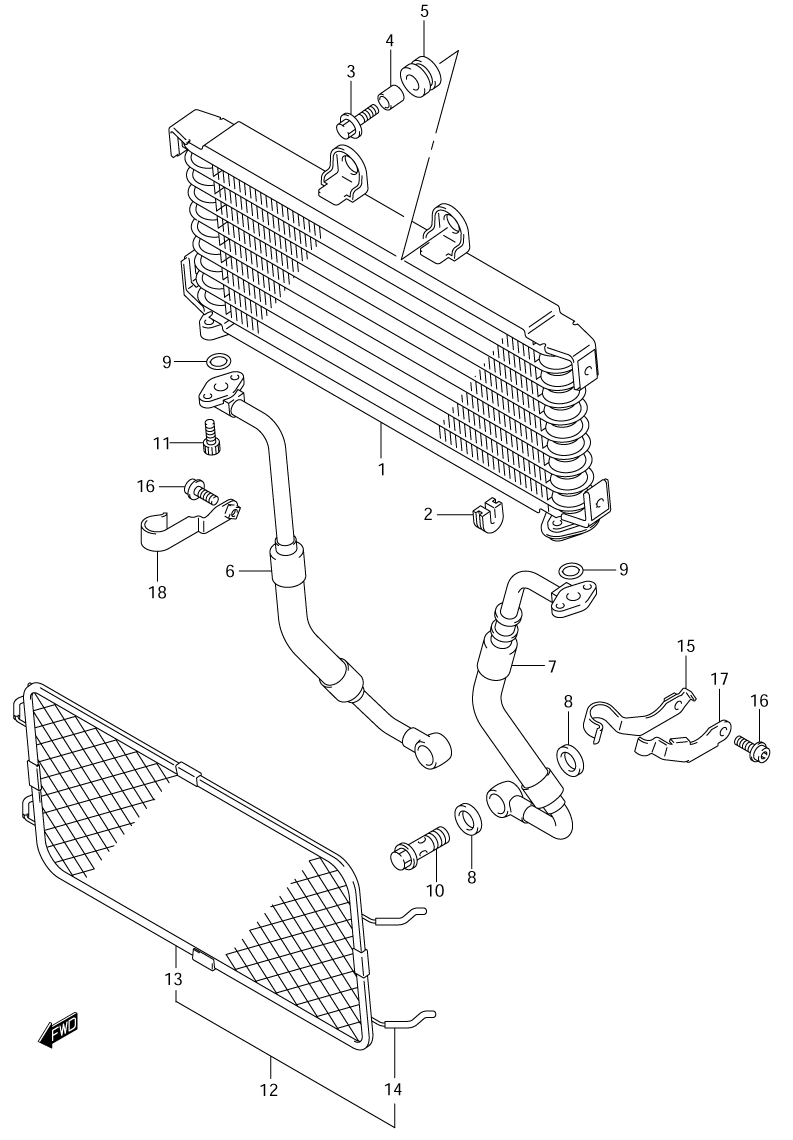

OIL COOLER для Suzuki GSF1200 K3 - 2003 года выпуска
-
№АртикулНазвание
-
116600-47F00 COOLER ASSY., OILCOOLER ASSY., OIL
-
216628-27A00 CUSHIONCUSHION
-
309116-06167 BOLT (6X20)BOLT (6X20)
-
409180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
509320-10015 CUSHIONCUSHION
-
616460-47F10 HOSE, OIL COOLER (RIGHT)HOSE, OIL COOLER (RIGHT)
-
716470-47F10 HOSE, OIL COOLER (LEFT)HOSE, OIL COOLER (LEFT)
-
809168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
909280-12012 O-RING (D:2.4,ID:11.8)O-RING (D:2.4,ID:11.8)
-
1009360-16002 BOLT (16X32)BOLT (16X32)
-
1107130-06163 BOLTBOLT
-
1216650-32F00 GUARD, OIL COOLERGUARD, OIL COOLER
-
1317765-09F00 ...PROTECTOR, CENTER...PROTECTOR, CENTER
-
1409352-30503-600 ...HOSE (3X5X600)...HOSE (3X5X600)
-
1516490-32F01 CLAMP, OIL HOSE (LEFT)CLAMP, OIL HOSE (LEFT)
-
1716492-32F00 GUIDE, OIL HOSE (LEFT)GUIDE, OIL HOSE (LEFT)
-
1816490-47F00 CLAMP, OIL HOSECLAMP, OIL HOSE
