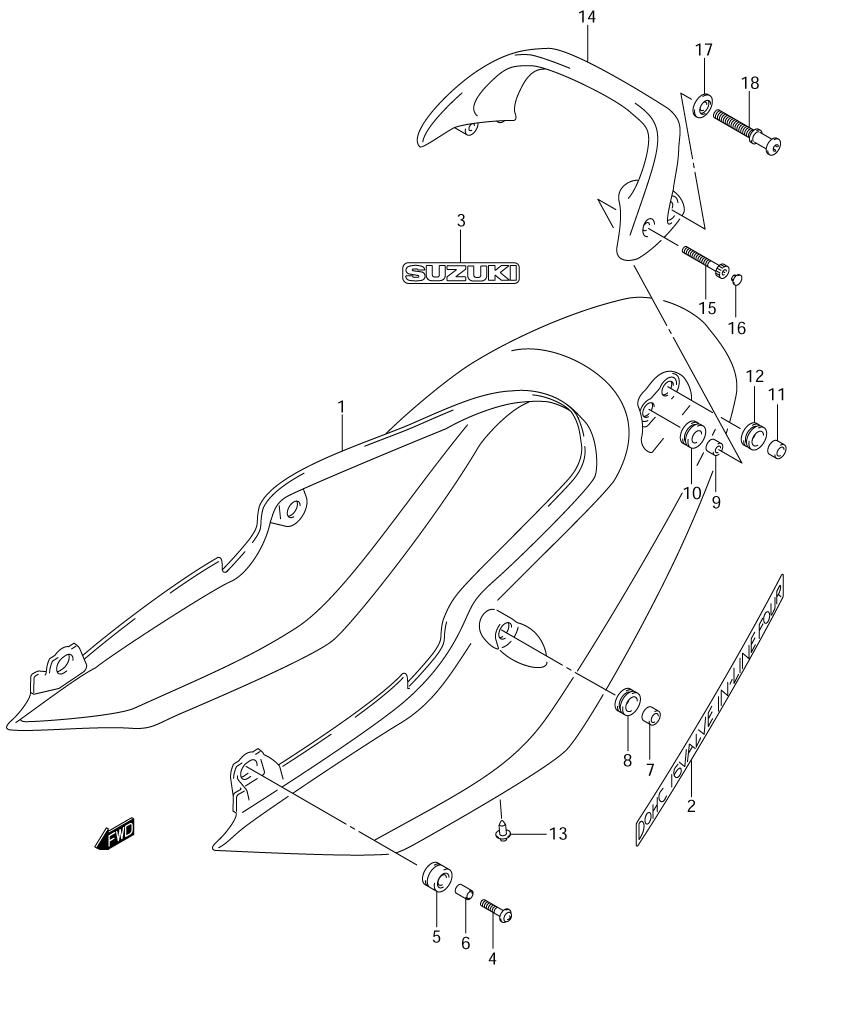

SEAT TAIL COVER для Suzuki GSF1200S K3 - 2003 года выпуска
-
№АртикулНазвание
-
1-145510-32F30-YV4 COVER, SEAT TAIL (YV4 - GREEN)COVER, SEAT TAIL (YV4 - GREEN)
-
1-245510-32F30-YD8 COVER, SEAT TAIL (YD8 - SILVER)COVER, SEAT TAIL (YD8 - SILVER)
-
1-345510-32F30-YAR COVER, SEAT TAIL (YAR - BLUE)COVER, SEAT TAIL (YAR - BLUE)
-
2-168131-32F10-LU5 ...EMBLEM, TAIL COVER (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)...EMBLEM, TAIL COVER (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)
-
2-268131-32F10-GW5 ...EMBLEM, TAIL COVER (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)...EMBLEM, TAIL COVER (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)
-
2-368131-32F10-LU6 ...EMBLEM, TAIL COVER (LU6 - SILVER/BLUE) (FOR YAR - BLUE)...EMBLEM, TAIL COVER (LU6 - SILVER/BLUE) (FOR YAR - BLUE)
-
3-168165-32F00-LU5 ...EMBLEM, "SUZUKI" (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)...EMBLEM, "SUZUKI" (LU5 - SILVER/GREEN) (FOR YV4 - GREEN)
-
3-268165-32F00-GW5 ...EMBLEM, "SUZUKI" (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)...EMBLEM, "SUZUKI" (GW5 - BLACK/SILVER) (FOR YD8 - SILVER)
-
3-368165-32F00-LU6 ...EMBLEM, "SUZUKI" (LU6 - SILVER/BLUE) (FOR YAR - BLUE)...EMBLEM, "SUZUKI" (LU6 - SILVER/BLUE) (FOR YAR - BLUE)
-
409136-06083 SCREW (FRONT) (6X30)SCREW (FRONT) (6X30)
-
547115-19F00 CUSHION (FRONT) (10X22X15)CUSHION (FRONT) (10X22X15)
-
609180-06291 SPACER (FRONT) (6.5X10X13)SPACER (FRONT) (6.5X10X13)
-
709180-08199 SPACER, CENTER (8.5X14X9)SPACER, CENTER (8.5X14X9)
-
809320-14023 CUSHION, CENTER (14X22X9.5)CUSHION, CENTER (14X22X9.5)
-
909180-06300 SPACER, RR-FR (6.5X12X9)SPACER, RR-FR (6.5X12X9)
-
1009320-12068 CUSHION, RR-FR (12X22X9.5)CUSHION, RR-FR (12X22X9.5)
-
1109180-08199 SPACER, RR-RR (8.5X14X9)SPACER, RR-RR (8.5X14X9)
-
1209320-14023 CUSHION, RR-RR (14X12X9.5)CUSHION, RR-RR (14X12X9.5)
-
1309409-06314-5PK CLIPCLIP
-
14-146211-32F00-YV4 HANDLE, PILLION RIDER (YV4 - GREEN)HANDLE, PILLION RIDER (YV4 - GREEN)
-
14-246211-32F00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)HANDLE, PILLION RIDER (YD8 - SILVER)
-
14-346211-32F00-YAR HANDLE, PILLION RIDER (YAR - BLUE)HANDLE, PILLION RIDER (YAR - BLUE)
-
1507120-06453 BOLTBOLT
-
1609250-05009 CAPCAP
-
1746317-31F00 WASHER, HOOKWASHER, HOOK
-
1846316-31F00 HOOK, HANDLEHOOK, HANDLE
