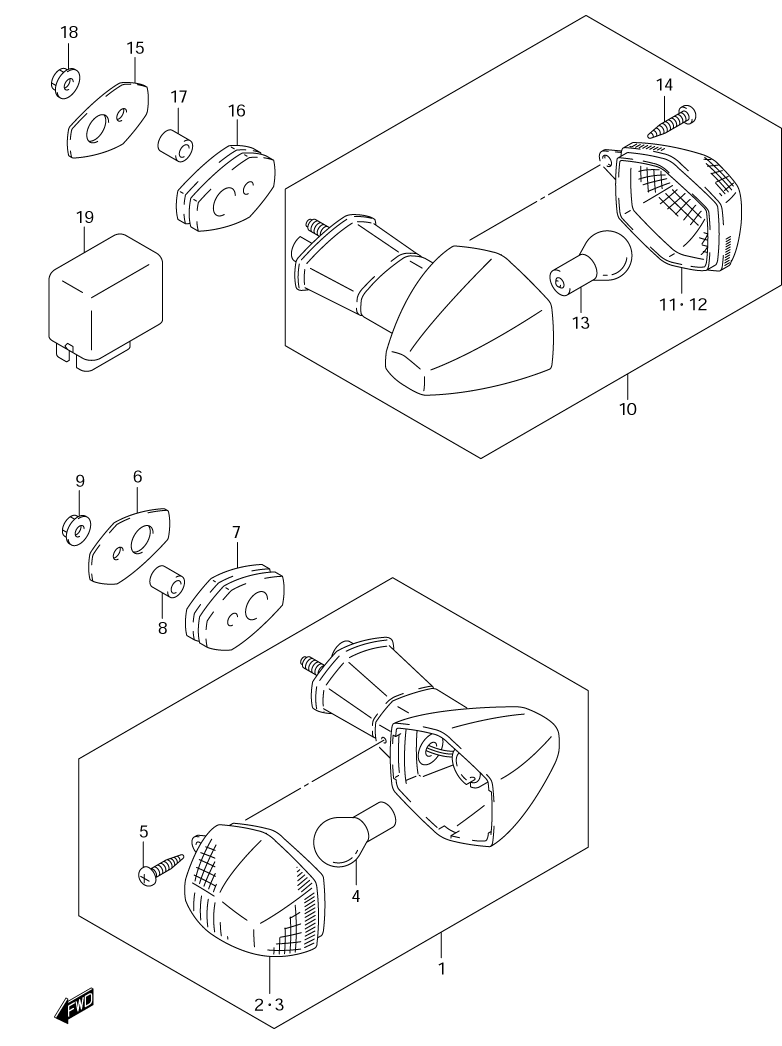

TURN SIGNAL ASSY. для Suzuki GSF600S K3 - 2003 года выпуска
-
№АртикулНазвание
-
1-135601-31F10 LAMP ASSY., TURN (FRONT/RIGHT)LAMP ASSY., TURN (FRONT/RIGHT)
-
1-235602-31F10 LAMP ASSY., TURN (FRONT/LEFT)LAMP ASSY., TURN (FRONT/LEFT)
-
235612-31F30 ...LENS (RIGHT)...LENS (RIGHT)
-
335632-31F30 ...LENS (LEFT)...LENS (LEFT)
-
409471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
503242-04163 ...SCREW...SCREW
-
635629-31F00 PLATE, TURN (FRONT)PLATE, TURN (FRONT)
-
735690-31F00 CUSHIONCUSHION
-
809180-05301 SPACER (5.5X9.5X10)SPACER (5.5X9.5X10)
-
908316-10053 NUTNUT
-
10-135603-31F30 LAMP ASSY., TURN (REAR/RIGHT)LAMP ASSY., TURN (REAR/RIGHT)
-
10-235604-31F30 LAMP ASSY., TURN (REAR/LEFT)LAMP ASSY., TURN (REAR/LEFT)
-
1135632-31F30 ...LENS (RIGHT)...LENS (RIGHT)
-
1235612-31F30 ...LENS (LEFT)...LENS (LEFT)
-
1309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1403242-04163 ...SCREW...SCREW
-
1535629-31F00 PLATE, TURN (REAR)PLATE, TURN (REAR)
-
1635690-31F00 CUSHIONCUSHION
-
1709180-05301 SPACER (5.5X9.5X10)SPACER (5.5X9.5X10)
-
1808316-10053 NUTNUT
-
1938610-03F00 RELAY ASSY., TURNSIGNALRELAY ASSY., TURNSIGNAL
