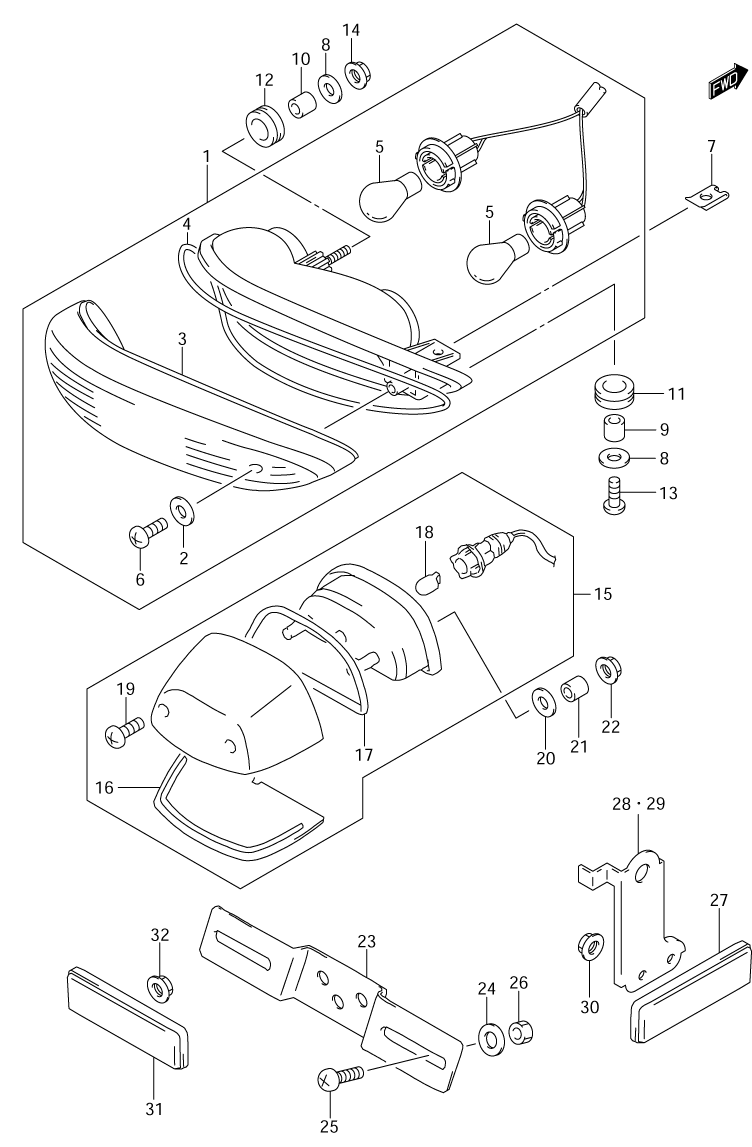

TAILLIGHT ASSY. для Suzuki TL-1000R K3 - 2003 года выпуска
-
№АртикулНазвание
-
135710-02F30 LAMP ASSY. (REAR) COMBINATIONLAMP ASSY. (REAR) COMBINATION
-
235627-43010 ...GASKET...GASKET
-
335712-02F30 ...LENS...LENS
-
435713-02F00 ...GASKET...GASKET
-
509471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
603211-04207 ...SCREW...SCREW
-
709148-05020 NUT (LOWER)NUT (LOWER)
-
809160-06088 WASHER (6.5X20X1.60)WASHER (6.5X20X1.60)
-
909180-06285 SPACER (LOWER) (6.5X10X9.0)SPACER (LOWER) (6.5X10X9.0)
-
1009180-06290 SPACER (CENTER) (6.5X10X12)SPACER (CENTER) (6.5X10X12)
-
1109320-09009 CUSHION (LOWER)CUSHION (LOWER)
-
1209320-09010 CUSHION (CENTER)CUSHION (CENTER)
-
1303541-05203 SCREW (REAR) COMBINATIONSCREW (REAR) COMBINATION
-
1408316-10063 NUT, COMBINATION (REAR/CENTER)NUT, COMBINATION (REAR/CENTER)
-
1535910-02F00 LAMP ASSY., LICENSELAMP ASSY., LICENSE
-
1635912-02F00 ...LENS...LENS
-
1735913-02F00 ...GASKET...GASKET
-
1809471-12081 ...BULB (12V,5W)...BULB (12V,5W)
-
1903211-04163 ...SCREW...SCREW
-
2009160-06088 WASHER (6.5X20X1.60)WASHER (6.5X20X1.60)
-
2109180-05054 SPACER (5.5X9.5X11.5)SPACER (5.5X9.5X11.5)
-
2208316-10053 NUTNUT
-
2335927-48B30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
2409160-06088 WASHER (6.5X20X1.60)WASHER (6.5X20X1.60)
-
2502142-06203 SCREWSCREW
-
2608316-10063 NUTNUT
-
2735970-07F00 REFLEX REFLECTOR ASSY. (REAR)REFLEX REFLECTOR ASSY. (REAR)
-
2835975-02F10 BRACKET (REAR/RIGHT)BRACKET (REAR/RIGHT)
-
2935976-02F10 BRACKET (REAR/LEFT)BRACKET (REAR/LEFT)
-
3008310-00053 NUTNUT
-
3135970-07F00 REFLEX REFLECTOR (REAR)REFLEX REFLECTOR (REAR)
-
3208316-10053 NUTNUT
