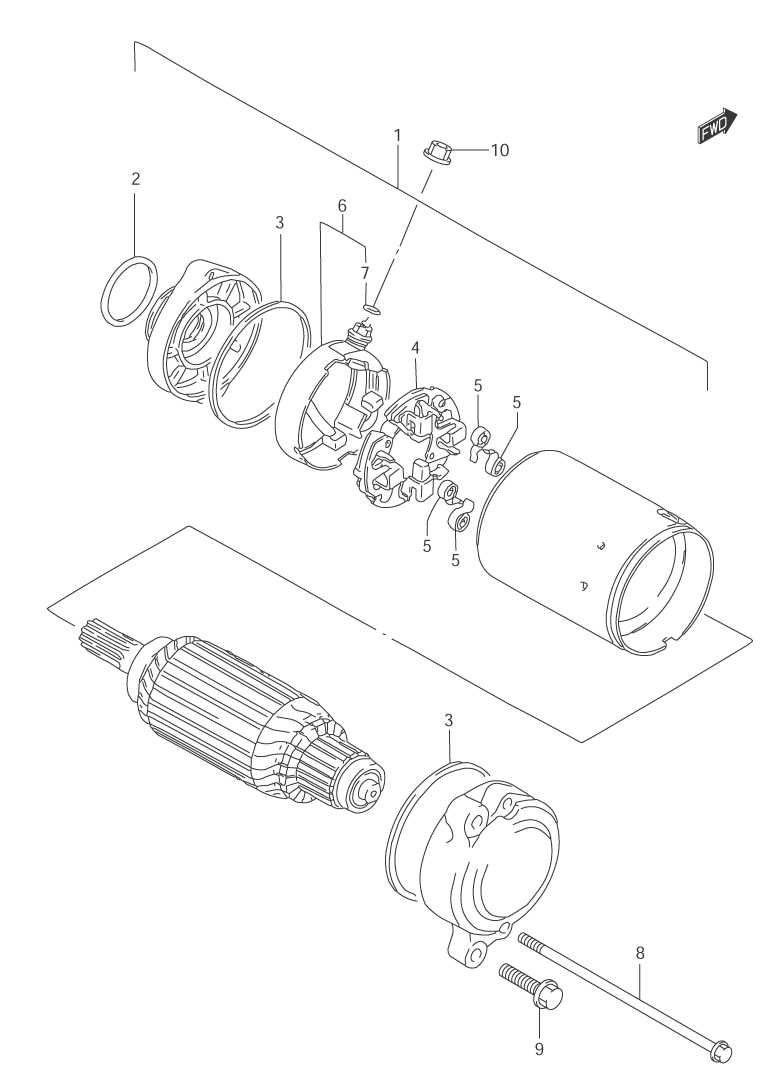

STARTING MOTOR для Suzuki VL1500 K3 - 2003 года выпуска
-
№АртикулНазвание
-
131100-10F00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231156-38B00 ...O-RING (D:2.1,ID:34.7)...O-RING (D:2.1,ID:34.7)
-
331264-31300 ...O-RING...O-RING
-
431132-38B00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
531135-38B00 ...SPRING, BRUSH...SPRING, BRUSH
-
631130-38B00 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
731143-49040 ......O-RING......O-RING
-
831281-24B10 ...BOLT...BOLT
-
901547-06257 BOLTBOLT
-
1008361-35068 NUTNUT
