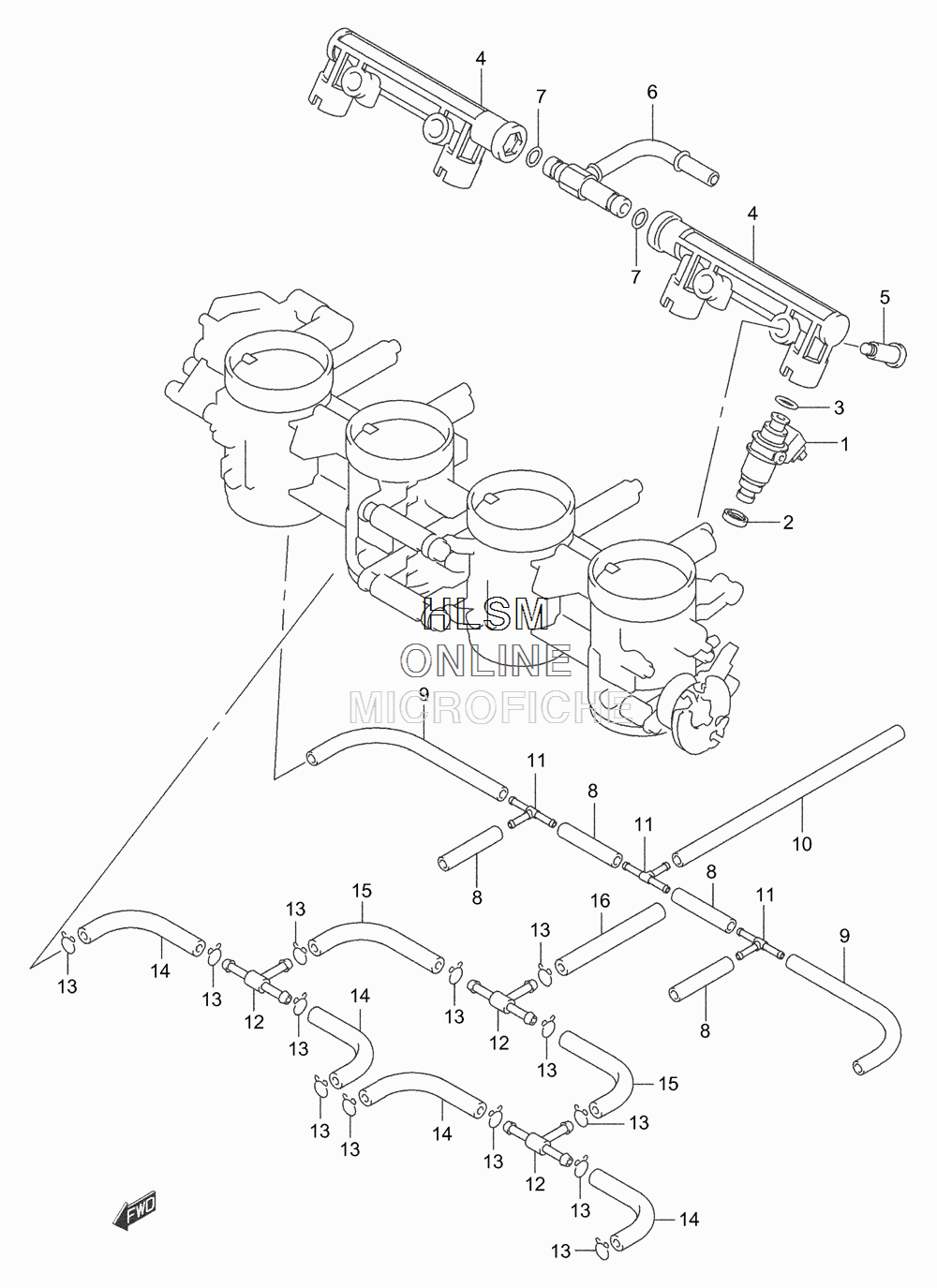

CARBURETOR - THROTTLE BODY FITTINGS для Suzuki GSX-R1000 K4 - 2004 года выпуска
-
№АртикулНазвание
-
115710-10G00 INJECTOR ASSYINJECTOR ASSY
-
215722-10G00 RING, CUSHIONRING, CUSHION
-
315721-10G00 O RINGO RING
-
413471-18G00 PIPE, FUELPIPE, FUEL
-
513601-35F00 SCREWSCREW
-
613473-35F01 JOINTJOINT
-
715721-24F00 O RINGO RING
-
813697-24F00 HOSE (3X7X35)HOSE (3X7X35)
-
913697-24F20 HOSE (3X7X100)HOSE (3X7X100)
-
1013697-35F00 HOSE (3X7X170)HOSE (3X7X170)
-
1113471-24F30 3 WAY3 WAY
-
1213471-40F50 JOINT (CALIF ONLY)JOINT (CALIF ONLY)
-
1313671-26E20 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
1413681-40F50 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
1513682-40F50 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
1613683-40F50 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
