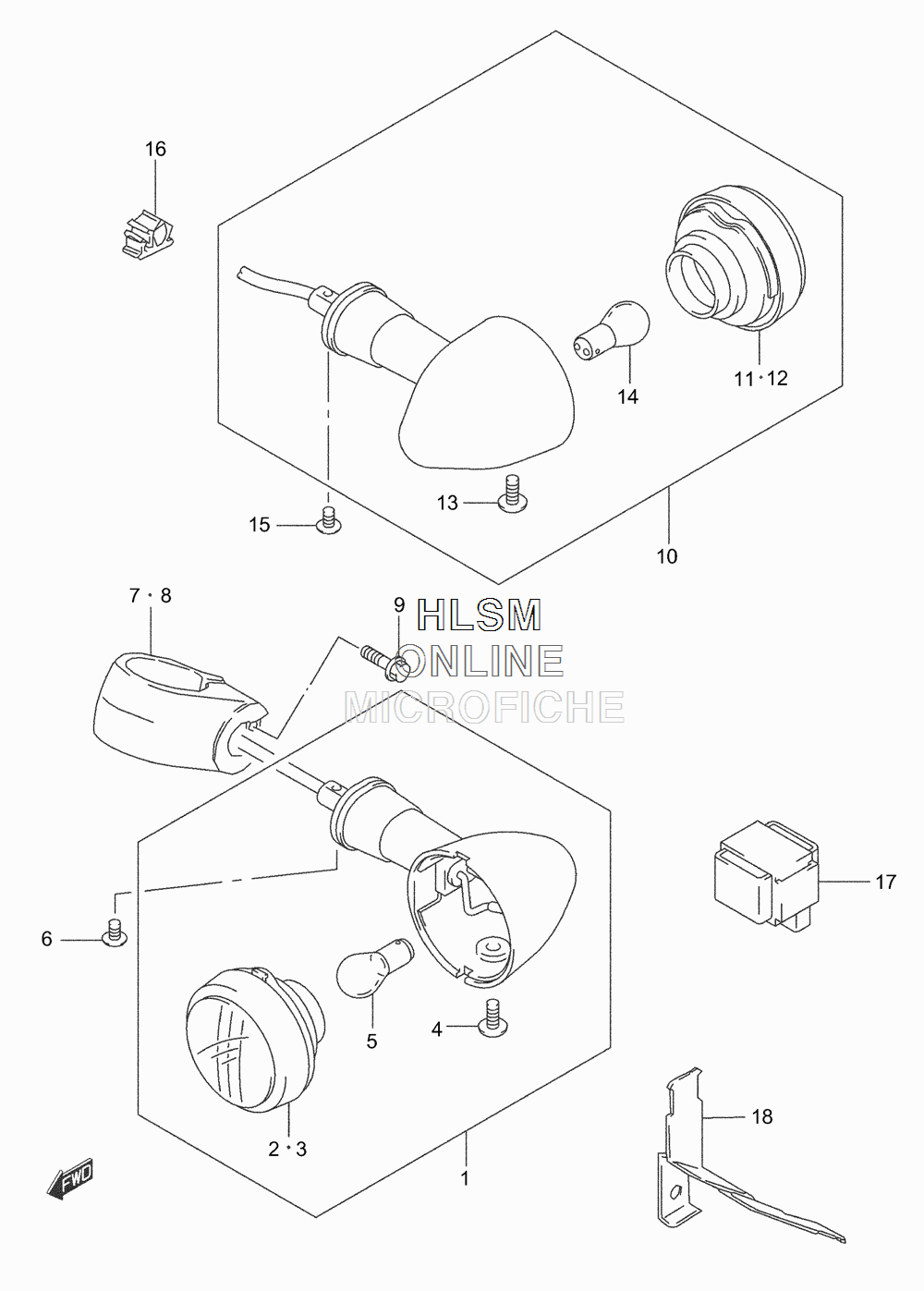

TURN SIGNAL ASSY. для Suzuki LS650P K4 - 2004 года выпуска
-
№АртикулНазвание
-
135601-38AB0 LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2-5)LAMP ASSY, FRONT TURN, RIGHT HAND (INCL. 2-5)
-
135602-38AB0 LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 2-5)LAMP ASSY, FRONT TURN, LEFT HAND (INCL. 2-5)
-
235610-38AA0 LENSLENS
-
335630-38AA0 LENSLENS
-
435623-39AA0 SCREWSCREW
-
509471-12083 BULB (12V,21/8W)BULB (12V,21/8W)
-
602142-06107 SCREWSCREW
-
735671-24B00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
835681-24B00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
901547-05257 BOLTBOLT
-
1035603-38AA0 LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 11-14)LAMP ASSY, REAR TURN, RIGHT HAND (INCL. 11-14)
-
1035604-38AA0 LAMP ASSY, REAR TURN, LEFT HAND (INCL. 11-14)LAMP ASSY, REAR TURN, LEFT HAND (INCL. 11-14)
-
1135630-38AA0 LENSLENS
-
1235610-38AA0 LENSLENS
-
1335623-38AA0 SCREWSCREW
-
1409471-12045 BULB (12V,21W)BULB (12V,21W)
-
1502142-06167 SCREWSCREW
-
1609403-07315 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
1738610-26E00 RELAY, TURN SIGNALRELAY, TURN SIGNAL
-
1838621-24B10 BRACKET, TURN SIGNAL RELAYBRACKET, TURN SIGNAL RELAY
