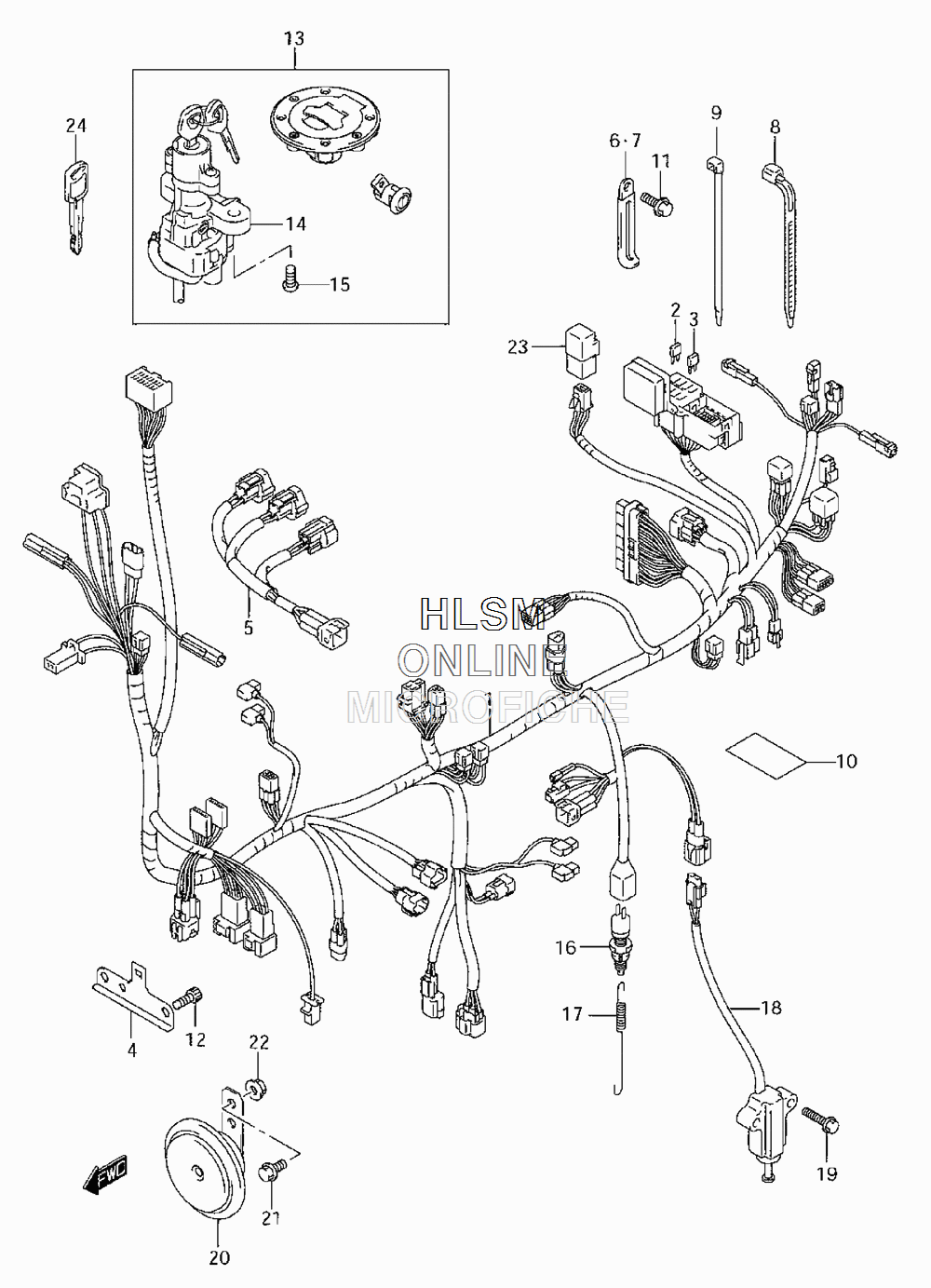

ELECTRICAL - WIRING HARNESS для Suzuki SV650 K4 - 2004 года выпуска
-
№АртикулНазвание
-
136610-17GB0 HARNESS, WIRING (INC. 2-3)HARNESS, WIRING (INC. 2-3)
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436687-17G00 HOLDER, COUPLERHOLDER, COUPLER
-
536859-16G00 WIRE, INJECTOR LEADWIRE, INJECTOR LEAD
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
609404-06433 CLAMP (L:80)CLAMP (L:80)
-
709404-08207 CLAMP (L:80)CLAMP (L:80)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-14407 CLAMP (L:145)CLAMP (L:145)
-
1036611-16G00 PROTECTOR (28X50X0.5)PROTECTOR (28X50X0.5)
-
1101550-06103 BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1207130-06103 SCREW, WIRING HARNESSSCREW, WIRING HARNESS
-
1337000-16820 LOCK SETLOCK SET
-
1337000-16830 LOCK SET (INC. 14)LOCK SET (INC. 14)
-
1437100-16G20 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1509139-08016 BOLT (8X20)BOLT (8X20)
-
1637740-24A00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1709443-06016 SPRINGSPRING
-
1837840-26X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1909103-06211 BOLT (6X25)BOLT (6X25)
-
2038500-17G00 HORN ASSYHORN ASSY
-
2101550-08123 BOLT, HORNBOLT, HORN
-
2208316-10083 NUT, HORNNUT, HORN
-
2338740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2437146-33E00 KEY, BLANKKEY, BLANK
