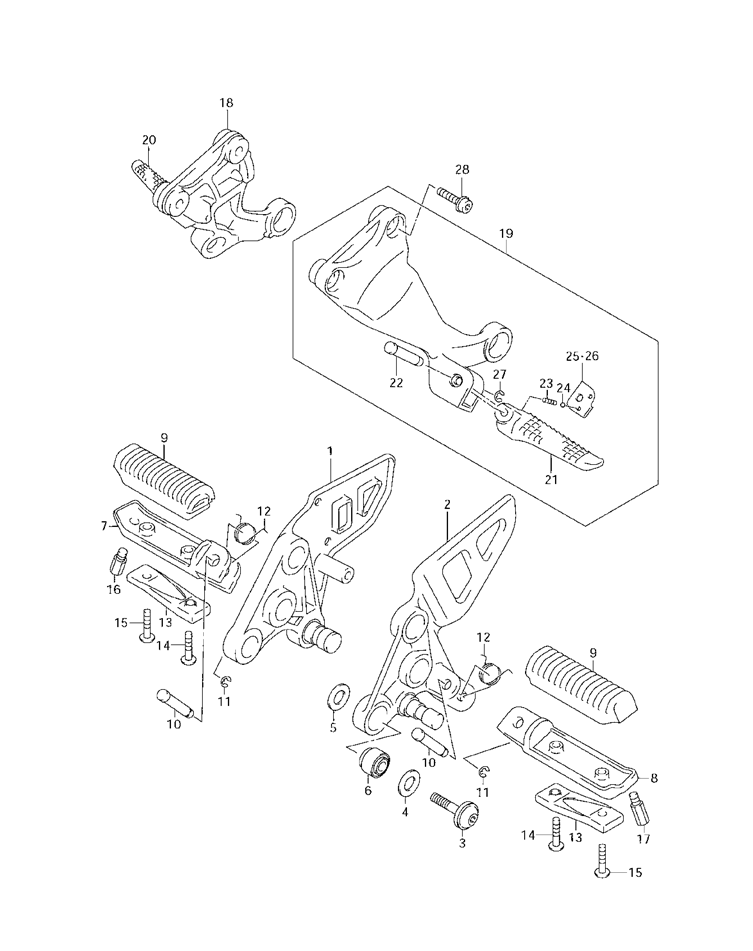

FOOTREST для Suzuki GSX-1300R K5 LTD - 2005 года выпуска
-
№АртикулНазвание
-
143510-24F00 BRACKET, FRONT FOOTREST RIGHT HANDBRACKET, FRONT FOOTREST RIGHT HAND
-
243521-24F00 BRACKET, FRONT FOOTREST LEFT HANDBRACKET, FRONT FOOTREST LEFT HAND
-
309106-08147 BOLT, BRACKETBOLT, BRACKET
-
409161-13004 WASHER, OUTERWASHER, OUTER
-
509161-17002 WASHER, INNERWASHER, INNER
-
609319-08045 BUSHBUSH
-
743531-24F00 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
843541-24F00 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
943550-24F00 RUBBERRUBBER
-
1009208-08016 PINPIN
-
1108332-11063 E RINGE RING
-
1209448-18022 SPRINGSPRING
-
1343536-31E20 BALANCERBALANCER
-
1402142-05353 SCREW, INNERSCREW, INNER
-
1502142-05253 SCREW, OUTERSCREW, OUTER
-
1643576-48B02 BOLT, BANK SENS0R RIGHT HANDBOLT, BANK SENS0R RIGHT HAND
-
1743576-48B20 BOLT, BANK SENSOR LEFT HANDBOLT, BANK SENSOR LEFT HAND
-
1843600-24F00 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
1943700-24F00 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
2043610-33E11 BAR, PILLION RIGHT HANDBAR, PILLION RIGHT HAND
-
2143620-33E11 BAR, PILLION LEFT HANDBAR, PILLION LEFT HAND
-
2209208-06007 PINPIN
-
2309440-05005 SPRINGSPRING
-
2406111-07004 STEEL BALL 7/32STEEL BALL 7/32
-
2543816-33E21 PLATE, RIGHT HANDPLATE, RIGHT HAND
-
2643826-33E22 PLATE, LEFT HANDPLATE, LEFT HAND
-
2708332-11043 E RINGE RING
-
2809106-08121 BOLT, BRACKETBOLT, BRACKET
