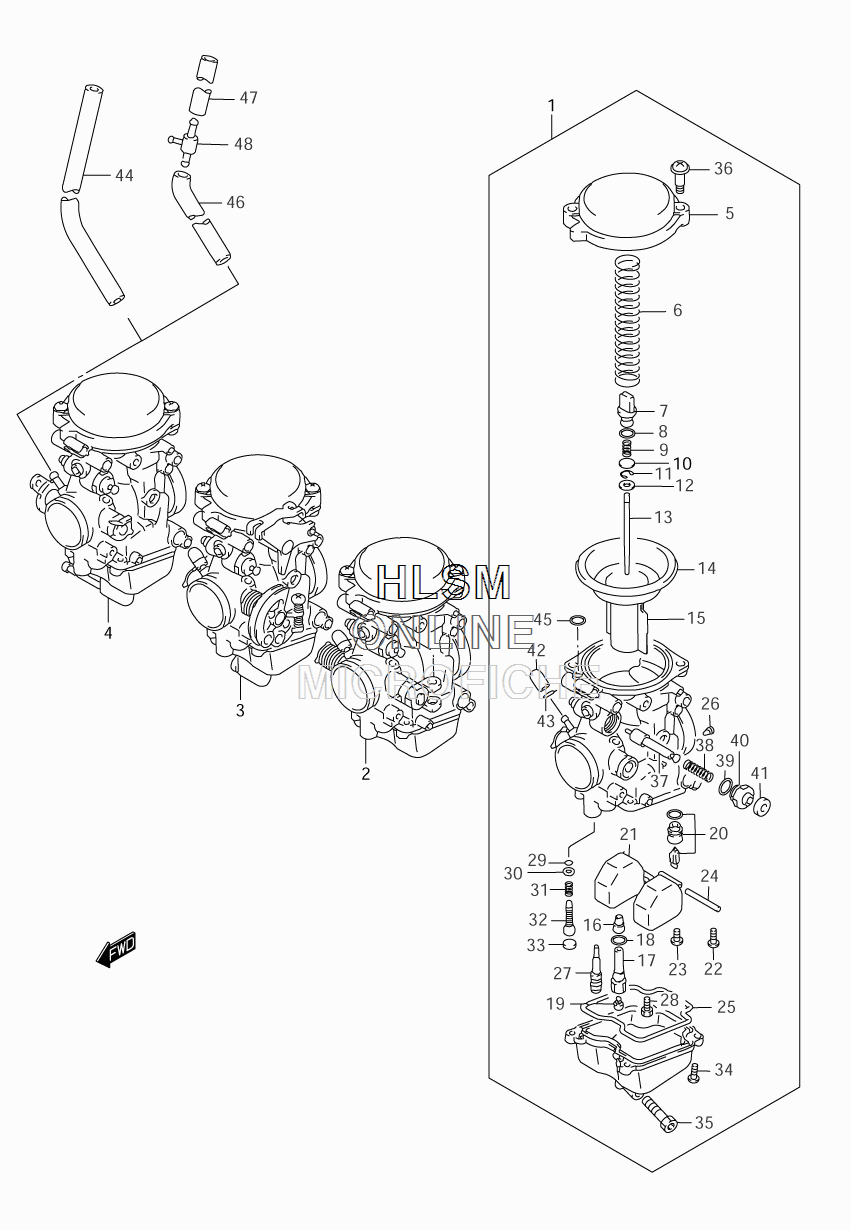

CARBURETOR ASSY. для Suzuki GSX750F K5 - 2005 года выпуска
-
№АртикулНазвание
-
113201-08F31 CARBURETOR ASSY, LEFT HANDCARBURETOR ASSY, LEFT HAND
-
113201-08F41 CARBURETOR ASSY, LEFT HAND (CALIF ONLY)CARBURETOR ASSY, LEFT HAND (CALIF ONLY)
-
213202-08F31 CARBURETOR ASSY, MIDDLE LEFTCARBURETOR ASSY, MIDDLE LEFT
-
213202-08F41 CARBURETOR ASSY, MIDDLE LEFT (CALIF ONLY)CARBURETOR ASSY, MIDDLE LEFT (CALIF ONLY)
-
313203-08F31 CARBURETOR ASSY, MIDDLE RIGHTCARBURETOR ASSY, MIDDLE RIGHT
-
313203-08F41 CARBURETOR ASSY, MIDDLE RIGHT (CALIF ONLY)CARBURETOR ASSY, MIDDLE RIGHT (CALIF ONLY)
-
413204-08F31 CARBURETOR ASSY, RIGHT HANDCARBURETOR ASSY, RIGHT HAND
-
413204-08F41 CARBURETOR ASSY, RIGHT HAND (CALIF ONLY)CARBURETOR ASSY, RIGHT HAND (CALIF ONLY)
-
513502-08F00 DIAPHRAGM COVERDIAPHRAGM COVER
-
613573-33E00 SPRINGSPRING
-
713418-33E00 HOLDERHOLDER
-
809280-05004 O RINGO RING
-
913481-33E00 SPRINGSPRING
-
1013382-19E00 WASHERWASHER
-
1113394-17E60 E RING, MULTIPLE JET NOZZLEE RING, MULTIPLE JET NOZZLE
-
1213387-44030 RINGRING
-
1313383-08F30 NEEDLE, JET (5DF21-53-1)NEEDLE, JET (5DF21-53-1)
-
1313383-08F40 NEEDLE, JET (5DF22-53-1) (CALIF ONLY)NEEDLE, JET (5DF22-53-1) (CALIF ONLY)
-
1413507-17C01 DIAPHRAGMDIAPHRAGM
-
1513501-08F00 VALVE, PISTONVALVE, PISTON
-
1609494-00921 JET, NEEDLE (P-0M)JET, NEEDLE (P-0M)
-
1713385-08F00 HOLDER, JETHOLDER, JET
-
1813246-43010 O RINGO RING
-
1909491-23019 JET, MAIN (117.5)JET, MAIN (117.5)
-
2013370-08F50 VALVE ASSY, NEEDLE (2.5)VALVE ASSY, NEEDLE (2.5)
-
2113250-04F00 FLOAT ASSYFLOAT ASSY
-
2202112-04083 SCREWSCREW
-
2313602-05A10 SCREWSCREW
-
2413254-01010 PIN, FLOATPIN, FLOAT
-
2513258-04F00 GASKETGASKET
-
2609493-28013 JET, PILOT AIR (140)JET, PILOT AIR (140)
-
2609492-26002 JET, PILOT AIR (130) (CALIF ONLY)JET, PILOT AIR (130) (CALIF ONLY)
-
2709492-12008 JET, PILOT (15)JET, PILOT (15)
-
2809491-50006 JET, STARTERJET, STARTER
-
2913295-29900 O RINGO RING
-
3013291-29900 WASHERWASHER
-
3113268-48700 SPRINGSPRING
-
3213279-33E00 ADJUSTER (3,0)ADJUSTER (3,0)
-
3213279-33E00 ADJUSTER (3,1/2) (CALIF ONLY)ADJUSTER (3,1/2) (CALIF ONLY)
-
3313281-05A00 PLUGPLUG
-
3402112-04107 SCREWSCREW
-
3513247-13A00 SCREW, DRAINSCREW, DRAIN
-
3613247-33E00 SCREWSCREW
-
3713411-05300 PLUNGERPLUNGER
-
3813417-26D00 SPRINGSPRING
-
3913278-47090 O RINGO RING
-
4013418-44080 HOLDER, GUIDEHOLDER, GUIDE
-
4113682-31210 CAP, STARTER VALVECAP, STARTER VALVE
-
4213274-84000 CAPCAP
-
4309401-06101 CLIPCLIP
-
4409355-50105-600 HOSEHOSE
-
4513295-33010 O RINGO RING
-
4609352-50901-600 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
4709352-50903-600 HOSE (CALIF ONLY)HOSE (CALIF ONLY)
-
4813685-48B00 NIPPLE (CALIF ONLY)NIPPLE (CALIF ONLY)
