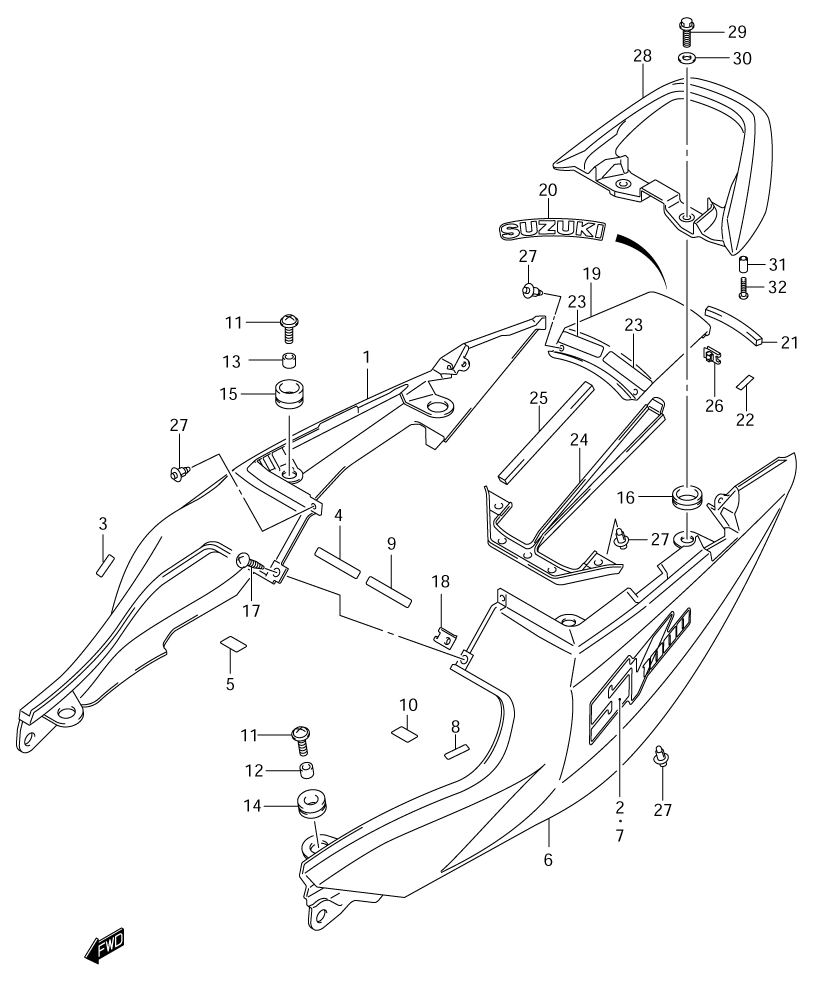

SEAT TAIL COVER (CANADA ONLY) для Suzuki SV1000 K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-145501-16G30-YAY COVER, SEAT TAIL, R (YAY - BLACK)COVER, SEAT TAIL, R (YAY - BLACK)
-
1-245501-16G30-YD8 COVER, SEAT TAIL, R (YD8 - SILVER)COVER, SEAT TAIL, R (YD8 - SILVER)
-
1-345501-16G30-YU7 COVER, SEAT TAIL, R (YU7 - RED)COVER, SEAT TAIL, R (YU7 - RED)
-
2-168161-16G20-BRS ...EMBLEM, SEAT TAIL COVER (BRS - SILVER/SILVER MET./WHITE/BLACK) (FOR YAY - BLACK)...EMBLEM, SEAT TAIL COVER (BRS - SILVER/SILVER MET./WHITE/BLACK) (FOR YAY - BLACK)
-
2-268161-16G20-BRW ...EMBLEM, SEAT TAIL COVER (BRW - BLACK/SILVER/GRAY/SILVER) (FOR YD8 - SILVER)...EMBLEM, SEAT TAIL COVER (BRW - BLACK/SILVER/GRAY/SILVER) (FOR YD8 - SILVER)
-
2-368161-16G20-BRU ...EMBLEM, SEAT TAIL COVER (BRU - BLACK/SILVER/MED GRAY MET/RED) (FOR YU7 - RED)...EMBLEM, SEAT TAIL COVER (BRU - BLACK/SILVER/MED GRAY MET/RED) (FOR YU7 - RED)
-
345516-42F00 ...TAPE, SEAT TAIL COVER FR...TAPE, SEAT TAIL COVER FR
-
445517-16G10 ...TAPE, SEAT TAIL COVER FR NO....TAPE, SEAT TAIL COVER FR NO.
-
547161-10D00 ...TAPE, SEAT TAIL COVER FR NO....TAPE, SEAT TAIL COVER FR NO.
-
6-145502-16G30-YAY COVER, SEAT TAIL, L (YAY - BLACK)COVER, SEAT TAIL, L (YAY - BLACK)
-
6-245502-16G30-YD8 COVER, SEAT TAIL, L (YD8 - SILVER)COVER, SEAT TAIL, L (YD8 - SILVER)
-
6-345502-16G30-YU7 COVER, SEAT TAIL, L (YU7 - RED)COVER, SEAT TAIL, L (YU7 - RED)
-
7-168161-16G20-BRS ...EMBLEM, SEAT TAIL COVER (BRS - SILVER/SILVER MET./WHITE/BLACK) (FOR YAY - BLACK)...EMBLEM, SEAT TAIL COVER (BRS - SILVER/SILVER MET./WHITE/BLACK) (FOR YAY - BLACK)
-
7-268161-16G20-BRW ...EMBLEM, SEAT TAIL COVER (BRW - BLACK/SILVER/GRAY/SILVER) (FOR YD8 - SILVER)...EMBLEM, SEAT TAIL COVER (BRW - BLACK/SILVER/GRAY/SILVER) (FOR YD8 - SILVER)
-
7-368161-16G20-BRU ...EMBLEM, SEAT TAIL COVER (BRU - BLACK/SILVER/MED GRAY MET/RED) (FOR YU7 - RED)...EMBLEM, SEAT TAIL COVER (BRU - BLACK/SILVER/MED GRAY MET/RED) (FOR YU7 - RED)
-
845516-42F00 ...TAPE, SEAT TAIL COVER FR...TAPE, SEAT TAIL COVER FR
-
945517-16G10 ...TAPE, SEAT TAIL COVER FR NO....TAPE, SEAT TAIL COVER FR NO.
-
1047161-10D00 ...TAPE, SEAT TAIL COVER FR NO....TAPE, SEAT TAIL COVER FR NO.
-
1109136-06082 SCREWSCREW
-
1209180-06286 SPACER (FRONT)SPACER (FRONT)
-
1309180-06286 SPACER (CENTER)SPACER (CENTER)
-
1409320-10052 CUSHION (FRONT)CUSHION (FRONT)
-
1547115-16G00 CUSHION (CENTER)CUSHION (CENTER)
-
1609320-20010 CUSHION (REAR)CUSHION (REAR)
-
1703241-15123 SCREWSCREW
-
1809148-05038 NUTNUT
-
19-145503-16G00-YAY COVER, SEAT TAIL CENTER (YAY - BLACK) (FOR YAY - BLACK)COVER, SEAT TAIL CENTER (YAY - BLACK) (FOR YAY - BLACK)
-
19-245503-16G00-YMX COVER, SEAT TAIL CENTER (YMX - SILVER) (FOR YD8 - SILVER)COVER, SEAT TAIL CENTER (YMX - SILVER) (FOR YD8 - SILVER)
-
19-345503-16G00-YU7 COVER, SEAT TAIL CENTER (YU7 - RED) (FOR YU7 - RED)COVER, SEAT TAIL CENTER (YU7 - RED) (FOR YU7 - RED)
-
20-168161-16G00-YD8 ...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)...EMBLEM, "SUZUKI" (YD8 - SILVER) (FOR Y7H - BLUE, YU7 - RED)
-
20-268161-16G00-17U ...EMBLEM, "SUZUKI" (17U - GRAY MET) (FOR YD8 - SILVER)...EMBLEM, "SUZUKI" (17U - GRAY MET) (FOR YD8 - SILVER)
-
2145518-16G00 ...CUSHION...CUSHION
-
2245517-16G00 ...TAPE, SEAT TAIL COVER...TAPE, SEAT TAIL COVER
-
2345516-42F00 ...TAPE...TAPE
-
24-145514-16G00-YAY COVER, SEAT TAIL, REAR (YAY - BLACK)COVER, SEAT TAIL, REAR (YAY - BLACK)
-
24-245514-16G00-YD8 COVER, SEAT TAIL, REAR (YD8 - SILVER)COVER, SEAT TAIL, REAR (YD8 - SILVER)
-
24-345514-16G00-YU7 COVER, SEAT TAIL, REAR (YU7 - RED)COVER, SEAT TAIL, REAR (YU7 - RED)
-
2545519-16G00 CUSHION, SEAT TAIL COVER RRCUSHION, SEAT TAIL COVER RR
-
2609148-06018 NUTNUT
-
2709409-06314-5PK CLIP (5PK - BLACK)CLIP (5PK - BLACK)
-
28-146211-16G00-YAY HANDLE, PILLION RIDER (YAY - BLACK)HANDLE, PILLION RIDER (YAY - BLACK)
-
28-246211-16G00-YD8 HANDLE, PILLION RIDER (YD8 - SILVER)HANDLE, PILLION RIDER (YD8 - SILVER)
-
28-346211-16G00-YU7 HANDLE, PILLION RIDER (YU7 - RED)HANDLE, PILLION RIDER (YU7 - RED)
-
2901551-08403 BOLTBOLT
-
3009160-08501 WASHERWASHER
-
3109180-06271 SPACERSPACER
-
3209139-06112 SCREWSCREW
