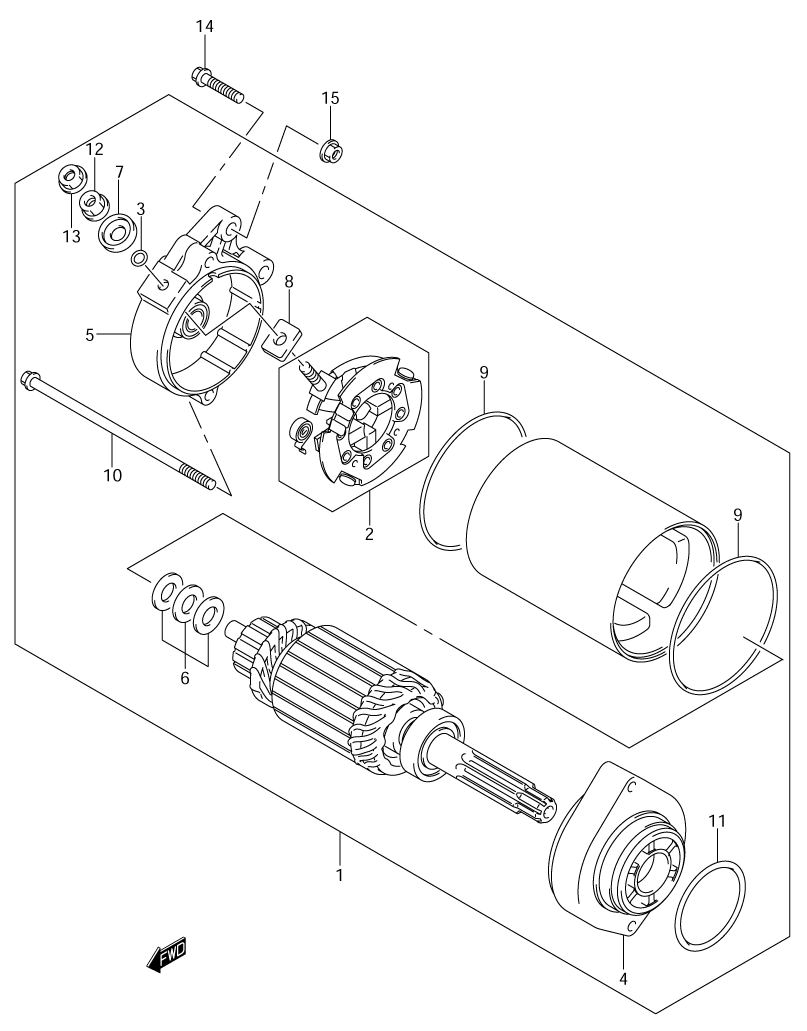

STARTING MOTOR для Suzuki SV1000S K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-231100-06G01 MOTOR ASSY., STARTINGMOTOR ASSY., STARTING
-
231132-45C00 ...HOLDER SET, BRUSH...HOLDER SET, BRUSH
-
331143-38300 ...O-RING...O-RING
-
431150-44B10 ...HOUSING...HOUSING
-
531170-02F10 ...FRAME...FRAME
-
631170-43400 ...SHIM SET...SHIM SET
-
731172-38300 ...BUSHING...BUSHING
-
831173-88C00 ...BUSHING...BUSHING
-
931264-44110 ...O-RING...O-RING
-
1031281-24B10 ...BOLT...BOLT
-
1131156-48B00 ...O-RING...O-RING
-
1208310-00067 ...NUT...NUT
-
1308361-35068 ...NUT...NUT
-
1409103-06212 BOLT (6X25)BOLT (6X25)
-
1508361-35068 NUTNUT
