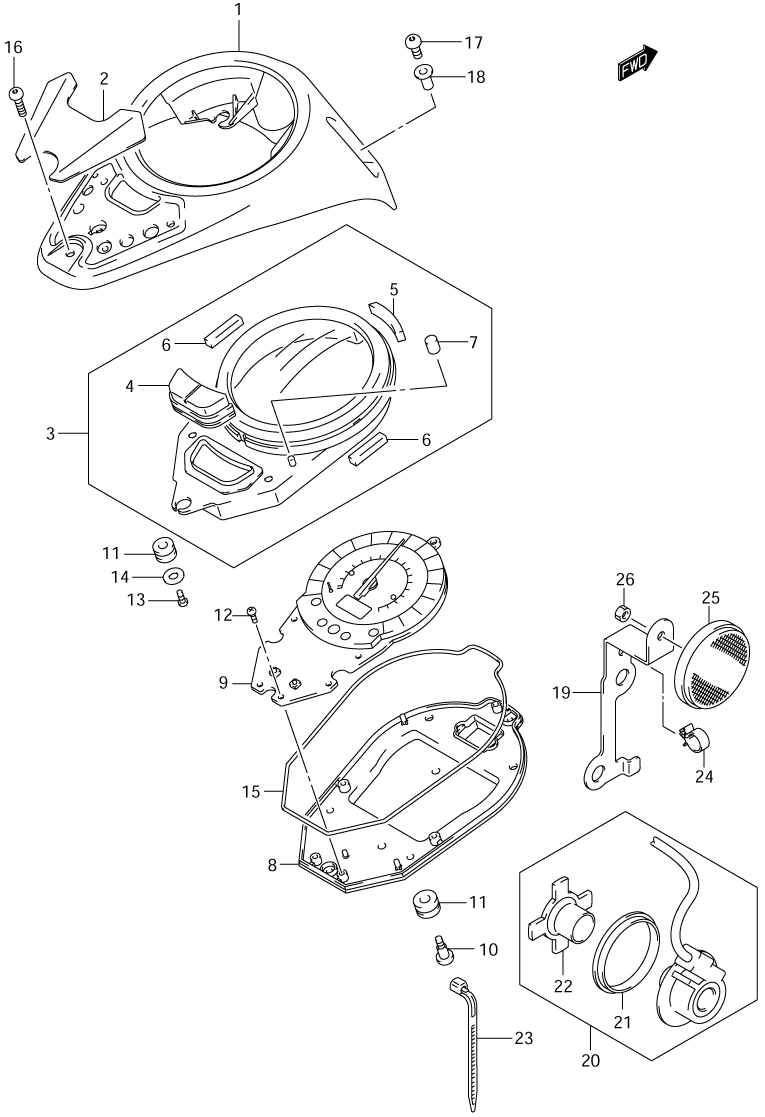

SPEEDOMETER для Suzuki VL800 K5 - 2005 года выпуска
-
№АртикулНазвание
-
134150-41F00 CASE ASSY.CASE ASSY.
-
234157-41FA0 PLATE, DECORATIONPLATE, DECORATION
-
334151-41F00 CASE ASSY.CASE ASSY.
-
434141-41F00 ...SWITCH, SELECT...SWITCH, SELECT
-
534196-41F00 ...CUSHION, NO.1...CUSHION, NO.1
-
634196-41F10 ...CUSHION, NO.2...CUSHION, NO.2
-
734961-41F00 ...CUSHION, NO.4...CUSHION, NO.4
-
834152-41F00 CASE, LOWERCASE, LOWER
-
9-134120-41FB0 SPEEDOMETER (MILE/KILO) (US)SPEEDOMETER (MILE/KILO) (US)
-
9-234120-41FA0 SPEEDOMETER (KILO) (CANADA)SPEEDOMETER (KILO) (CANADA)
-
1034186-41F00 BOLTBOLT
-
1134996-43410 CUSHION, NO.3CUSHION, NO.3
-
1234183-14F00 SCREWSCREW
-
1334149-16B00 SCREWSCREW
-
1434181-21D00 WASHERWASHER
-
1534153-41F00 GASKET, METER CASEGASKET, METER CASE
-
1609139-05025 SCREW (5X14)SCREW (5X14)
-
1709139-05032 SCREW (5X18)SCREW (5X18)
-
1809159-05019 NUTNUT
-
1934938-41F30 GUIDEGUIDE
-
2034990-41F10 SENSOR, SPEEDSENSOR, SPEED
-
2109286-44001 ...SEAL...SEAL
-
2234983-27G00 ...MAGNET...MAGNET
-
2309407-14407 CLAMP (L:145)CLAMP (L:145)
-
2409403-06410 CLIP, SENSOR LEADCLIP, SENSOR LEAD
-
2535950-14A00 REFLEX-REFLECTOR ASSY., FR SIDREFLEX-REFLECTOR ASSY., FR SID
-
2608316-10053 NUTNUT
