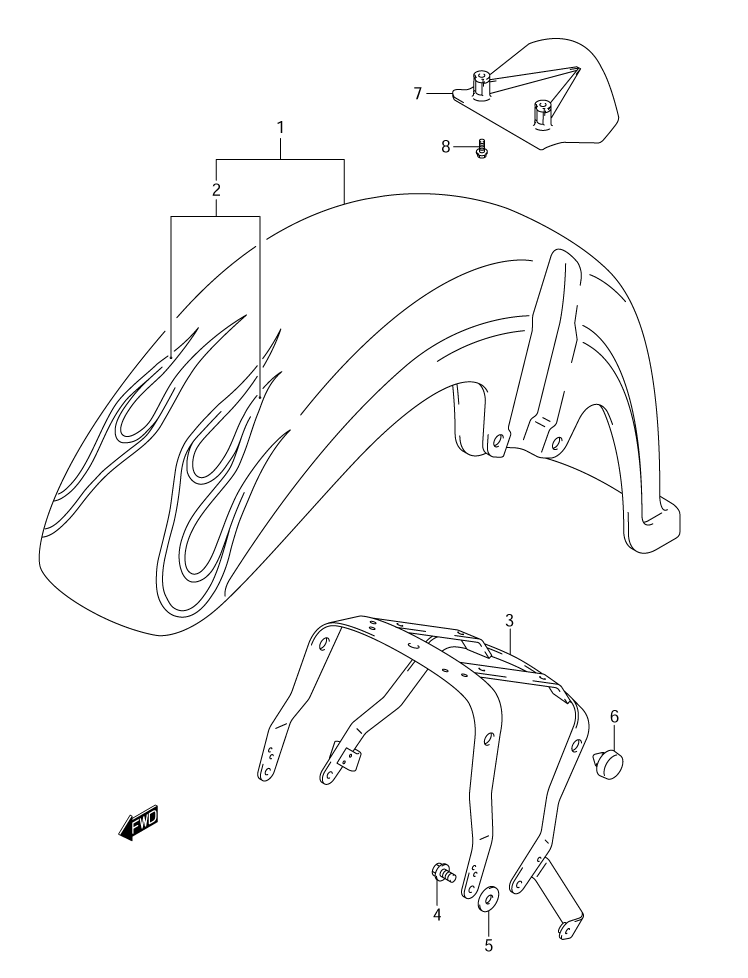

FENDER - FRONT для Suzuki VL800Z K5 - 2005 года выпуска
-
№АртикулНазвание
-
1-253110-41F50-YU7 FENDER, FRONT (YU7 - RED)FENDER, FRONT (YU7 - RED)
-
2-268150-41F30-CEN ...TAPE SET (CEN - RED/RED)...TAPE SET (CEN - RED/RED)
-
353120-41F10 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
401550-06203 BOLTBOLT
-
553276-41F00 WASHERWASHER
-
609321-10007 CUSHIONCUSHION
-
753181-41F00 WING, FRONTWING, FRONT
-
809113-06001 BOLTBOLT
