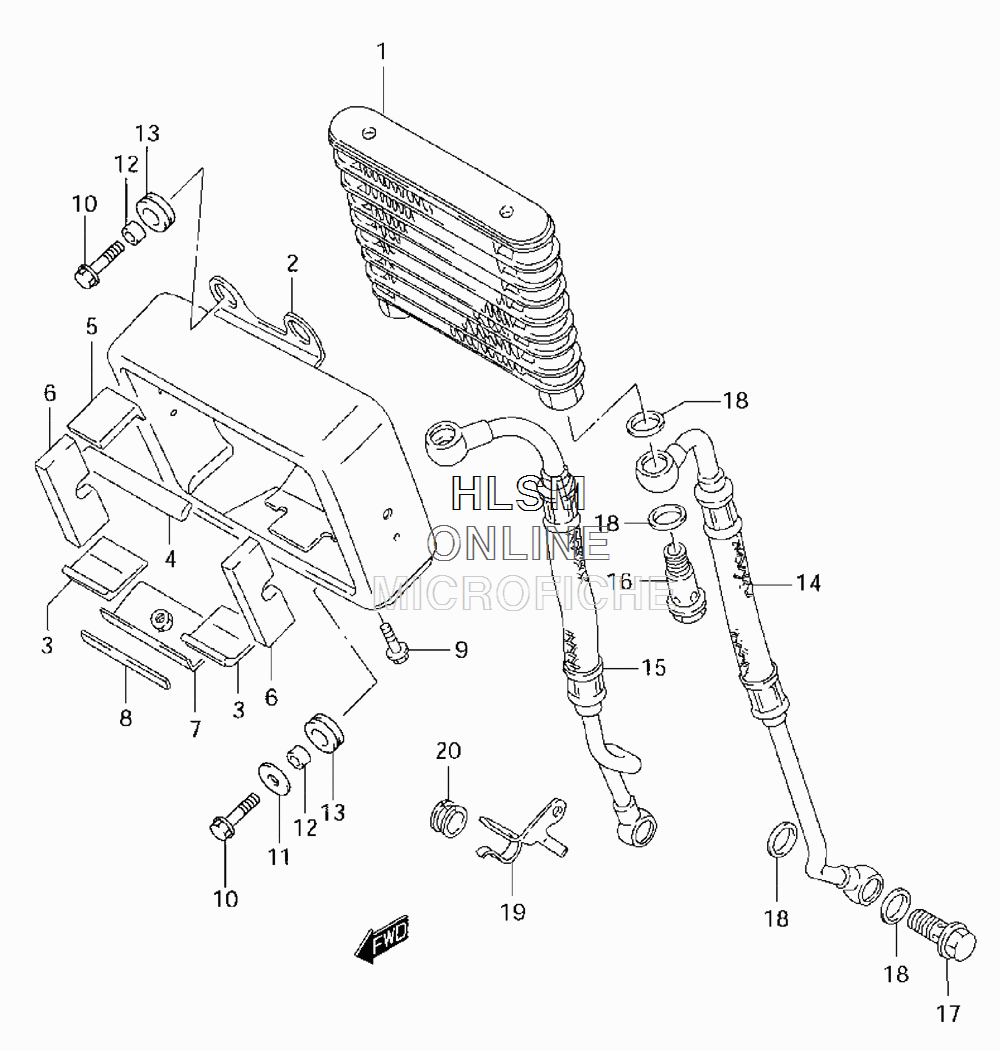

OIL COOLER для Suzuki VS1400 GLP K5 - 2005 года выпуска
-
№АртикулНазвание
-
116600-38B00 COOLER ASSY, OILCOOLER ASSY, OIL
-
216620-38B01 COVER, OIL COOLERCOVER, OIL COOLER
-
316626-38B01 CUSHION, LOWERCUSHION, LOWER
-
416627-38B01 CUSHION, UPPERCUSHION, UPPER
-
516628-38B00 CUSHION, UPPERCUSHION, UPPER
-
616629-38B01 CUSHION, SIDECUSHION, SIDE
-
716630-38B00 BRACKETBRACKET
-
816639-38B00 CUSHIONCUSHION
-
901547-0610B BOLT (GREEN)BOLT (GREEN)
-
1001547-0625B BOLT (GREEN)BOLT (GREEN)
-
1109160-06066 WASHER (6.5X20X1.6)WASHER (6.5X20X1.6)
-
1209180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
1309320-10015 CUSHIONCUSHION
-
1416460-38B01 HOSE, OIL COOLER LEFT HANDHOSE, OIL COOLER LEFT HAND
-
1516470-38B01 HOSE, OIL COOLER RIGHT HANDHOSE, OIL COOLER RIGHT HAND
-
1609360-12014 UNION BOLT (12X28.5)UNION BOLT (12X28.5)
-
1709360-14009 UNION BOLT (14X27)UNION BOLT (14X27)
-
1809168-14015 GASKETGASKET
-
1916479-38B00 CLAMP, OIL COOLER HOSE RIGHT HANDCLAMP, OIL COOLER HOSE RIGHT HAND
-
2009320-10008 CUSHIONCUSHION
