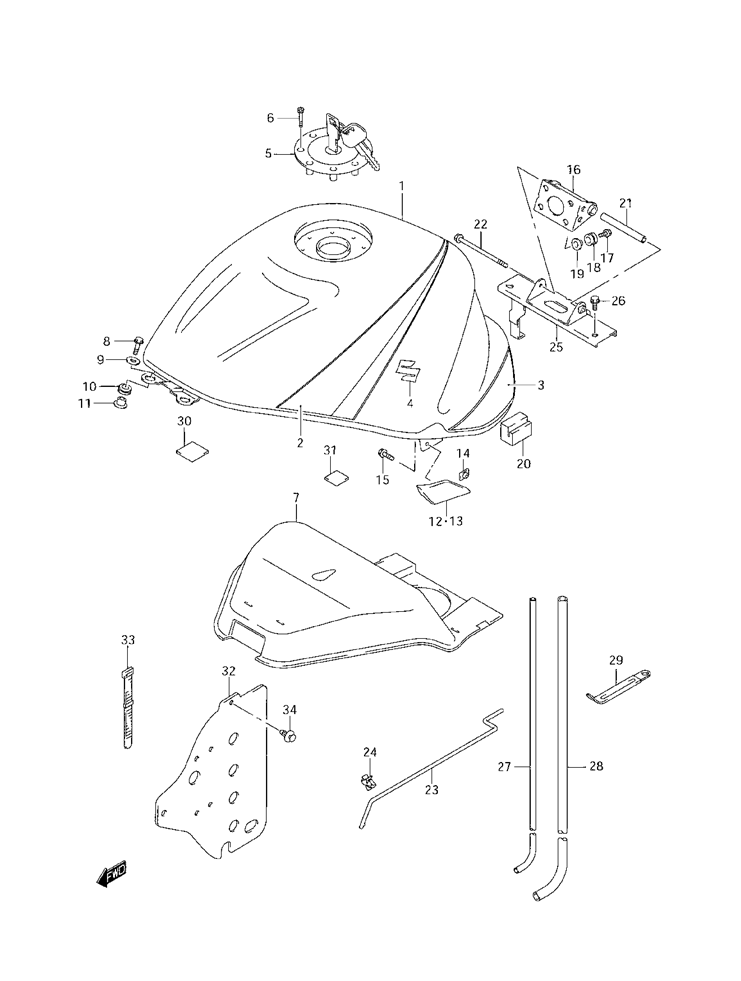

FUEL TANK для Suzuki GSX-1300R K6 - 2006 года выпуска
-
№АртикулНазвание
-
149100-24F20-YKZ TANK ASSY, FUEL (BLUE, YKZ FOR CZV) (EXCEPT CALIF.)TANK ASSY, FUEL (BLUE, YKZ FOR CZV) (EXCEPT CALIF.)
-
149100-24F20-YHL TANK ASSY, FUEL (RED, YHL FOR CZW) (EXCEPT CALIF.)TANK ASSY, FUEL (RED, YHL FOR CZW) (EXCEPT CALIF.)
-
149100-24F20-YAY TANK ASSY, FUEL (BLACK, YAY FOR CZY) (EXCEPT CALIF.)TANK ASSY, FUEL (BLACK, YAY FOR CZY) (EXCEPT CALIF.)
-
149100-24F40-YKZ TANK ASSY, FUEL (BLUE, YKZ FOR CZV) (CALIF. ONLY)TANK ASSY, FUEL (BLUE, YKZ FOR CZV) (CALIF. ONLY)
-
149100-24F40-YHL TANK ASSY, FUEL (RED, YHL FOR CZW) (CALIF. ONLY)TANK ASSY, FUEL (RED, YHL FOR CZW) (CALIF. ONLY)
-
149100-24F40-YAY TANK ASSY, FUEL (BLACK, YAY FOR CZY) (CALIF. ONLY)TANK ASSY, FUEL (BLACK, YAY FOR CZY) (CALIF. ONLY)
-
268110-24F30-DAJ TAPE SET, UPPER (FOR YKZ)TAPE SET, UPPER (FOR YKZ)
-
268110-24F30-DAK TAPE SET, UPPER (FOR YHL)TAPE SET, UPPER (FOR YHL)
-
268110-24F30-DAL TAPE SET, UPPER (FOR YAY)TAPE SET, UPPER (FOR YAY)
-
368110-24F40-CZV TAPE SET, LOWER (FOR YKZ)TAPE SET, LOWER (FOR YKZ)
-
368110-24F40-CZW TAPE SET, LOWER (FOR YHL)TAPE SET, LOWER (FOR YHL)
-
368110-24F40-CZY TAPE SET, LOWER (FOR YAY)TAPE SET, LOWER (FOR YAY)
-
468111-18G20 EMBLEMEMBLEM
-
544201-33810 CAP SET, FUEL TANK (EXCEPT CALIF.)CAP SET, FUEL TANK (EXCEPT CALIF.)
-
544200-33890 CAP SET, FUEL TANK (CALIF. ONLY)CAP SET, FUEL TANK (CALIF. ONLY)
-
609106-05017 BOLTBOLT
-
744191-24F10 SHIELD, HEATSHIELD, HEAT
-
809139-06029 BOLT, FRONTBOLT, FRONT
-
909160-06036 WASHERWASHER
-
1009320-09009 CUSHIONCUSHION
-
1109169-06062 SPACERSPACER
-
1244533-24F00 COVER, SIDE RIGHT HANDCOVER, SIDE RIGHT HAND
-
1344543-24F00 COVER, SIDE LEFT HANDCOVER, SIDE LEFT HAND
-
1444540-24F10 PLATE, SIDEPLATE, SIDE
-
1502142-06103 SCREWSCREW
-
1644560-24F01 BRACKET, TANKBRACKET, TANK
-
1709116-06152 BOLTBOLT
-
1809320-08001 CUSHIONCUSHION
-
1909169-06062 SPACERSPACER
-
2044541-24F00 CUSHION, JOINTCUSHION, JOINT
-
2144561-33E10 SPACERSPACER
-
2201550-08953 BOLTBOLT
-
2344574-33E01 STAYSTAY
-
2409403-05310 CLIPCLIP
-
2544550-24F00 BRACKET, REARBRACKET, REAR
-
2601550-08123 BOLT, LOWERBOLT, LOWER
-
2744423-24F00 HOSE, BREATHERHOSE, BREATHER
-
2809352-70113-600 HOSE, DRAINHOSE, DRAIN
-
2909404-06433 CLAMP, DRAIN HOSECLAMP, DRAIN HOSE
-
3044534-24F00 CUSHION, FRONTCUSHION, FRONT
-
3144535-24F00 CUSHION, REARCUSHION, REAR
-
3244271-24F00 SHEET, HEAT SHIELD RUBBERSHEET, HEAT SHIELD RUBBER
-
3309407-18402 CLAMPCLAMP
-
3409409-06322-5PK CLIP (BLACK)CLIP (BLACK)
