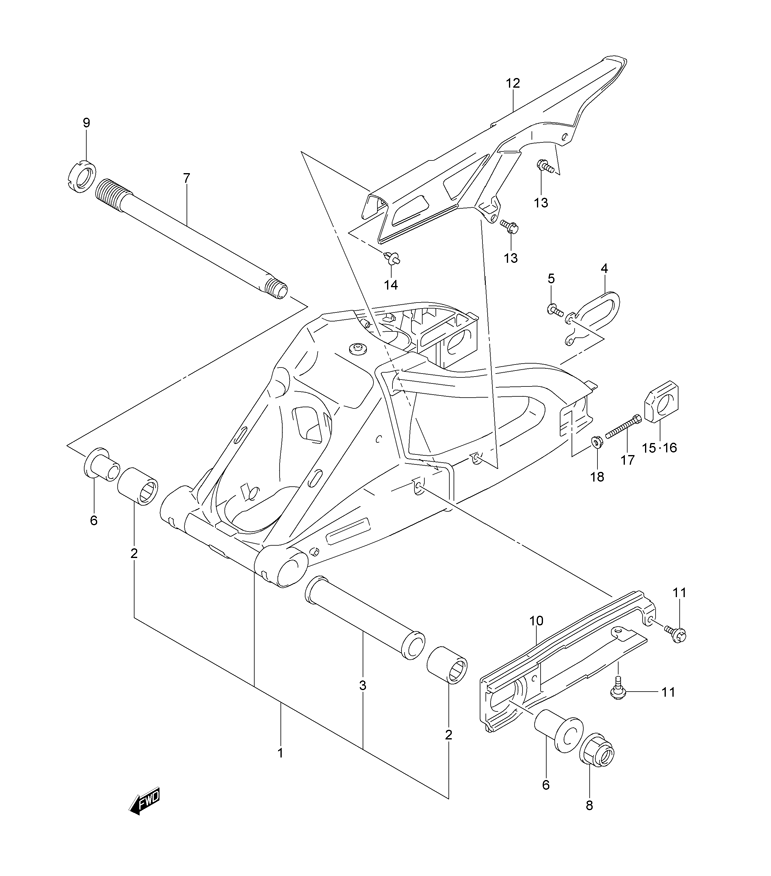

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R600 K6 - 2006 года выпуска
-
№АртикулНазвание
-
161000-01H00-YAP SWINGING ARM ASSY, REARSWINGING ARM ASSY, REAR
-
209263-27013 BEARING, PIVOTBEARING, PIVOT
-
361281-41G00 SPACER, CENTERSPACER, CENTER
-
461124-41G00-A05 PLATE, BRACKETPLATE, BRACKET
-
509125-06073-A05 SCREWSCREW
-
661251-41G00-A05 SPACER, BEARINGSPACER, BEARING
-
761211-01H00 SHAFT, PIVOTSHAFT, PIVOT
-
809159-20006-A05 NUTNUT
-
961214-42E00-A05 NUT, PIVOTNUT, PIVOT
-
1061273-01H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109111-06072-A05 SCREWSCREW
-
1261311-01H00 CASE, CHAINCASE, CHAIN
-
1309103-06289 BOLTBOLT
-
1409409-08308-5ES CLIPCLIP
-
1561445-40F20 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
1661446-40F10 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
1709100-08287-A05 BOLT (8X50)BOLT (8X50)
-
1808316-1008A NUTNUT
