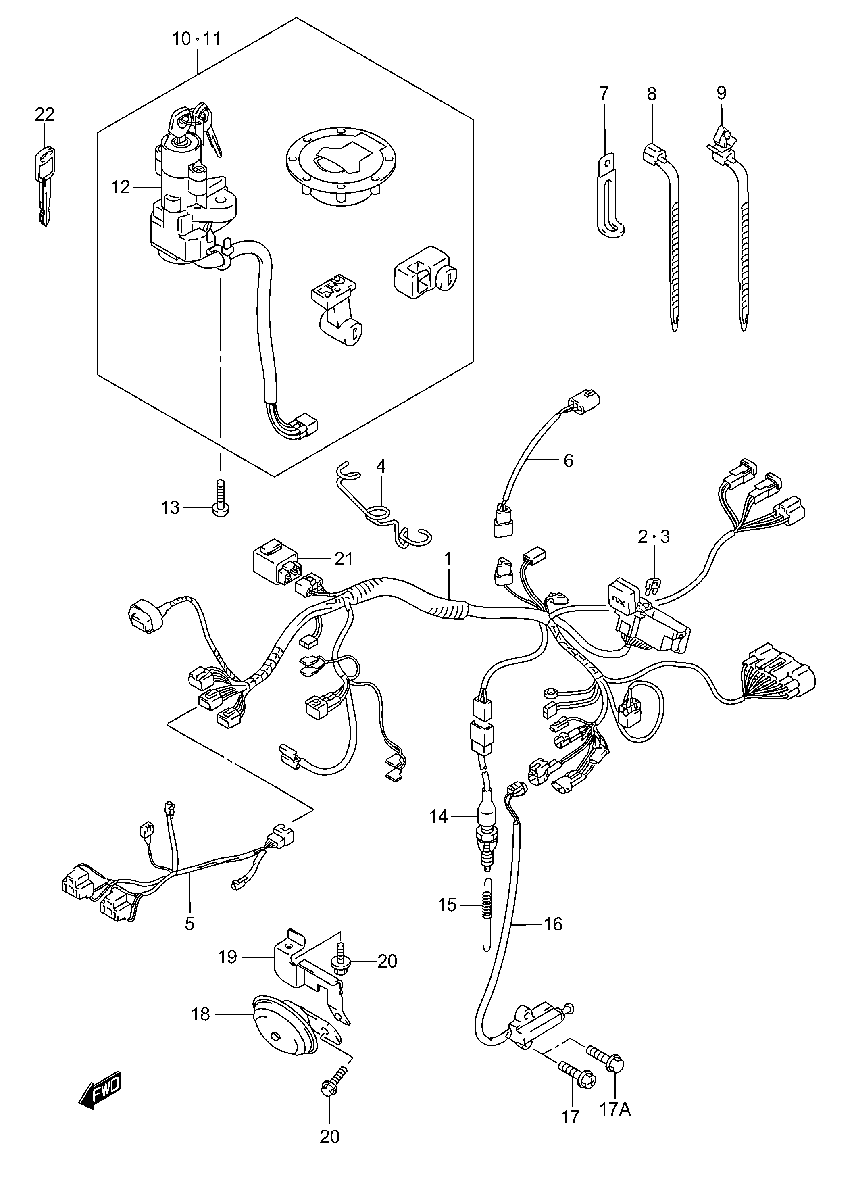

ELECTRICAL - WIRING HARNESS для Suzuki GSX600F K6 - 2006 года выпуска
-
№АртикулНазвание
-
136610-08FC0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
136610-08FE0 HARNESS, WIRING NO.1HARNESS, WIRING NO.1
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436619-08F00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
536620-08FA0 HARNESS, WIRING NO.2HARNESS, WIRING NO.2
-
636853-08F00 WIRE, SENSOR LEADWIRE, SENSOR LEAD
-
709404-06435 CLAMP (L:135)CLAMP (L:135)
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
909407-11402 CLAMP (L:90)CLAMP (L:90)
-
909407-14408 CLAMP (L:120)CLAMP (L:120)
-
1037106-33810 LOCK SET (EXCEPT CALIF)LOCK SET (EXCEPT CALIF)
-
1137106-33820 LOCK SET (CALIF ONLY)LOCK SET (CALIF ONLY)
-
1237100-33E60 LOCK ASSY, STEERINGLOCK ASSY, STEERING
-
1309139-08016 SCREW (8X20)SCREW (8X20)
-
1437740-19F00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1509443-06005 SPRING, STOP LAMPSPRING, STOP LAMP
-
1637840-44X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1702162-06163 BOLTBOLT
-
17A01550-06163 BOLTBOLT
-
1838500-08F10 HORN ASSYHORN ASSY
-
1938590-08F00 BRACKET, HORNBRACKET, HORN
-
2001550-08123 BOLT, HORNBOLT, HORN
-
2138870-48B00 CONTROLLER ASSY, FAN MOTORCONTROLLER ASSY, FAN MOTOR
-
2237146-33E00 KEY, BLANKKEY, BLANK
