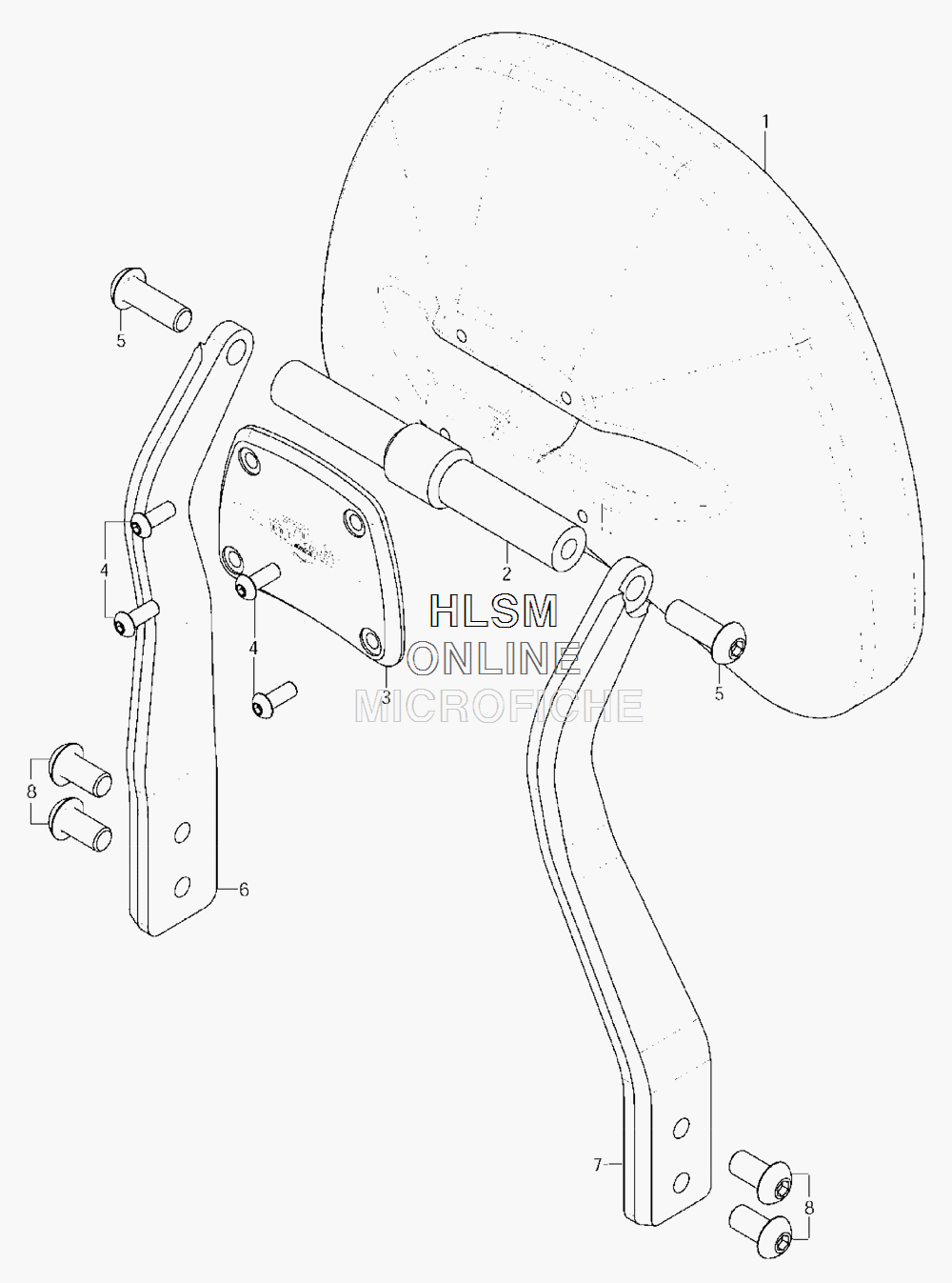

BACKREST- MOUNTS- SADDLEBAGS для Suzuki VL1500T K6 - 2006 года выпуска
-
№АртикулНазвание
-
990A0-75039-TRG BACKREST ASSY (INCL. 1-8)BACKREST ASSY (INCL. 1-8)
-
1990A0-75039-001 PAD ASSYPAD ASSY
-
1A990A0-75039-008 PAD COVER (NOT ILLUSTRATED)PAD COVER (NOT ILLUSTRATED)
-
2990A0-75039-001 CROSSBARCROSSBAR
-
3990A0-75039-003 BACK PLATEBACK PLATE
-
4990A0-75039-004 SCREW, M6X1.0X20SCREW, M6X1.0X20
-
5990A0-75039-005 SCREW, M10X1.5X25SCREW, M10X1.5X25
-
6990A0-75039-006 UPRIGHT, LEFT HANDUPRIGHT, LEFT HAND
-
7990A0-75039-007 UPRIGHT, RIGHT HANDUPRIGHT, RIGHT HAND
-
8990A0-75012-001 SCREW, M10X1.5X20SCREW, M10X1.5X20
-
9990A0-75003-001 BACKREST MOUNT PLATE, LEFT HAND (NOT ILLUSTRATED)BACKREST MOUNT PLATE, LEFT HAND (NOT ILLUSTRATED)
-
10990A0-75003-002 BACKREST MOUNT PLATE, RIGHT HAND (NOT ILLUSTRATED)BACKREST MOUNT PLATE, RIGHT HAND (NOT ILLUSTRATED)
-
11990A0-75015-001 SADDLEBAG SUPPORT, LEFT HAND (NOT ILLUSTRATED)SADDLEBAG SUPPORT, LEFT HAND (NOT ILLUSTRATED)
-
12990A0-75015-001 SADDLEBAG SUPPORT, RIGHT HAND (NOT ILLUSTRATED)SADDLEBAG SUPPORT, RIGHT HAND (NOT ILLUSTRATED)
-
13990A0-77020-001 SADDLEBAG ASSY, LEFT HAND (NOT ILLUSTRATED)SADDLEBAG ASSY, LEFT HAND (NOT ILLUSTRATED)
-
14990A0-77020-001 SADDLEBAG ASSY, RIGHT HAND (NOT ILLUSTRATED)SADDLEBAG ASSY, RIGHT HAND (NOT ILLUSTRATED)
-
17990A0-77020-004 BOLT, M8X1.25X70 (NOT ILLUSTRATED)BOLT, M8X1.25X70 (NOT ILLUSTRATED)
-
18990A0-77020-004 TOPHAT WASHER, SADDLEBAG (NOT ILLUSTRATED)TOPHAT WASHER, SADDLEBAG (NOT ILLUSTRATED)
