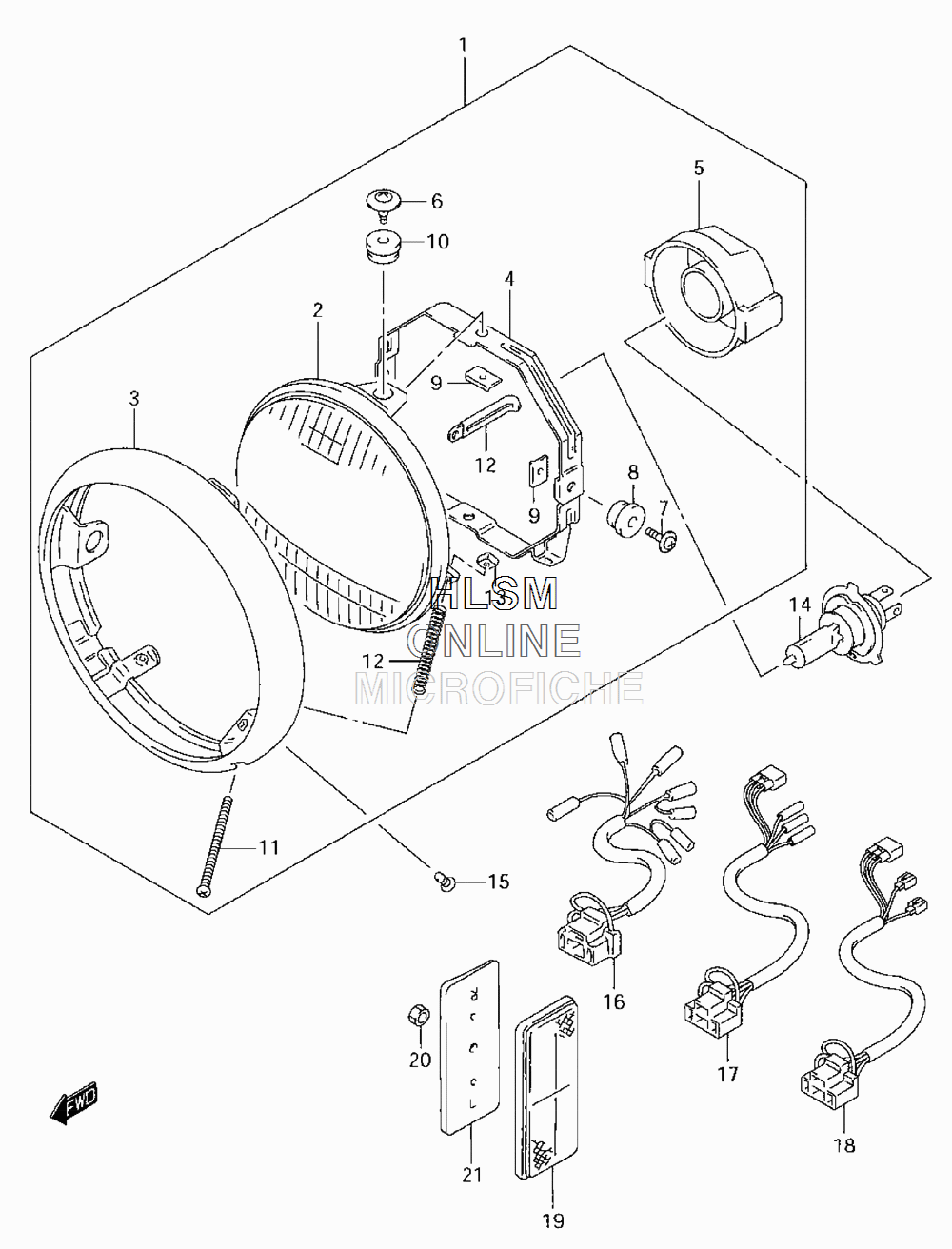

HEADLAMP для Suzuki VS1400 GLP K6 - 2006 года выпуска
-
№АртикулНазвание
-
135100-38B60-999 HEADLAMP ASSY (INC 2 - 13)HEADLAMP ASSY (INC 2 - 13)
-
235121-38A60 UNIT, LAMPUNIT, LAMP
-
335111-38A60 RIMRIM
-
435130-38A00 RING, MOUNTINGRING, MOUNTING
-
535173-13E10 COVER, SOCKETCOVER, SOCKET
-
635136-38A60 SCREWSCREW
-
735136-38A00 SCREWSCREW
-
835139-45230 CUSHIONCUSHION
-
935155-38A60 NUTNUT
-
1035139-38A60 CUSHIONCUSHION
-
1135151-38A00 SCREW, ADJUSTSCREW, ADJUST
-
1235154-31300 SPRINGSPRING
-
1335152-45600 NUTNUT
-
1409471-12185 BULB (12V,60/55W)BULB (12V,60/55W)
-
1509126-05003 SCREW, HEADLAMP (5X12)SCREW, HEADLAMP (5X12)
-
1736853-38B20 WIRE, HEADLAMP LEADWIRE, HEADLAMP LEAD
-
1935950-43431 REFLEX REFLECTOR, FRONT SIDEREFLEX REFLECTOR, FRONT SIDE
-
2008310-0005B NUTNUT
-
2135954-38B00 SPACERSPACER
