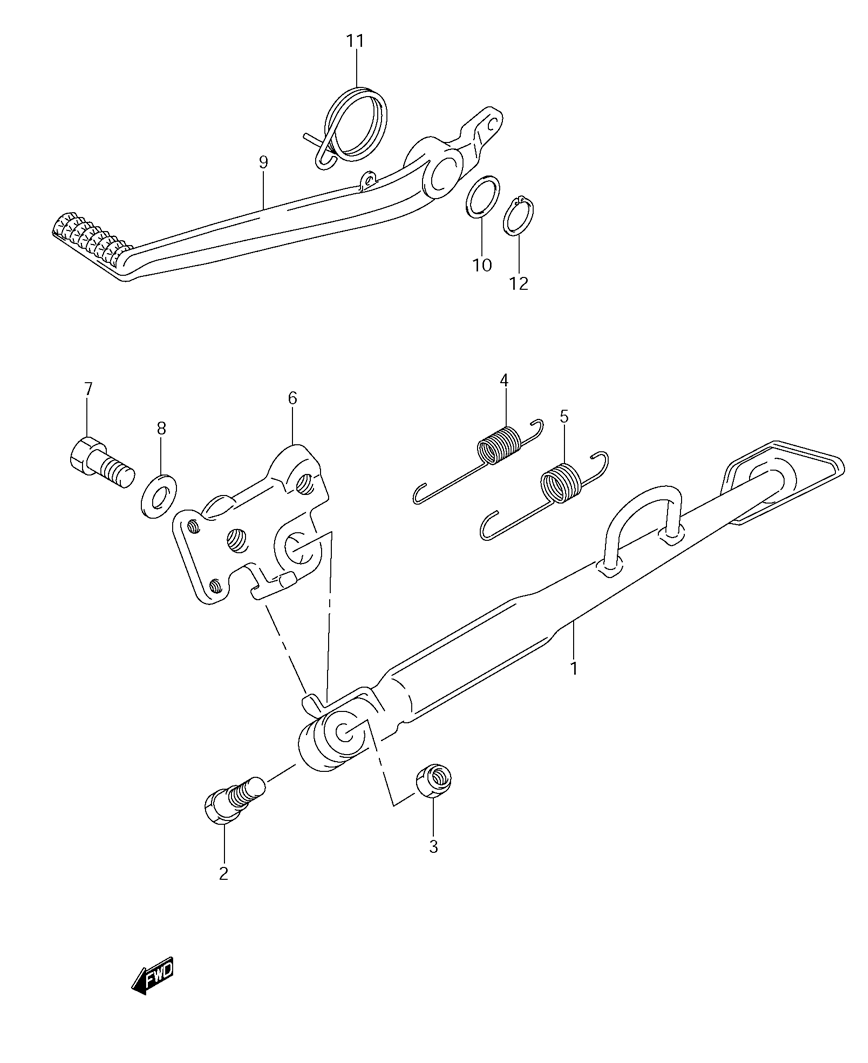

BRAKE PEDAL W/ STAND для Suzuki DL650 ABS K7 - 2007 года выпуска
-
№АртикулНазвание
-
142310-06G50 STAND, PROPSTAND, PROP
-
209111-10058 BOLTBOLT
-
342321-03FK0 NUTNUT
-
409443-14058 SPRING, INNERSPRING, INNER
-
509443-19011 SPRING, OUTERSPRING, OUTER
-
642330-06G50 BRACKET, PROP STANDBRACKET, PROP STAND
-
709100-12084 BOLTBOLT
-
809160-12061 WASHERWASHER
-
943111-27G00 PEDAL, BRAKEPEDAL, BRAKE
-
1009160-18022 WASHERWASHER
-
1109448-41005 SPRINGSPRING
-
1208331-3118A CLIPCLIP
