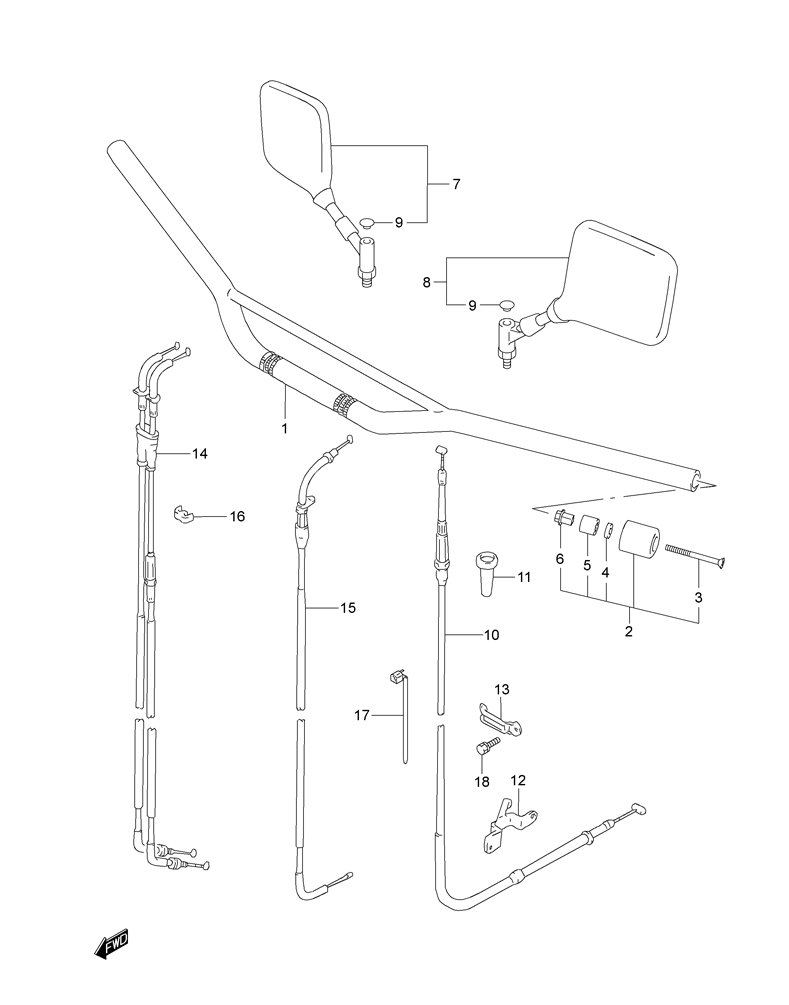

HANDLEBAR для Suzuki DR650SE K7 - 2007 года выпуска
-
№АртикулНазвание
-
156110-32E00-291 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
256200-29830 BALANCER SETBALANCER SET
-
302122-06603 SCREWSCREW
-
409160-06131 WASHERWASHER
-
556272-10G20 EXPANDEREXPANDER
-
656273-10G00 NUTNUT
-
756500-06G30 MIRROR ASSY, REAR VIEW RIGHT HANDMIRROR ASSY, REAR VIEW RIGHT HAND
-
856600-06G30 MIRROR ASSY, REAR VIEW LEFT HANDMIRROR ASSY, REAR VIEW LEFT HAND
-
956524-28600 CAPCAP
-
1058200-32E01 CABLE ASSY, CLUTCHCABLE ASSY, CLUTCH
-
1158273-31000 BOOT, CLUTCH CABLEBOOT, CLUTCH CABLE
-
1258634-32E00 STOPPER, CABLESTOPPER, CABLE
-
1309403-09307 CLAMPCLAMP
-
1458300-32E00 CABLE ASSY, THROTTLECABLE ASSY, THROTTLE
-
1558410-32E00 CABLE ASSY, STARTERCABLE ASSY, STARTER
-
1609408-00066 CLIPCLIP
-
1709407-25401 CLAMPCLAMP
-
1801550-06123 BOLT, CLAMPBOLT, CLAMP
