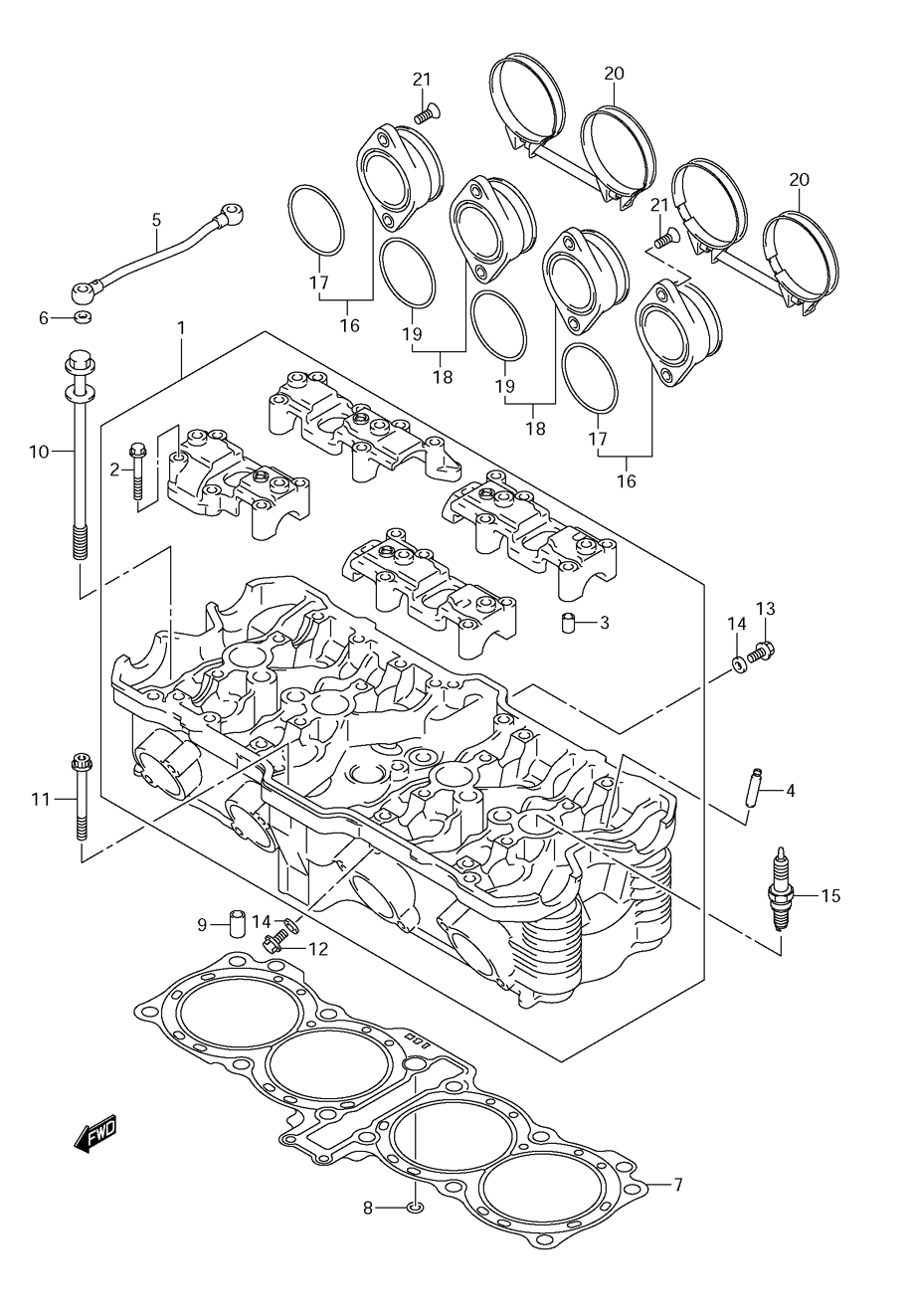

CYLINDER HEAD для Suzuki GSF1250SA K7 BANDIT W/ ABS - 2007 года выпуска
-
№АртикулНазвание
-
111100-18H00 HEAD ASSEMBLY, CYLINDERHEAD ASSEMBLY, CYLINDER
-
209103-06293 ...BOLT...BOLT
-
309206-08001 ...PIN...PIN
-
411115-17E70 GUIDE, VALVE (OS 0.3) (OPTIONAL)GUIDE, VALVE (OS 0.3) (OPTIONAL)
-
511131-18H00 PIPE, OILPIPE, OIL
-
608322-0106B WASHERWASHER
-
711141-18H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
811143-32F00 O RINGO RING
-
904211-11169 PINPIN
-
1011117-18H00 BOLTBOLT
-
1107120-0665B BOLTBOLT
-
1201550-0612A BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1307120-0612B BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1409168-06023 GASKETGASKET
-
1509482-00516 SPARK PLUG (NGK,CR7E)SPARK PLUG (NGK,CR7E)
-
1509482-00515 SPARK PLUG (DENSO,U22ESR-N)SPARK PLUG (DENSO,U22ESR-N)
-
1509482-00528 SPARK PLUG (NGK,CR6E) (OPTIONAL)SPARK PLUG (NGK,CR6E) (OPTIONAL)
-
1509482-00456 SPARK PLUG (NGK,CR8E) (OPTIONAL)SPARK PLUG (NGK,CR8E) (OPTIONAL)
-
1509482-00529 SPARK PLUG (DENSO,U20ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U20ESR-N) (OPTIONAL)
-
1509482-00457 SPARK PLUG (DENSO,U24ESR-N) (OPTIONAL)SPARK PLUG (DENSO,U24ESR-N) (OPTIONAL)
-
1613101-18H00 PIPE, INTAKE NO.1PIPE, INTAKE NO.1
-
1709280-42003 ...O RING (DIAMETER: 2.40,INSIDE DIAMETER: 41.7)...O RING (DIAMETER: 2.40,INSIDE DIAMETER: 41.7)
-
1813102-18H00 PIPE, INTAKE NO.2PIPE, INTAKE NO.2
-
1909280-42003 ...O RING (DIAMETER: 2.40,INSIDE DIAMETER: 41.7)...O RING (DIAMETER: 2.40,INSIDE DIAMETER: 41.7)
-
2013170-18H10 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
2102122-0616B SCREWSCREW
