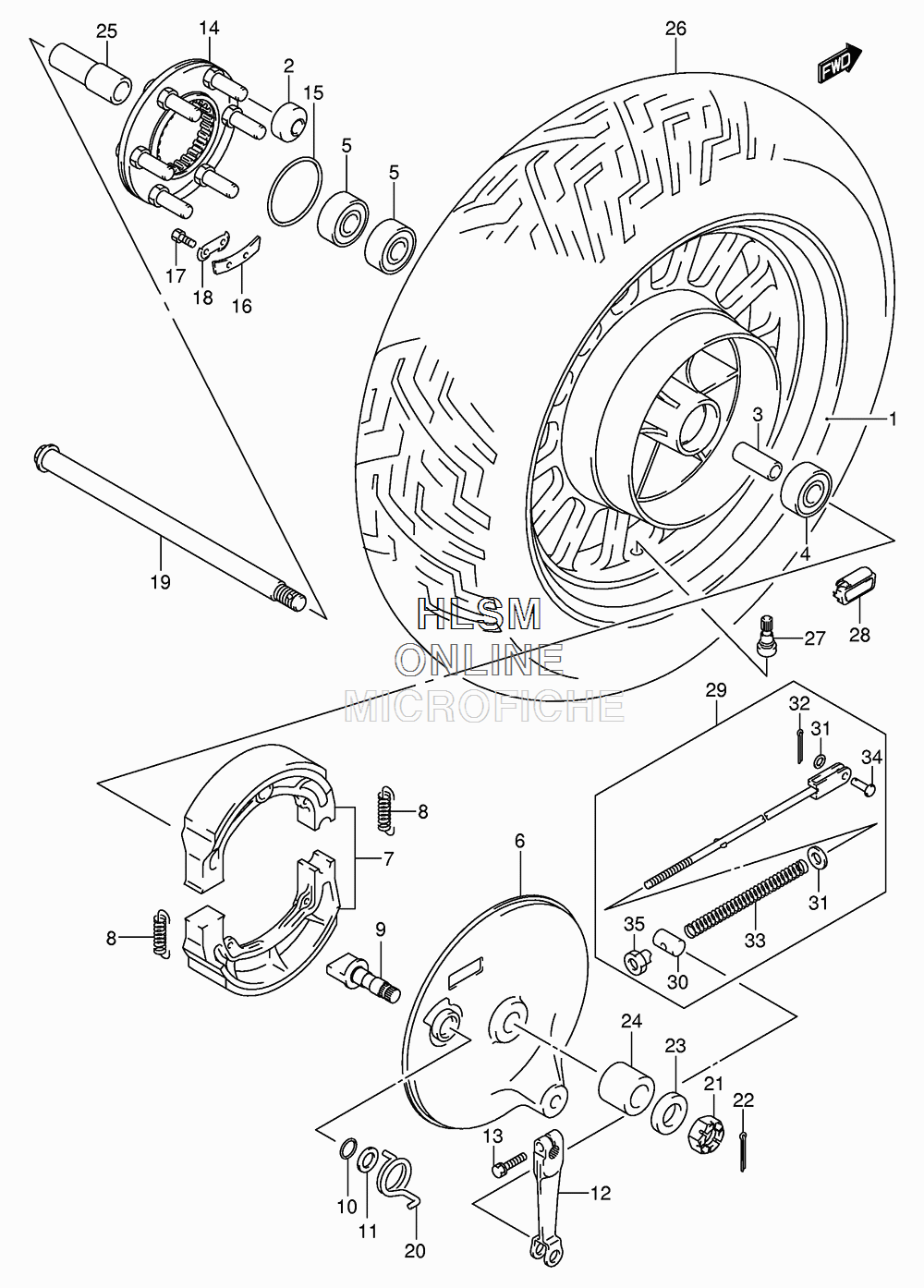

WHEEL - REAR для Suzuki VL800C K7 - 2007 года выпуска
-
№АртикулНазвание
-
164150-41F00-20H WHEEL, REAR (15M/CXMT4.00) (20H - SILVER) (INC 2)WHEEL, REAR (15M/CXMT4.00) (20H - SILVER) (INC 2)
-
209319-12019 ...BUSHING (12X41X34)...BUSHING (12X41X34)
-
309180-17112 SPACER, REAR HUBSPACER, REAR HUB
-
408123-63037 BEARING, RHBEARING, RH
-
508143-63037 BEARING, LHBEARING, LH
-
664210-38A60 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
764400-38820 SHOE SET, BRAKESHOE SET, BRAKE
-
855420-30000 SPRING, SHOESPRING, SHOE
-
964441-38A20 CAM, BRAKECAM, BRAKE
-
1009280-15003 O RING (ID:14.8,D:2.40)O RING (ID:14.8,D:2.40)
-
1109160-15048 WASHER (15.5X24X1.6)WASHER (15.5X24X1.6)
-
1264451-38A01 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
1301570-06257 BOLTBOLT
-
1464680-45113 JOINT, HUB DRIVENJOINT, HUB DRIVEN
-
1509280-65003 O RING (ID:65,D:2.10)O RING (ID:65,D:2.10)
-
1664677-45110 WASHER, THRUSTWASHER, THRUST
-
1709119-06049 BOLT (6X16)BOLT (6X16)
-
1809169-06030 WASHERWASHER
-
1964711-19F10 AXLE, REAR (L:302)AXLE, REAR (L:302)
-
2009448-33006 SPRING, CAMSPRING, CAM
-
2109141-16007 NUTNUT
-
2204111-4030A PIN, REAR AXLEPIN, REAR AXLE
-
2309160-17050 WASHER (17X30X3.2)WASHER (17X30X3.2)
-
2464741-41F00 SPACER, RHSPACER, RH
-
2564772-34201 SPACER, LHSPACER, LH
-
2665110-41F20 TIRE, RR, 170/80-15M/C 77H IRC (GS-23R D)TIRE, RR, 170/80-15M/C 77H IRC (GS-23R D)
-
2743130-24A00 VALVE ASSY, WHEEL RIMVALVE ASSY, WHEEL RIM
-
2843222-73H10 BALANCER, WHEEL NO.1BALANCER, WHEEL NO.1
-
2843224-73H10 BALANCER, WHEEL NO.2BALANCER, WHEEL NO.2
-
2843226-73H10 BALANCER, WHEEL NO.3BALANCER, WHEEL NO.3
-
2943300-41F00 ROD ASSY, REAR BRAKE (INC 29 - 35)ROD ASSY, REAR BRAKE (INC 29 - 35)
-
3009209-13018 ...PIN, REAR BRAKE ROD...PIN, REAR BRAKE ROD
-
3108322-0106B ...WASHER...WASHER
-
3204111-2015A ...PIN, COTTER...PIN, COTTER
-
3309440-09004 ...SPRING...SPRING
-
3409200-06013 ...PIN...PIN
-
3509150-06010 ...NUT...NUT
