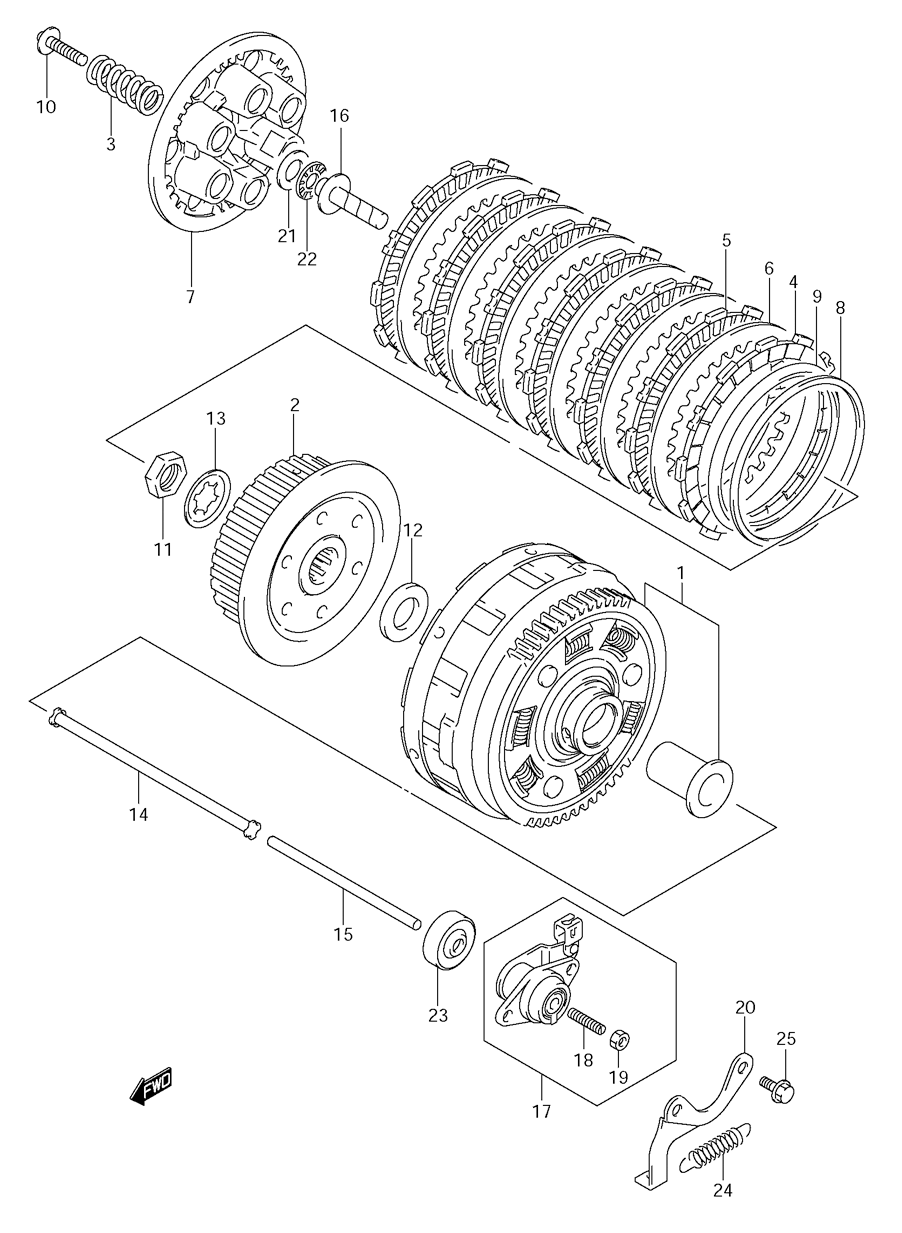

CLUTCH для Suzuki DL650 K8 - 2008 года выпуска
-
№АртикулНазвание
-
121200-17860 GEAR ASSEMBLY, PRIMARY DRIVENGEAR ASSEMBLY, PRIMARY DRIVEN
-
221411-44101 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
321413-17G01 SPRING, CLUTCHSPRING, CLUTCH
-
421442-29F00 PLATE, CLUTCH DRIVE NO.2PLATE, CLUTCH DRIVE NO.2
-
521441-29F20 PLATE, CLUTCH DRIVEPLATE, CLUTCH DRIVE
-
621451-28C31 PLATE, CLUTCH DRIVENPLATE, CLUTCH DRIVEN
-
721462-14301 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
821471-17G00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
921472-17G00 WASHER, CLUTCH PLATE WAVEWASHER, CLUTCH PLATE WAVE
-
1009116-06203 BOLT (6X30)BOLT (6X30)
-
1109140-20001 NUTNUT
-
1209160-20067 WASHER (20X36X3)WASHER (20X36X3)
-
1309167-20006 LOCK WASHERLOCK WASHER
-
1423110-44111 ROD, PUSH RIGHT HANDROD, PUSH RIGHT HAND
-
1523111-24A01 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
1623121-44100 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1723200-11D00 SCREW ASSEMBLY, CLUTCH RELEASESCREW ASSEMBLY, CLUTCH RELEASE
-
1809134-06010 ...SCREW...SCREW
-
1908310-00067 ...NUT...NUT
-
2023226-19F01 SUPPORT, CLUTCH RELEASESUPPORT, CLUTCH RELEASE
-
2109160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2209263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
2309285-06015 OIL SEAL (6X34X5.5)OIL SEAL (6X34X5.5)
-
2409443-08001 SPRINGSPRING
-
2501500-0616B BOLTBOLT
