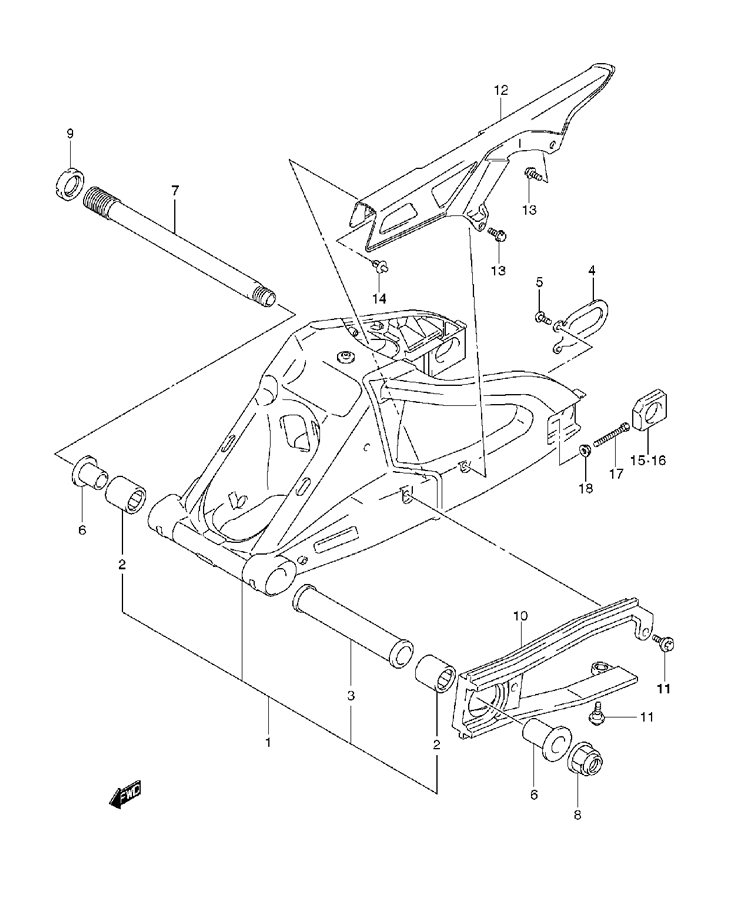

SUSPENSION - REAR SWING ARM W/ SHOCK для Suzuki GSX-R600 K8 - 2008 года выпуска
-
№АртикулНазвание
-
161000-01H10-YAP SWINGING ARM ASSY, REAR (BLACK) (YAP) (INCL. 2-3)SWINGING ARM ASSY, REAR (BLACK) (YAP) (INCL. 2-3)
-
209263-27013 BEARING, PIVOTBEARING, PIVOT
-
361281-41G00 SPACER, CENTERSPACER, CENTER
-
461124-41G00 PLATE, BRACKETPLATE, BRACKET
-
509125-06073 SCREWSCREW
-
661251-41G00 SPACER, BEARINGSPACER, BEARING
-
761211-01H00 SHAFT, PIVOTSHAFT, PIVOT
-
809159-20006 NUTNUT
-
961214-42E00 NUT, PIVOTNUT, PIVOT
-
1061273-01H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1109111-06072 SCREWSCREW
-
1261311-01H10 CASE, CHAINCASE, CHAIN
-
1309103-06302 BOLTBOLT
-
1409409-08308-5ES CLIP (BLACK)CLIP (BLACK)
-
1561445-40F20 ADJUSTER, CHAIN RIGHT HANDADJUSTER, CHAIN RIGHT HAND
-
1661446-40F10 ADJUSTER, CHAIN LEFT HANDADJUSTER, CHAIN LEFT HAND
-
1709100-08287 BOLT (8X50)BOLT (8X50)
-
1808316-1008A NUTNUT
