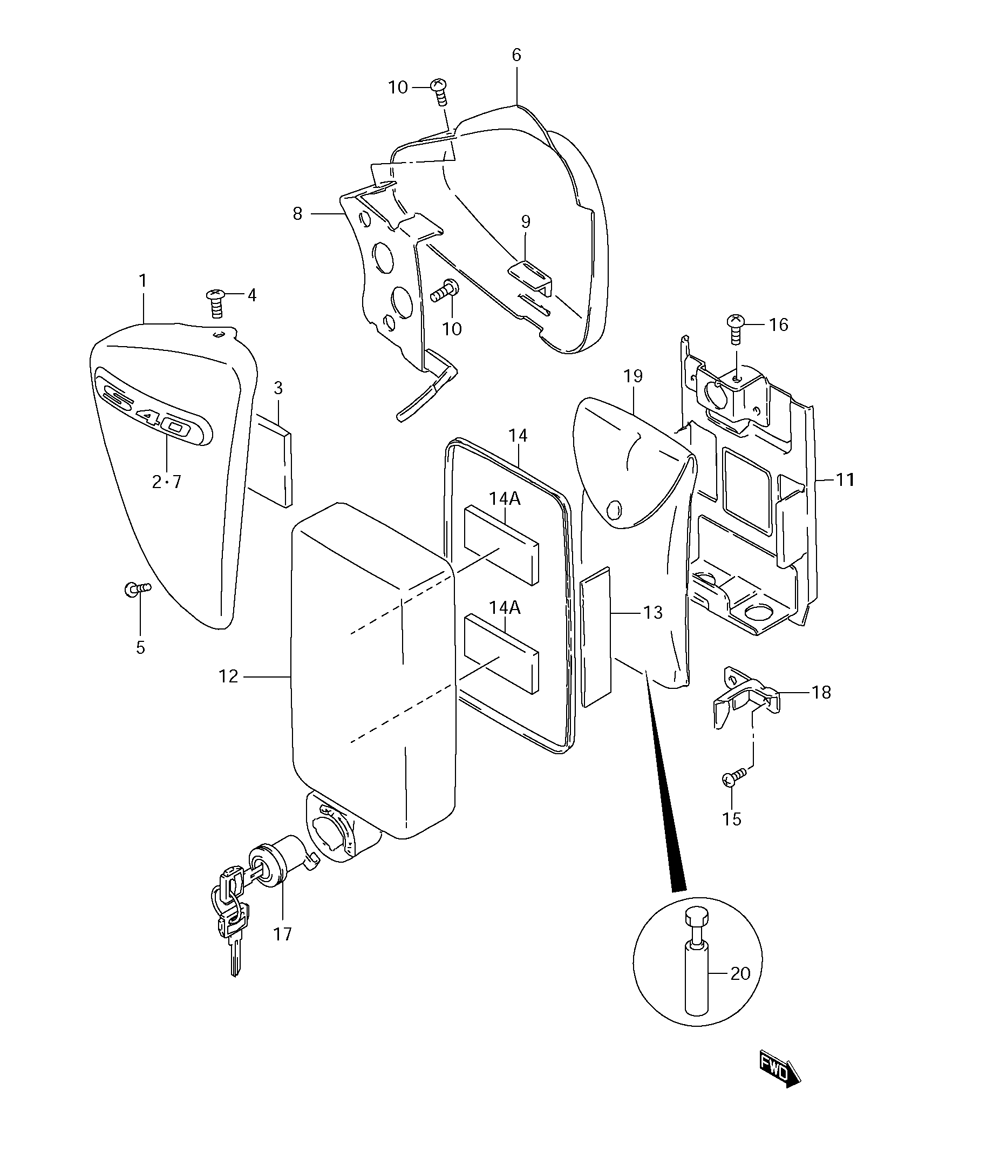

SIDE COVER для Suzuki LS650 K8 - 2008 года выпуска
-
№АртикулНазвание
-
147100-24CA0-YAY COVER, FRAME RIGHT HAND (BLACK) (YAY)COVER, FRAME RIGHT HAND (BLACK) (YAY)
-
147100-24CA0-YHL COVER, FRAME RIGHT HAND (RED) (YHL)COVER, FRAME RIGHT HAND (RED) (YHL)
-
147100-24CA0-YMD COVER, FRAME RIGHT HAND (SILVER) (YMD)COVER, FRAME RIGHT HAND (SILVER) (YMD)
-
268131-24CA0 ...EMBLEM...EMBLEM
-
313719-84150 ...CUSHION...CUSHION
-
402142-0510B SCREWSCREW
-
502112-7516B SCREW, LOWERSCREW, LOWER
-
647200-24CA0-YAY COVER, FRAME LEFT HAND (BLACK) (YAY)COVER, FRAME LEFT HAND (BLACK) (YAY)
-
647200-24CA0-YHL COVER, FRAME LEFT HAND (RED) (YHL)COVER, FRAME LEFT HAND (RED) (YHL)
-
647200-24CA0-YMD COVER, FRAME LEFT HAND (SILVER) (YMD)COVER, FRAME LEFT HAND (SILVER) (YMD)
-
768131-24CA0 ...EMBLEM...EMBLEM
-
847180-24B03 BRACKET, FRAME COVER LEFT HANDBRACKET, FRAME COVER LEFT HAND
-
947117-45000 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1002122-0612B SCREW, BRACKETSCREW, BRACKET
-
1147430-24B01 HOLDER, TOOLHOLDER, TOOL
-
1247440-24B20 COVER, TOOL HOLDERCOVER, TOOL HOLDER
-
1333652-38A10 ...PROTECTOR...PROTECTOR
-
1447445-24B00 ...MOLDING...MOLDING
-
14A33652-31F00 CUSHION, TOOL HOLDERCUSHION, TOOL HOLDER
-
1502142-0510B SCREW, LOWERSCREW, LOWER
-
1602112-0610B SCREW, UPPERSCREW, UPPER
-
1795700-24870 LOCK ASSEMBLY, TOOL HOLDERLOCK ASSEMBLY, TOOL HOLDER
-
1847434-24B00 PLATE, LOCKPLATE, LOCK
-
1909800-21055 TOOL ASSEMBLYTOOL ASSEMBLY
-
2096220-24B00 GAUGE ASSEMBLY, TENSIONGAUGE ASSEMBLY, TENSION
