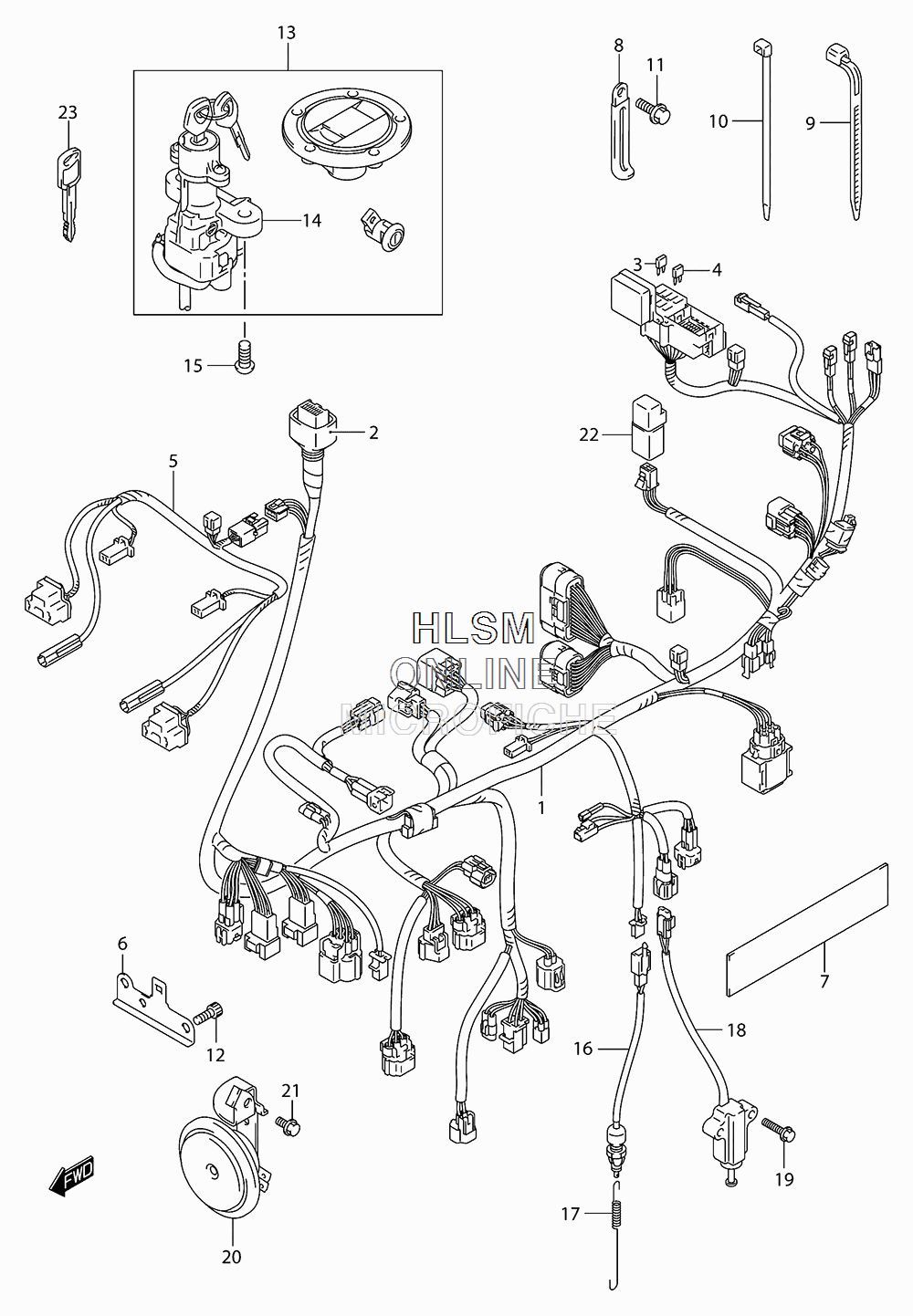

ELECTRICAL - WIRING HARNESS для Suzuki SV650A K8 - 2008 года выпуска
-
№АртикулНазвание
-
136610-17GM0 HARNESS, WIRING, NO.1 (EXCEPT CALIF)HARNESS, WIRING, NO.1 (EXCEPT CALIF)
-
136610-17GL0 HARNESS, WIRING, NO.1 (CALIF ONLY)HARNESS, WIRING, NO.1 (CALIF ONLY)
-
236618-33E00 ...BOOT...BOOT
-
309481-10501 ...FUSE (10A)...FUSE (10A)
-
409481-15501 ...FUSE (15A)...FUSE (15A)
-
536620-16G10 HARNESS, WIRING, NO.2HARNESS, WIRING, NO.2
-
636687-17G10 HOLDER, COUPLERHOLDER, COUPLER
-
733652-26E00 PROTECTOR (20X90X1.0)PROTECTOR (20X90X1.0)
-
809404-06429 CLAMP (L:45)CLAMP (L:45)
-
809404-06433 CLAMP (L:80)CLAMP (L:80)
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-18402 CLAMP (L:165)CLAMP (L:165)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1101550-0612B BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1101550-0610A BOLT, WIRING HARNESSBOLT, WIRING HARNESS
-
1207130-0610B SCREW, WIRING HARNESSSCREW, WIRING HARNESS
-
1337000-16840 LOCK SET (EXCEPT CALIF)LOCK SET (EXCEPT CALIF)
-
1337000-16850 LOCK SET (CALIF ONLY)LOCK SET (CALIF ONLY)
-
1437100-16G00 ...LOCK ASSY, STEERING...LOCK ASSY, STEERING
-
1509139-08016 BOLT (8X20)BOLT (8X20)
-
1637740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1709443-06016 SPRINGSPRING
-
1837840-16G00 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1901550-06257 BOLTBOLT
-
2038500-17G10 HORN ASSYHORN ASSY
-
2101550-0612B BOLT, HORNBOLT, HORN
-
2238740-24X50 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2337146-33E00 KEY, BLANK (OPT)KEY, BLANK (OPT)
