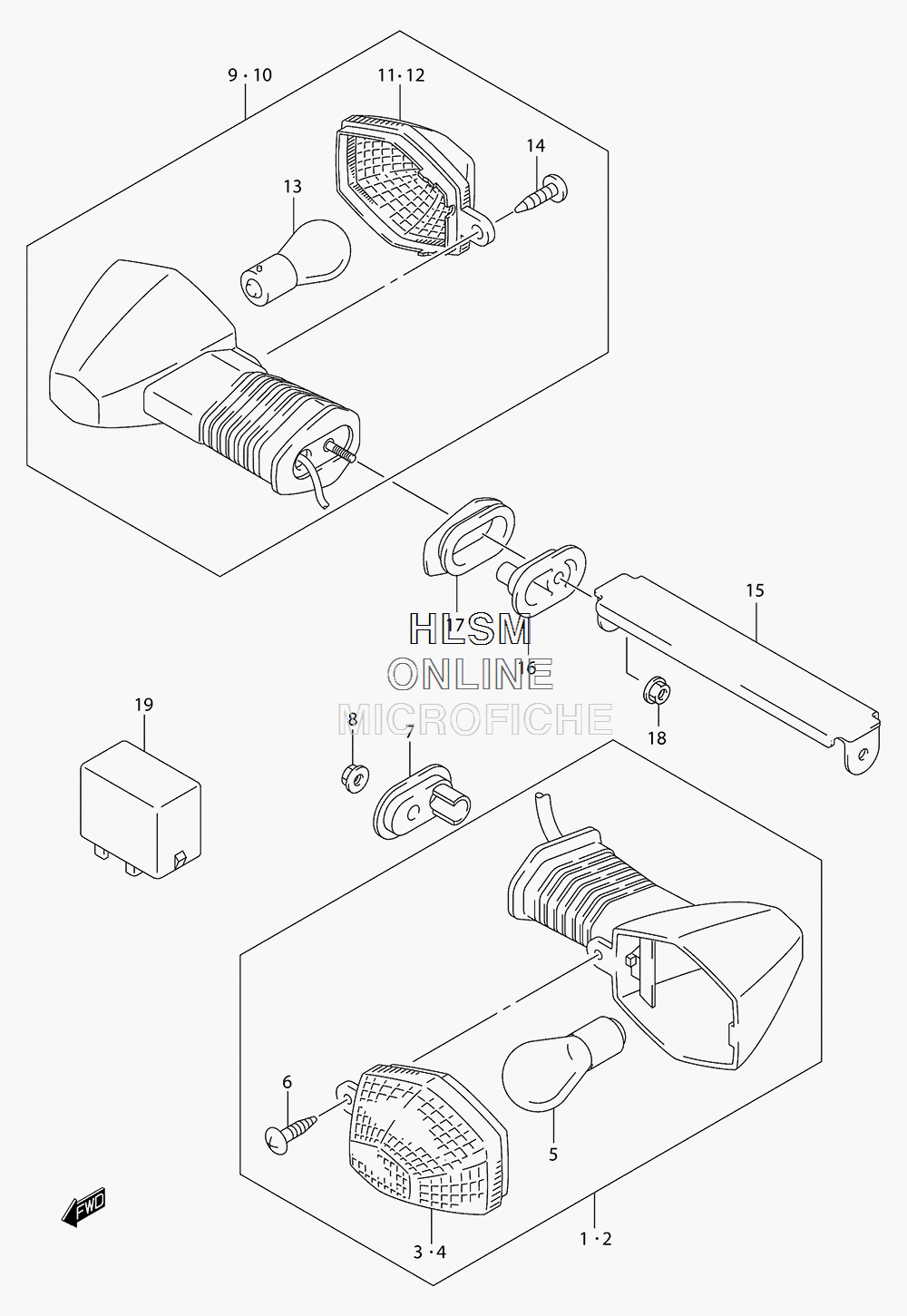

TURN SIGNAL ASSY. для Suzuki SV650SA K8 - 2008 года выпуска
-
№АртикулНазвание
-
135601-16G10 LAMP ASSY, FRONT TURNSIGNAL RIGHTLAMP ASSY, FRONT TURNSIGNAL RIGHT
-
235602-16G10 LAMP ASSY, FRONT TURNSIGNAL LEFTLAMP ASSY, FRONT TURNSIGNAL LEFT
-
335612-31F30 ...LENS, RH...LENS, RH
-
435632-31F30 ...LENS, LH...LENS, LH
-
509471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
603241-0416B ...SCREW...SCREW
-
735629-31F40 PLATE, FRONT TURNSIGNALPLATE, FRONT TURNSIGNAL
-
808316-1005B NUTNUT
-
935603-16GC0 LAMP ASSY, REAR TURNSIGNAL RIGHTLAMP ASSY, REAR TURNSIGNAL RIGHT
-
1035604-16GC0 LAMP ASSY, REAR TURNSIGNAL LEFTLAMP ASSY, REAR TURNSIGNAL LEFT
-
1135632-31F30 ...LENS, RH...LENS, RH
-
1235612-31F30 ...LENS, LH...LENS, LH
-
1309471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1403241-0416B ...SCREW...SCREW
-
1535620-16G00 BRACKET, REAR TURNSIGNALBRACKET, REAR TURNSIGNAL
-
1635629-16G00 PLATE, REAR TURNSIGNALPLATE, REAR TURNSIGNAL
-
1735647-16G00 CUSHION, REARCUSHION, REAR
-
1808316-1005B NUTNUT
-
1938610-03F00 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
