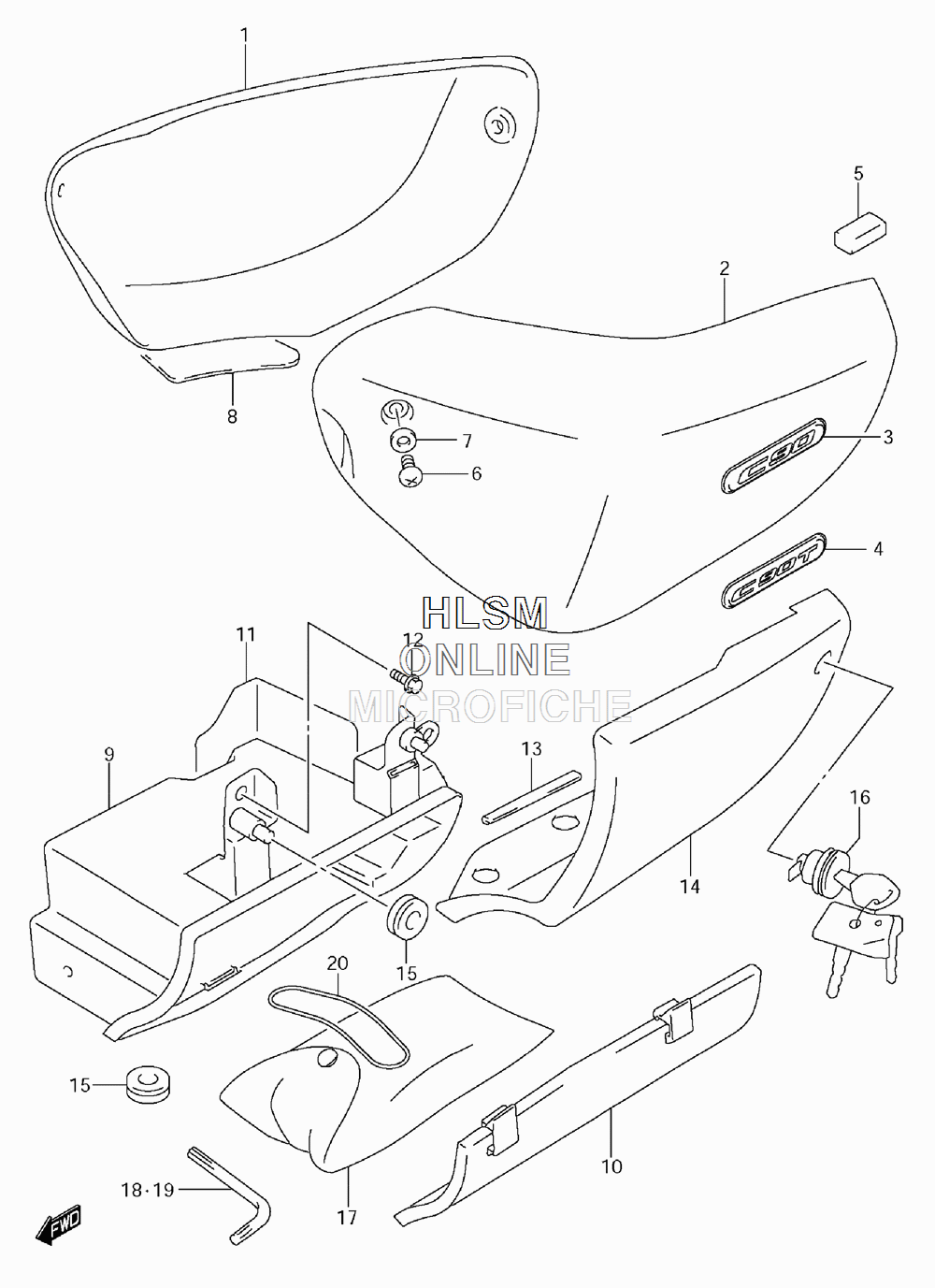

SIDE COVER для Suzuki VL1500 K8 - 2008 года выпуска
-
№АртикулНазвание
-
147110-10F00-YAY COVER, FRAME RIGHT HAND (BLACK) (FOR YAY)COVER, FRAME RIGHT HAND (BLACK) (FOR YAY)
-
147110-10F00-YHF COVER, FRAME RIGHT HAND (GRAY) (FOR CRT)COVER, FRAME RIGHT HAND (GRAY) (FOR CRT)
-
147110-10F00-YMD COVER, FRAME RIGHT HAND (SILVER) (FOR EUA)COVER, FRAME RIGHT HAND (SILVER) (FOR EUA)
-
247210-10F00-YAY COVER, FRAME LEFT HAND (BLACK) (FOR YAY)COVER, FRAME LEFT HAND (BLACK) (FOR YAY)
-
247210-10F00-YHF COVER, FRAME LEFT HAND (GRAY) (FOR CRT)COVER, FRAME LEFT HAND (GRAY) (FOR CRT)
-
247210-10F00-YMD COVER, FRAME LEFT HAND (SILVER) (FOR EUA)COVER, FRAME LEFT HAND (SILVER) (FOR EUA)
-
368131-10FA0 EMBLEMEMBLEM
-
468131-10FB0 EMBLEMEMBLEM
-
547117-10F00 CUSHIONCUSHION
-
609139-06030 SCREWSCREW
-
709160-06094 WASHERWASHER
-
847166-10F00 SHIELD, FRAME COVER RIGHT HANDSHIELD, FRAME COVER RIGHT HAND
-
947431-10F00 BODY, TOOL HOLDERBODY, TOOL HOLDER
-
1047432-10F00 CAP, TOOL HOLDERCAP, TOOL HOLDER
-
1147436-10F00 SHIELD, BODYSHIELD, BODY
-
1209113-06001 BOLTBOLT
-
1347212-10F00 MOLDING, LEFT HANDMOLDING, LEFT HAND
-
1447440-10F00 COVER, TOOL HOLDERCOVER, TOOL HOLDER
-
1509320-08047 CUSHIONCUSHION
-
1695700-07860 LOCK SET, COVERLOCK SET, COVER
-
1709800-21055 TOOL ASSYTOOL ASSY
-
1809816-00050 HEXAGON SPANNER, 6HEXAGON SPANNER, 6
-
1909816-00059 HEXAGON SPANNER, 5HEXAGON SPANNER, 5
-
2009280-61002 BAND, TOOLBAND, TOOL
