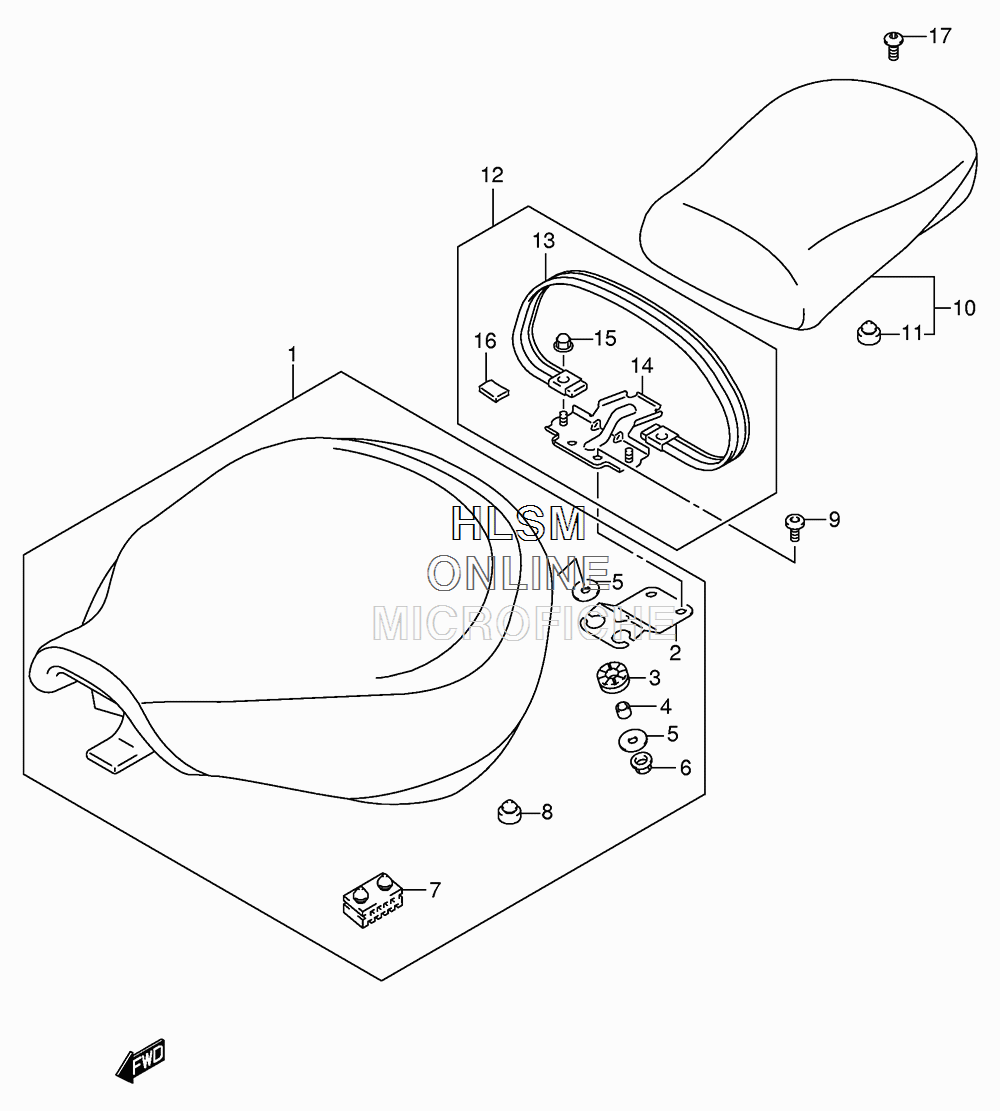

SEAT для Suzuki VL800 K8 - 2008 года выпуска
-
№АртикулНазвание
-
145100-41F02-48H SEAT ASSY (48H - BLACK) (INC 2-8)SEAT ASSY (48H - BLACK) (INC 2-8)
-
245115-41F00 ...BRACKET, SEAT...BRACKET, SEAT
-
345149-41F00 ...CUSHION...CUSHION
-
409180-07004 ...SPACER...SPACER
-
509160-06501 ...WASHER (6.5X24X1.6)...WASHER (6.5X24X1.6)
-
608316-1006B ...NUT...NUT
-
745149-31300 ...CUSHION...CUSHION
-
809321-10002 ...CUSHION...CUSHION
-
909106-06064 BOLT, REAR (8X16)BOLT, REAR (8X16)
-
1045300-41F00-48H SEAT ASSY, PILLION (48H - BLACK) (INC 11)SEAT ASSY, PILLION (48H - BLACK) (INC 11)
-
1109321-10002 ...CUSHION...CUSHION
-
1245180-41F01-48H BAND ASSY (48H - BLACK) (INC 13-16)BAND ASSY (48H - BLACK) (INC 13-16)
-
1345181-41F01 ...BAND, SEAT...BAND, SEAT
-
1445185-41F00 ...BRACKET, SEAT BAND...BRACKET, SEAT BAND
-
1508313-2006B ...NUT...NUT
-
1661544-94500 ...CUSHION...CUSHION
-
1709106-08140 BOLT, REAR (8X16)BOLT, REAR (8X16)
