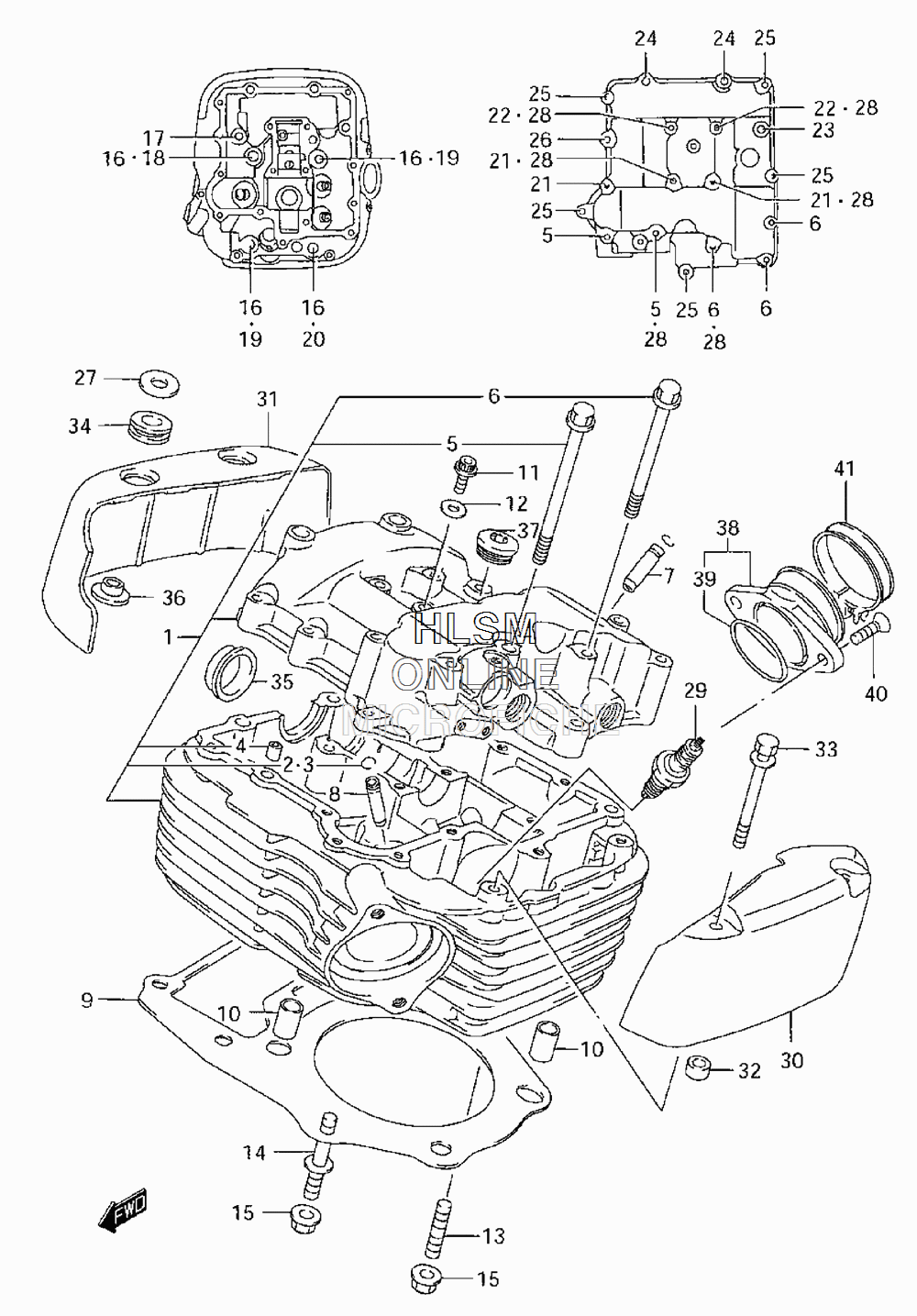

CYLINDER HEAD (REAR) для Suzuki VS1400 GLP K8 - 2008 года выпуска
-
№АртикулНазвание
-
111103-38B60 HEAD ASSY, CYLINDER REAR (INC 2 - 6)HEAD ASSY, CYLINDER REAR (INC 2 - 6)
-
209381-10004 RING, VALVE GUIDE INTAKERING, VALVE GUIDE INTAKE
-
309381-10003 RING, VALVE GUIDE EXHAUSTRING, VALVE GUIDE EXHAUST
-
409206-08001 PINPIN
-
509103-06064 BOLT (6X60)BOLT (6X60)
-
609103-06102 BOLT (6X55)BOLT (6X55)
-
711115-38B70 GUIDE, VALVE INTAKE (OS:0.3) (OPT)GUIDE, VALVE INTAKE (OS:0.3) (OPT)
-
811115-45740 GUIDE, VALVE EXHAUST (OS:0.3) (OPT)GUIDE, VALVE EXHAUST (OS:0.3) (OPT)
-
911142-38B00 GASKET, CYLINDER HEAD REARGASKET, CYLINDER HEAD REAR
-
1004211-13189 PINPIN
-
1107120-0612B BOLT, OIL GALLERYBOLT, OIL GALLERY
-
1209168-06018 GASKETGASKET
-
1309108-08142 STUD BOLT (L:30)STUD BOLT (L:30)
-
1409108-08205 STUD BOLT (M12/8)STUD BOLT (M12/8)
-
1508316-1008B NUTNUT
-
1609160-10039 WASHERWASHER
-
1709103-08181 BOLT (8X57)BOLT (8X57)
-
1809103-10178 BOLT (10X180)BOLT (10X180)
-
1909103-10179 BOLT (10X190)BOLT (10X190)
-
2009103-10181 BOLT (10X215)BOLT (10X215)
-
2109103-06101 BOLT (6X50)BOLT (6X50)
-
2209103-06112 BOLT (6X45)BOLT (6X45)
-
2309103-08086 BOLT (8X130)BOLT (8X130)
-
2409103-08213 BOLT (8X268)BOLT (8X268)
-
2501550-0630B BOLTBOLT
-
2601550-0635B BOLTBOLT
-
2709160-08130 WASHERWASHER
-
2809168-06023 GASKETGASKET
-
2909482-00334 SPARK PLUG (NGK,DPR8EA-9) (STD)SPARK PLUG (NGK,DPR8EA-9) (STD)
-
2909482-00335 SPARK PLUG (ND,X24EPR-U9) (STD)SPARK PLUG (ND,X24EPR-U9) (STD)
-
2909482-00354 SPARK PLUG (NGK,DPR7EA-9) (OPT)SPARK PLUG (NGK,DPR7EA-9) (OPT)
-
2909482-00355 SPARK PLUG (ND,X22EPR-U9) (OPT)SPARK PLUG (ND,X22EPR-U9) (OPT)
-
2909482-00330 SPARK PLUG (NGK,DPR9EA-9) (OPT)SPARK PLUG (NGK,DPR9EA-9) (OPT)
-
2909482-00331 SPARK PLUG (ND,X27EPR-U9) (OPT)SPARK PLUG (ND,X27EPR-U9) (OPT)
-
3011173-38B00 CAP, HEAD COVER LEFT HANDCAP, HEAD COVER LEFT HAND
-
3111174-38B00 CAP, HEAD COVER RIGHT HANDCAP, HEAD COVER RIGHT HAND
-
3211273-24B00 CUSHION, HEAD COVER CAPCUSHION, HEAD COVER CAP
-
3301244-06607 BOLTBOLT
-
3409320-13015 CUSHIONCUSHION
-
3509241-30008 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
3609301-08007 BUSHBUSH
-
3709248-22004 PLUG, HEAD COVERPLUG, HEAD COVER
-
3813102-38B01 PIPE, INTAKE REAR (INC 39)PIPE, INTAKE REAR (INC 39)
-
3909280-41007 O RING (D:1.9,ID:40.7)O RING (D:1.9,ID:40.7)
-
4002122-0620B SCREWSCREW
-
4109402-52501 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
