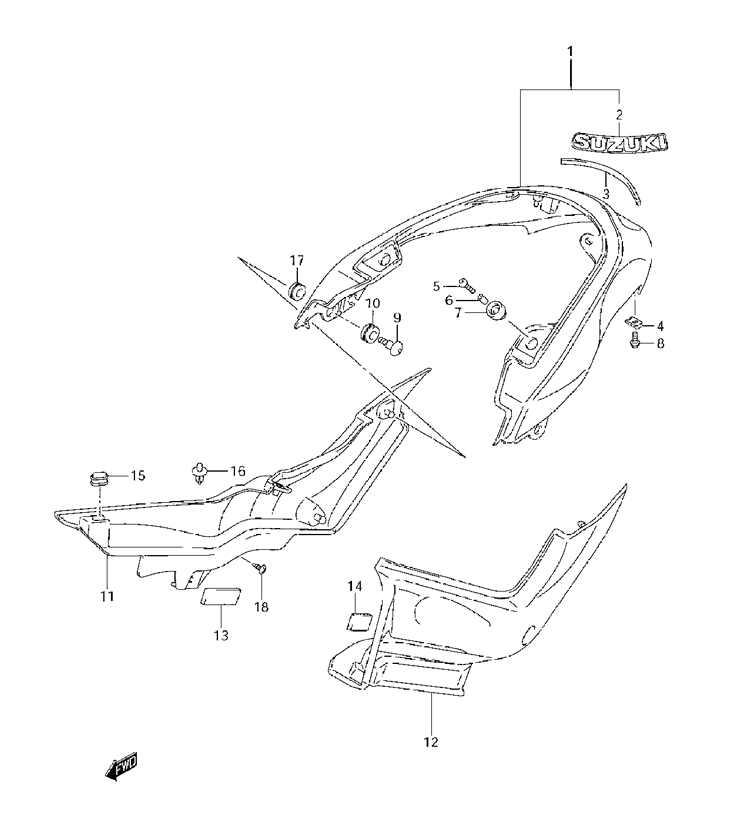

FENDER - REAR для Suzuki VZR1800 K8 M109R - 2008 года выпуска
-
№АртикулНазвание
-
163110-48G00-YAY FENDER, REAR (BLACK) (YAY) (INCL. 2)FENDER, REAR (BLACK) (YAY) (INCL. 2)
-
163110-48G00-YHG FENDER, REAR (GRAY) (YHG) (INCL. 2)FENDER, REAR (GRAY) (YHG) (INCL. 2)
-
163110-48G00-YME FENDER, REAR (ORANGE) (YME) (INCL. 2)FENDER, REAR (ORANGE) (YME) (INCL. 2)
-
268641-19F00-YD8 EMBLEM (SILVER)EMBLEM (SILVER)
-
363117-39G00 CUSHION, LAMPCUSHION, LAMP
-
494484-24F00 NUTNUT
-
509139-06030 BOLT, FRONTBOLT, FRONT
-
609180-06286 SPACERSPACER
-
709320-10045 CUSHIONCUSHION
-
809139-06120 BOLT, CENTERBOLT, CENTER
-
909139-06126 BOLT, REARBOLT, REAR
-
1009320-09016 CUSHIONCUSHION
-
1163171-48G00-YAY COVER, REAR FENDER RIGHT HAND (BLACK) (YAY)COVER, REAR FENDER RIGHT HAND (BLACK) (YAY)
-
1163171-48G00-YHG COVER, REAR FENDER RIGHT HAND (GRAY) (YHG)COVER, REAR FENDER RIGHT HAND (GRAY) (YHG)
-
1163171-48G00-YME COVER, REAR FENDER RIGHT HAND (ORANGE) (YME)COVER, REAR FENDER RIGHT HAND (ORANGE) (YME)
-
1263181-48G00-YAY COVER, REAR FENDER LEFT HAND (BLACK) (YAY)COVER, REAR FENDER LEFT HAND (BLACK) (YAY)
-
1263181-48G00-YHG COVER, REAR FENDER LEFT HAND (GRAY) (YHG)COVER, REAR FENDER LEFT HAND (GRAY) (YHG)
-
1263181-48G00-YME COVER, REAR FENDER LEFT HAND (ORANGE) (YME)COVER, REAR FENDER LEFT HAND (ORANGE) (YME)
-
1315439-70G10 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
1447161-19C00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
1544276-29G00 CUSHION, COVERCUSHION, COVER
-
1609409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
1709320-08028 CUSHIONCUSHION
-
1803541-0516A SCREWSCREW
