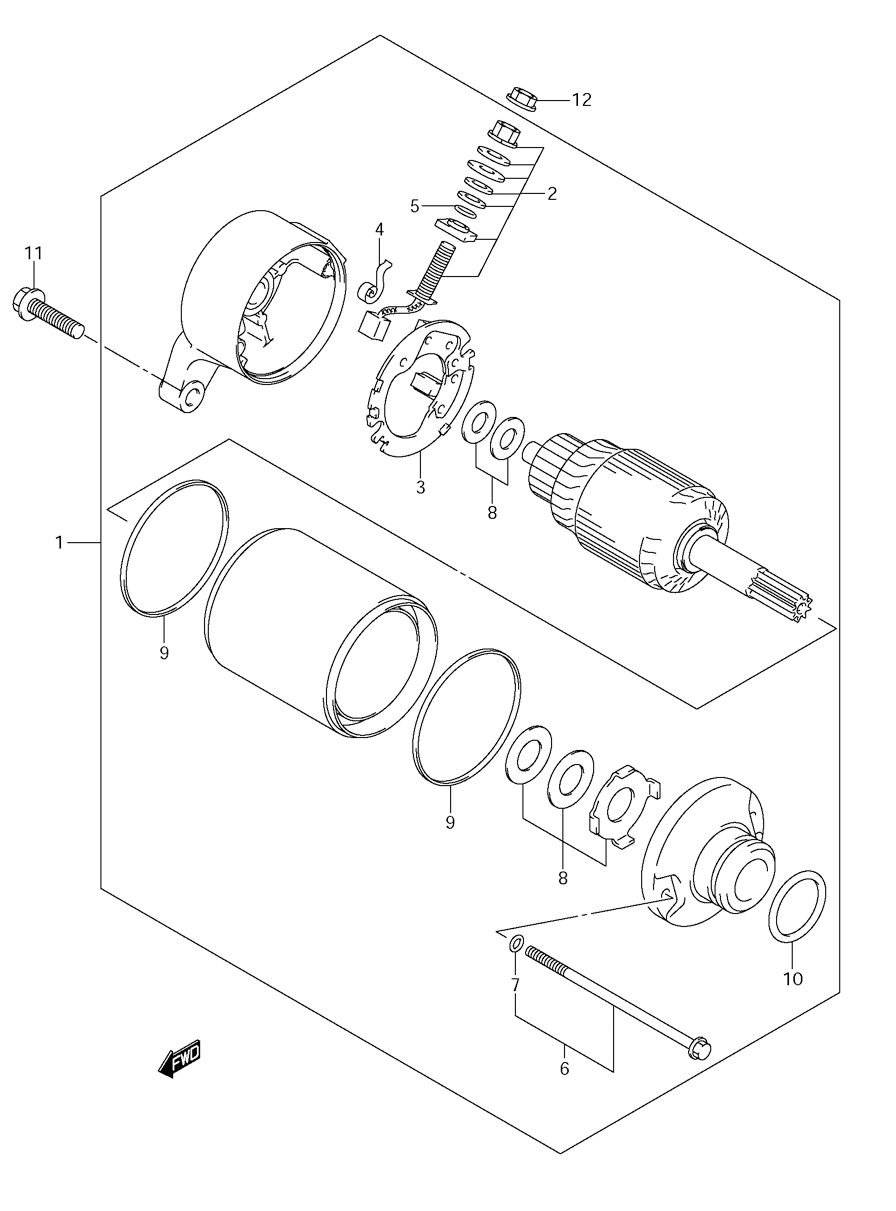

STARTING MOTOR для Suzuki DL650 K9 - 2009 года выпуска
-
№АртикулНазвание
-
131100-19F00 MOTOR ASSEMBLY, STARTINGMOTOR ASSEMBLY, STARTING
-
231130-13E00 ...BRUSH TERMINAL SET...BRUSH TERMINAL SET
-
331132-33E00 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
431135-31300 ...SPRING, BRUSH...SPRING, BRUSH
-
531143-49040 ...O RING...O RING
-
631280-19F00 ...SET BOLT ASSEMBLY...SET BOLT ASSEMBLY
-
731156-13E00 ......O RING......O RING
-
831170-19B10 ...WASHER SET...WASHER SET
-
931264-13E00 ...O RING...O RING
-
1009280-24003 ...O RING (DIAMETER: 3.1,INSIDE DIAMETER: 24.4)...O RING (DIAMETER: 3.1,INSIDE DIAMETER: 24.4)
-
1109103-06212 BOLT (6X25)BOLT (6X25)
-
1208361-3506A NUTNUT
