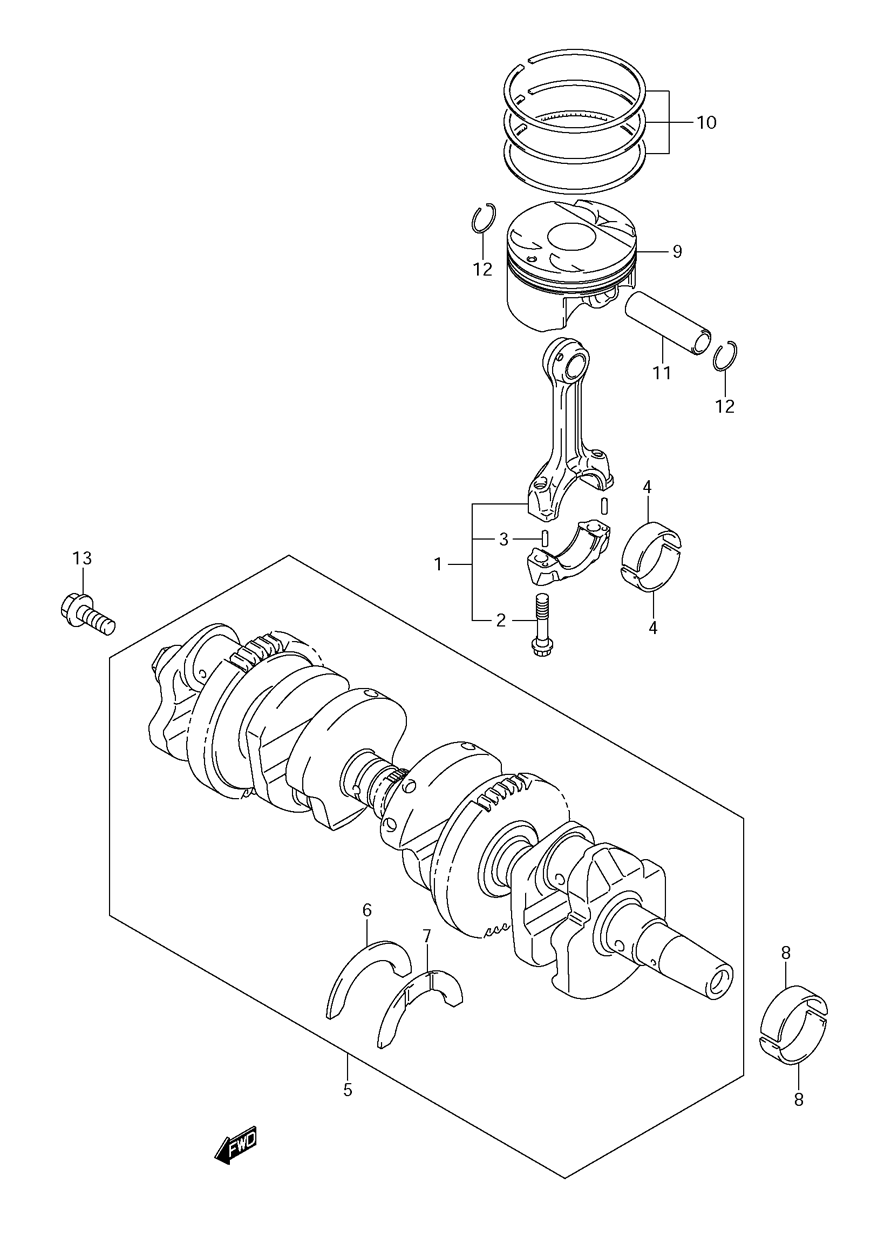

CRANKSHAFT W/ PISTON для Suzuki GSF1250S K9 BANDIT - 2009 года выпуска
-
№АртикулНазвание
-
112160-18H00 ROD ASSEMBLY, CONNECTINGROD ASSEMBLY, CONNECTING
-
212163-24F10 ...BOLT...BOLT
-
304221-04089 ...PIN...PIN
-
412164-46E01-0A0 BEARING, CRANK PIN (GREEN)BEARING, CRANK PIN (GREEN)
-
412164-46E01-0B0 BEARING, CRANK PIN (BLACK)BEARING, CRANK PIN (BLACK)
-
412164-46E01-0C0 BEARING, CRANK PIN (BROWN)BEARING, CRANK PIN (BROWN)
-
412164-46E01-0D0 BEARING, CRANK PIN (YELLOW)BEARING, CRANK PIN (YELLOW)
-
512000-18820 CRANKSHAFT SETCRANKSHAFT SET
-
612228-17E00-0D0 ...BEARING, THRUST RIGHT HAND (GREEN)...BEARING, THRUST RIGHT HAND (GREEN)
-
712228-17E00-0A0 ...BEARING, THRUST LEFT HAND (RED)...BEARING, THRUST LEFT HAND (RED)
-
712228-17E00-0B0 ...BEARING, THRUST LEFT HAND (BLACK)...BEARING, THRUST LEFT HAND (BLACK)
-
712228-17E00-0C0 ...BEARING, THRUST LEFT HAND (BLUE)...BEARING, THRUST LEFT HAND (BLUE)
-
712228-17E00-0D0 ...BEARING, THRUST LEFT HAND (GREEN)...BEARING, THRUST LEFT HAND (GREEN)
-
712228-17E00-0E0 ...BEARING, THRUST LEFT HAND (YELLOW)...BEARING, THRUST LEFT HAND (YELLOW)
-
712228-17E00-0F0 ...BEARING, THRUST LEFT HAND (WHITE)...BEARING, THRUST LEFT HAND (WHITE)
-
812229-34E00-0A0 BEARING, CRANKSHAFT (GREEN)BEARING, CRANKSHAFT (GREEN)
-
812229-34E00-0B0 BEARING, CRANKSHAFT (BLACK)BEARING, CRANKSHAFT (BLACK)
-
812229-34E00-0C0 BEARING, CRANKSHAFT (BROWN)BEARING, CRANKSHAFT (BROWN)
-
812229-34E00-0D0 BEARING, CRANKSHAFT (YELLOW)BEARING, CRANKSHAFT (YELLOW)
-
912111-18H00-0F0 PISTONPISTON
-
1012140-18H00 RING SET, PISTONRING SET, PISTON
-
1112151-07D00 PIN, PISTONPIN, PISTON
-
1209381-18003 CIRCLIPCIRCLIP
-
1301550-1016A BOLTBOLT
