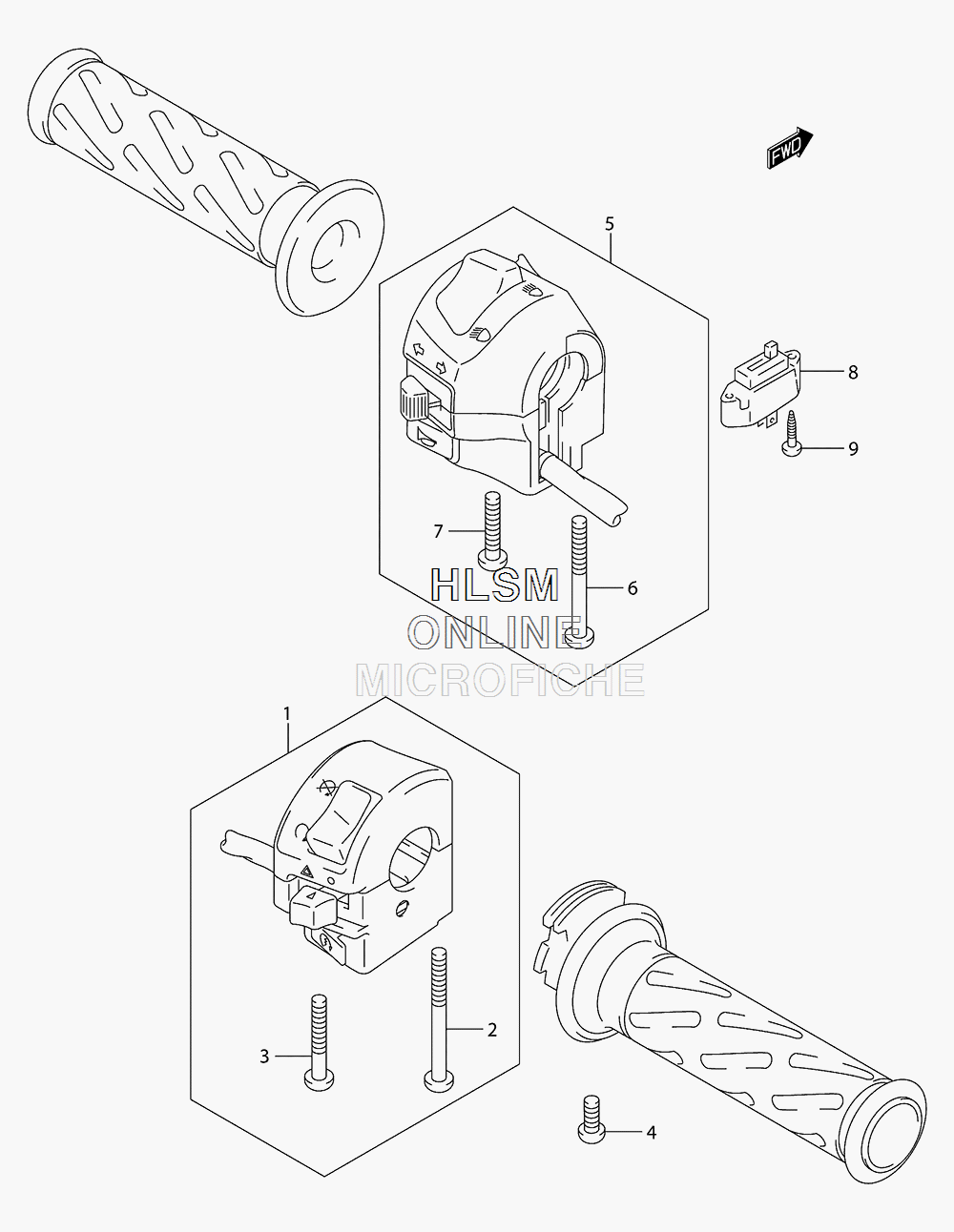

HANDLEBAR - LEVERS / SWITCHES для Suzuki SV650 K9 - 2009 года выпуска
-
№АртикулНазвание
-
137200-17G10 SWITCH ASSY, HANDLE RIGHTSWITCH ASSY, HANDLE RIGHT
-
202112-0550B ...SCREW...SCREW
-
302112-0530B ...SCREW...SCREW
-
402112-0510B SCREW, THROTTLESCREW, THROTTLE
-
537400-17G10 SWITCH ASSY, HANDLE LEFTSWITCH ASSY, HANDLE LEFT
-
602112-0545B ...SCREW...SCREW
-
709125-0506B ...SCREW (5X25)...SCREW (5X25)
-
837560-31F00 SWITCH ASSY, CLUTCHSWITCH ASSY, CLUTCH
-
909132-03017 SCREW (3X14)SCREW (3X14)
