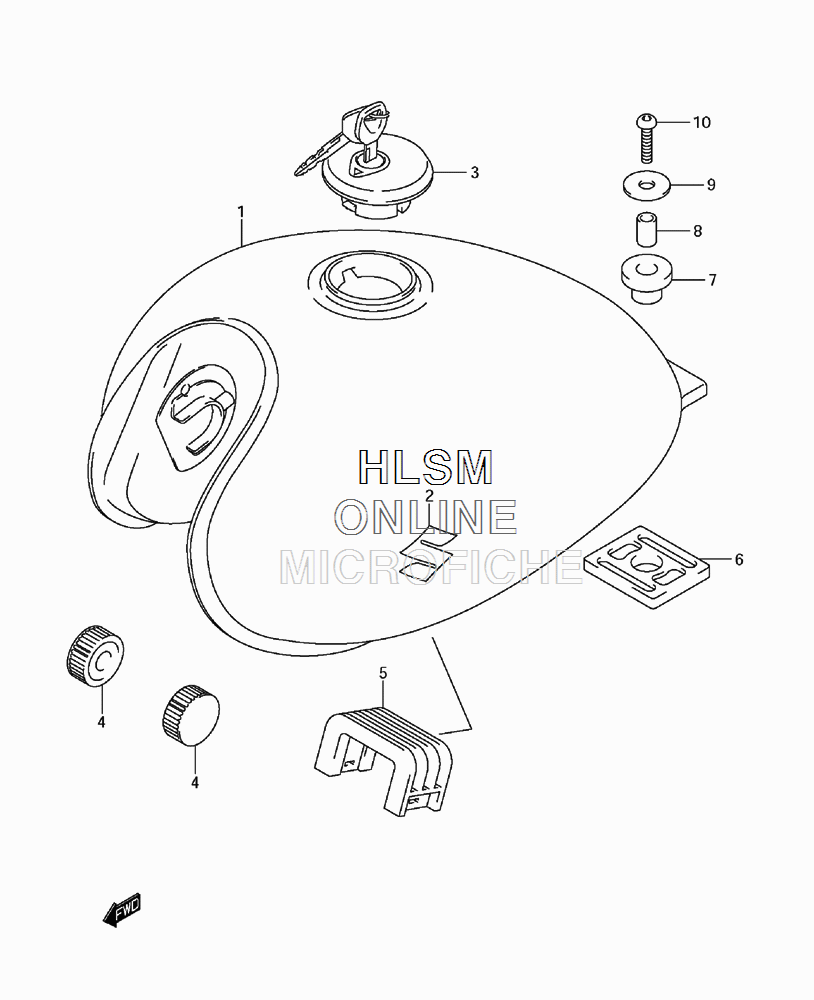

FUEL TANK для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
144100-26G40-YHL TANK ASSY, FUEL (RED)TANK ASSY, FUEL (RED)
-
268111-18G20 EMBLEMEMBLEM
-
344200-24840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409329-10016 CUSHION, FRONTCUSHION, FRONT
-
544541-38200 CUSHION, CENTERCUSHION, CENTER
-
644542-41F00 CUSHION, LOWERCUSHION, LOWER
-
744541-41F01 CUSHION, UPPERCUSHION, UPPER
-
809180-08057 SPACERSPACER
-
909160-08146 WASHERWASHER
-
1007120-0835B BOLTBOLT
