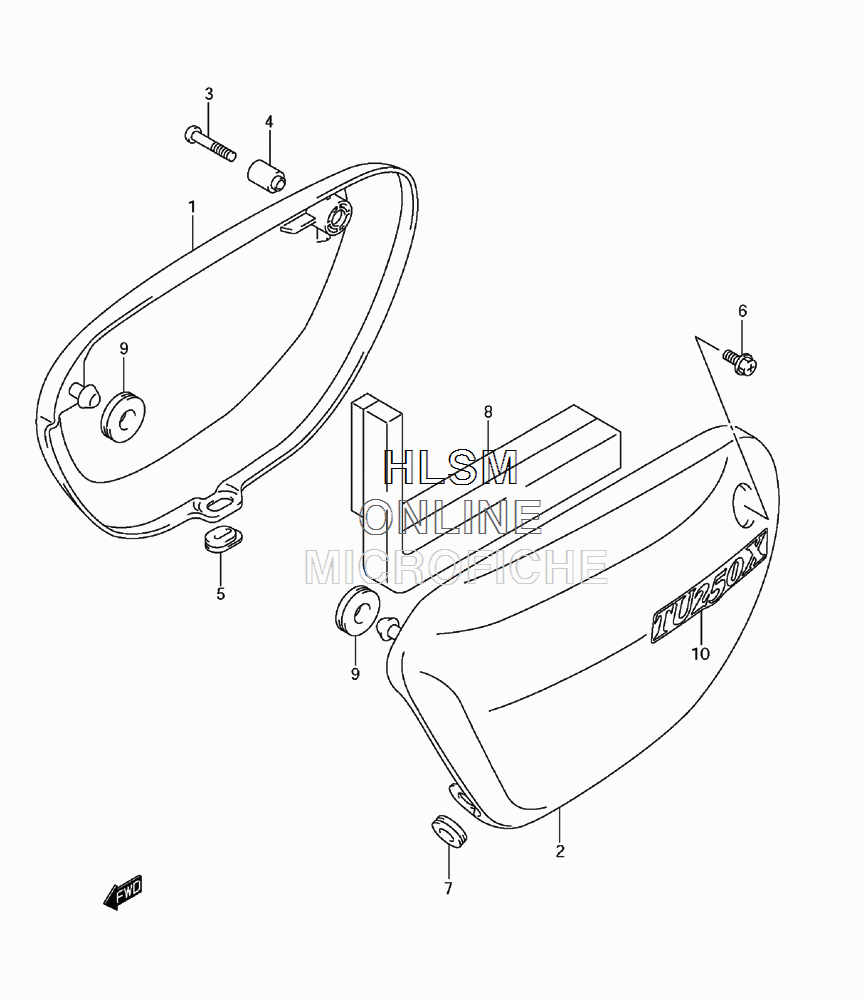

SIDE COVER для Suzuki TU250X K9 - 2009 года выпуска
-
№АртикулНазвание
-
147111-26G10-YHL COVER, FRAME RIGHT HAND (RED)COVER, FRAME RIGHT HAND (RED)
-
247211-26G11-YHL COVER, FRAME LEFT HAND (RED)COVER, FRAME LEFT HAND (RED)
-
309123-06028 SCREW, RIGHT HANDSCREW, RIGHT HAND
-
409180-06340 SPACER, RIGHT HANDSPACER, RIGHT HAND
-
509320-03004 CUSHION, RIGHT HANDCUSHION, RIGHT HAND
-
609111-06095 SCREW, LEFT HANDSCREW, LEFT HAND
-
709320-08013 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
847160-26G00 CUSHION, LEFT HANDCUSHION, LEFT HAND
-
909320-08018 CUSHIONCUSHION
-
1068131-26G50-YPA EMBLEM (WHITE)EMBLEM (WHITE)
