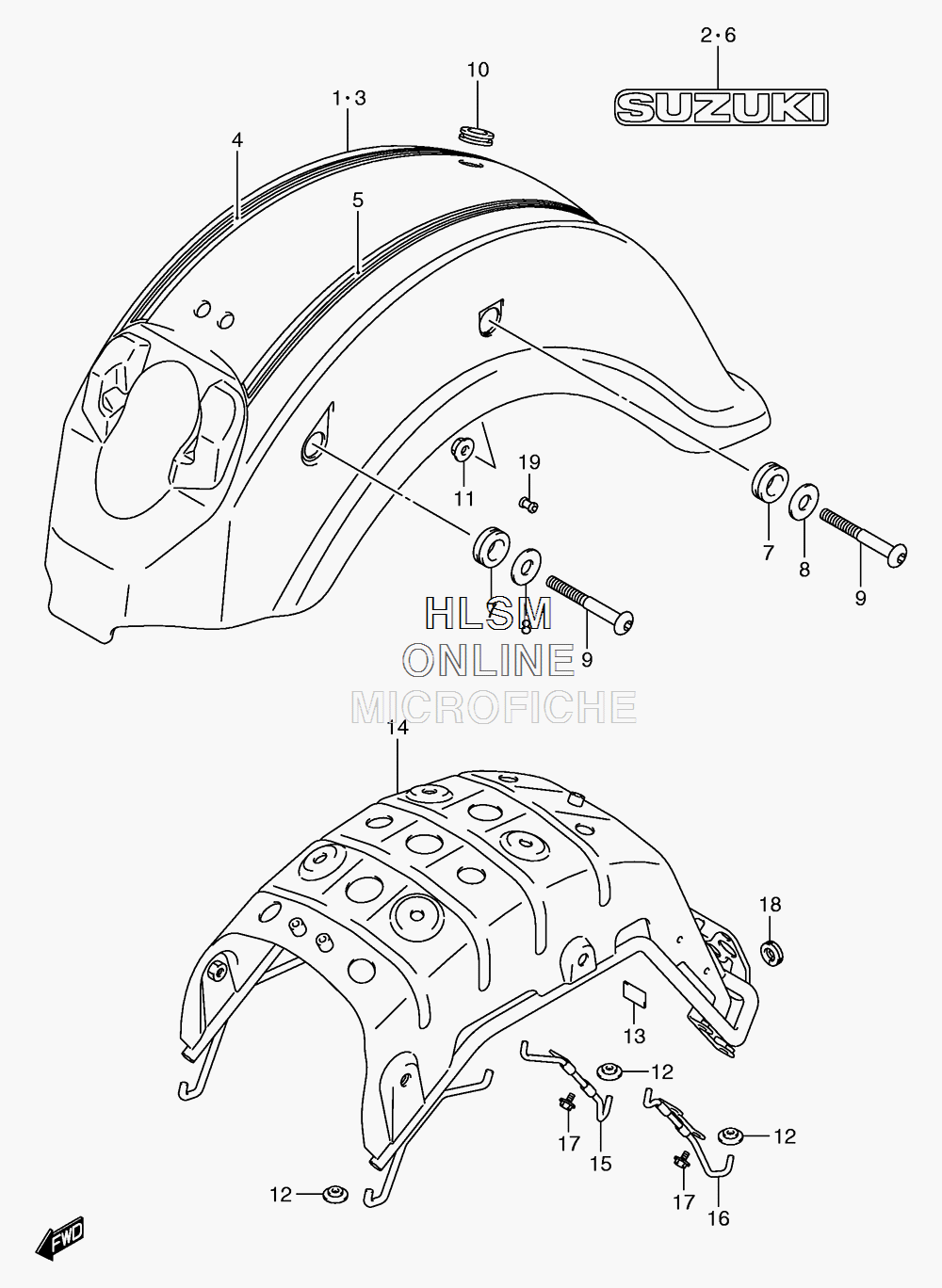

FENDER - REAR для Suzuki VL800C K9 - 2009 года выпуска
-
№АртикулНазвание
-
163110-43H00-YAY FENDER, REAR (YAY - BLACK) (INC 3)FENDER, REAR (YAY - BLACK) (INC 3)
-
163110-43H00-YMK FENDER, REAR (YMK - RED) (INC 3)FENDER, REAR (YMK - RED) (INC 3)
-
268271-34A00-YES ...EMBLEM (YES - SILVER)...EMBLEM (YES - SILVER)
-
363110-43H20-GDV FENDER, REAR (GDV - GRAY/SILVER) (INC 4-6)FENDER, REAR (GDV - GRAY/SILVER) (INC 4-6)
-
363110-43H20-GDU FENDER, REAR (GDU - GREEN/WHITE) (INC 4-6)FENDER, REAR (GDU - GREEN/WHITE) (INC 4-6)
-
468170-43H00-GNT ...TAPE SET, RIGHT HAND (GNT - GRAY/SILVER/WHITE FOR GDV - GRAY/SILVER)...TAPE SET, RIGHT HAND (GNT - GRAY/SILVER/WHITE FOR GDV - GRAY/SILVER)
-
468170-43H00-GNV ...TAPE SET, RIGHT HAND (GNV - GREEN/GOLD/WHITE FOR GDU - GREEN/WHITE)...TAPE SET, RIGHT HAND (GNV - GREEN/GOLD/WHITE FOR GDU - GREEN/WHITE)
-
568710-43H00-GNT ...TAPE SET, LEFT HAND (GNT - GRAY/SILVER/WHITE FOR GDV - GRAY/SILVER)...TAPE SET, LEFT HAND (GNT - GRAY/SILVER/WHITE FOR GDV - GRAY/SILVER)
-
568710-43H00-GNV ...TAPE SET, LEFT HAND (GNV - GREEN/GOLD/WHITE FOR GDU - GREEN/WHITE)...TAPE SET, LEFT HAND (GNV - GREEN/GOLD/WHITE FOR GDU - GREEN/WHITE)
-
668271-34A00-YJH ...EMBLEM (YJH - GRAY)...EMBLEM (YJH - GRAY)
-
747191-24F00 CUSHIONCUSHION
-
809160-15002 WASHERWASHER
-
963161-41F00 BOLTBOLT
-
1009320-15008 CUSHION, PILLION SEATCUSHION, PILLION SEAT
-
1108316-1008B NUTNUT
-
1209320-06026 CUSHION, REARCUSHION, REAR
-
1353145-17C00 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1463130-43H00 PLATE, REAR FENDERPLATE, REAR FENDER
-
1563150-43H00 BRACKET, LOWER RHBRACKET, LOWER RH
-
1663160-43H00 BRACKET, LOWER LHBRACKET, LOWER LH
-
1701550-0610B BOLTBOLT
-
1809308-10017 GROMMET, MUDGUARDGROMMET, MUDGUARD
-
1909250-07004 CUSHION, GRIPCUSHION, GRIP
