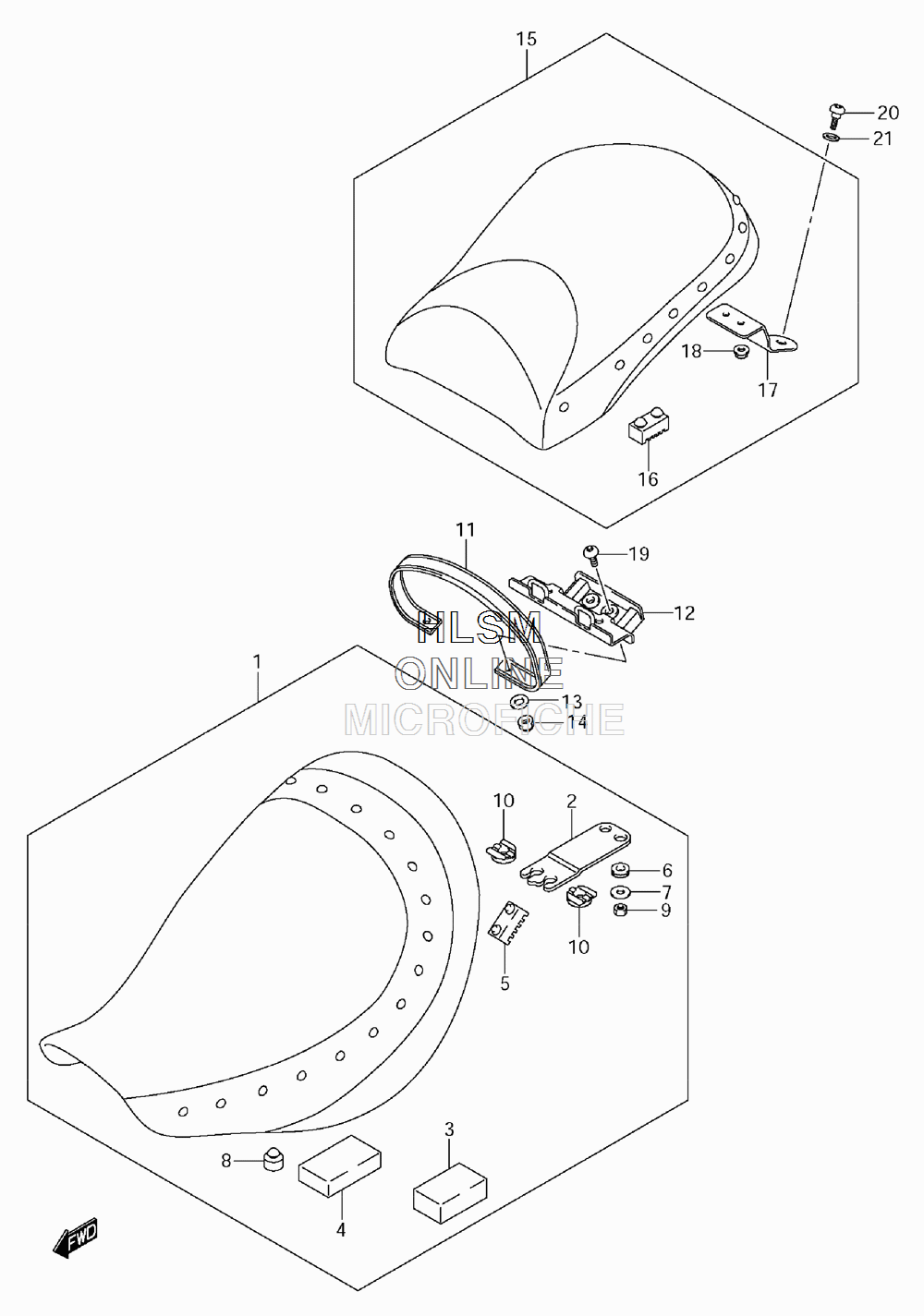

SEAT для Suzuki VLR1800T K9 - 2009 года выпуска
-
№АртикулНазвание
-
145100-22H10-V4Y SEAT ASSY (BLACK) (INCL. 2-10)SEAT ASSY (BLACK) (INCL. 2-10)
-
245115-22H00 BRACKET, SEATBRACKET, SEAT
-
345148-22H00 CUSHIONCUSHION
-
445149-22H00 CUSHIONCUSHION
-
545149-42F00 CUSHIONCUSHION
-
645215-06B00 CUSHIONCUSHION
-
709160-06088 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
809321-10011 CUSHIONCUSHION
-
908316-1006A NUTNUT
-
1009320-10057 CUSHION, SEAT BRACKETCUSHION, SEAT BRACKET
-
1145181-22H00-V4Y BAND, SEATBAND, SEAT
-
1245185-22H00 BRACKET, SEAT BANDBRACKET, SEAT BAND
-
1309160-06088 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
1408313-2006A NUTNUT
-
1545300-22H10-V4Y SEAT ASSY, PILLION (BLACK) (INCL. 16-18)SEAT ASSY, PILLION (BLACK) (INCL. 16-18)
-
1645149-42F00 CUSHIONCUSHION
-
1745315-22H00 BRACKET, SEATBRACKET, SEAT
-
1808316-1006A NUTNUT
-
1909106-06064 BOLT, SEAT BAND BRACKETBOLT, SEAT BAND BRACKET
-
2045318-22H00 BOLT, PILLION SEATBOLT, PILLION SEAT
-
2145317-22H00 WASHER, PILLION SEATWASHER, PILLION SEAT
