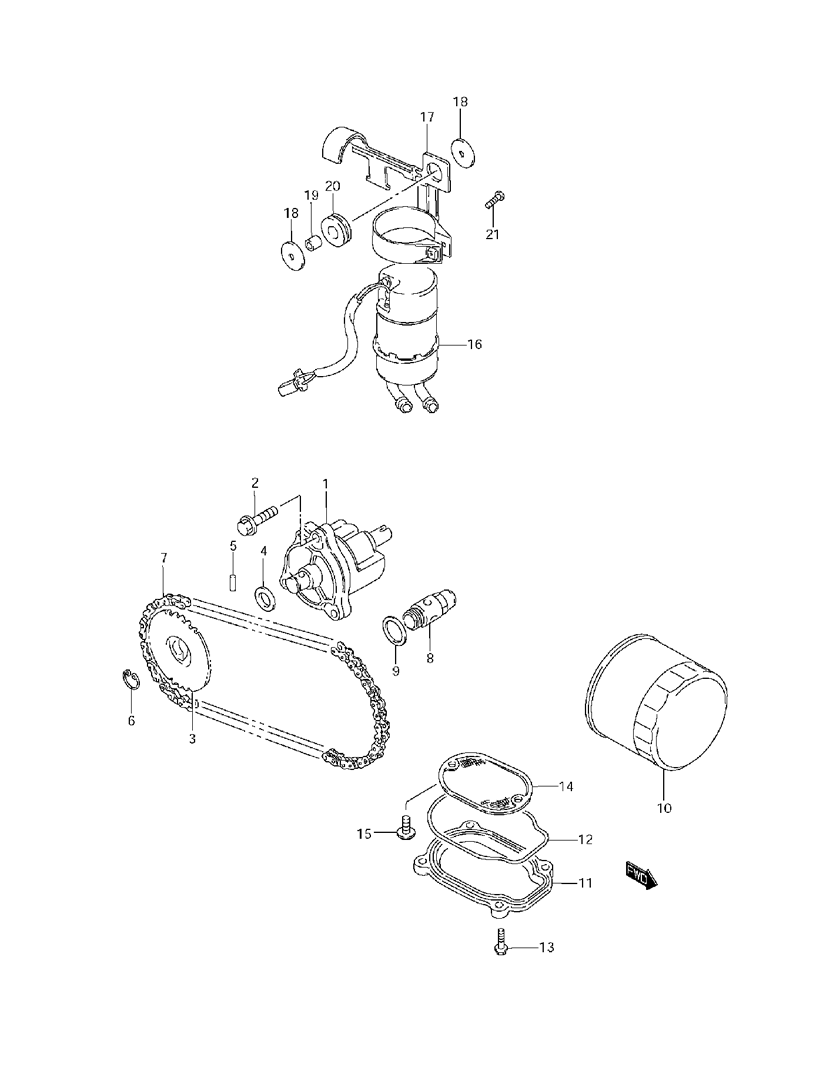

OIL PUMP - FUEL PUMP для Suzuki VS800 K9 - 2009 года выпуска
-
№АртикулНазвание
-
116400-38A01 PUMP ASSY, OILPUMP ASSY, OIL
-
201550-0625B BOLTBOLT
-
316331-38A10 SPROCKET, OIL PUMP DRIVENSPROCKET, OIL PUMP DRIVEN
-
409181-12158 WASHERWASHER
-
509261-05006 PINPIN
-
608331-31126 CIRCLIPCIRCLIP
-
716310-38A00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
816440-17C20 VALVE ASSY, OIL RELIEFVALVE ASSY, OIL RELIEF
-
909168-16002 GASKET 16X22X2GASKET 16X22X2
-
1016510-03G00-X07 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1116523-38A00 CAP, OIL STRAINERCAP, OIL STRAINER
-
1216528-38A00 O RINGO RING
-
1301550-0620A BOLTBOLT
-
1416520-38A10 STRAINER, OILSTRAINER, OIL
-
1502112-7512A SCREWSCREW
-
1615100-38A10 PUMP ASSY, FUELPUMP ASSY, FUEL
-
1715110-38A10 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
1809169-06016 WASHERWASHER
-
1909180-06082 SPACERSPACER
-
2009320-10014 CUSHIONCUSHION
-
2102142-0420B SCREWSCREW
