GASKET SET для Suzuki VZ800T K9 - 2009 года выпуска
-
№АртикулНазвание
-

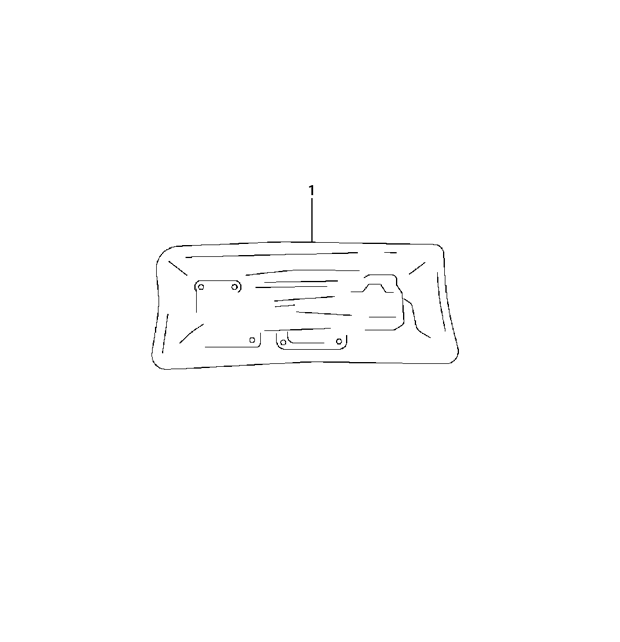

111402-41820 GASKET SET (INCLUDES ITEM(S) 2 - 17)GASKET SET (INCLUDES ITEM(S) 2 - 17)
-
211123-38A00 GASKET, HEAD COVER (NOT SHOWN)GASKET, HEAD COVER (NOT SHOWN)
-
311141-41F00 GASKET, CYLINDER HEAD FRONT (NOT SHOWN)GASKET, CYLINDER HEAD FRONT (NOT SHOWN)
-
411142-41F00 GASKET, CYLINDER HEAD REAR (NOT SHOWN)GASKET, CYLINDER HEAD REAR (NOT SHOWN)
-
511177-38A00 GASKET, INSPECTION CAP (NOT SHOWN)GASKET, INSPECTION CAP (NOT SHOWN)
-
611187-41F20 GASKET, BREATHER COVER (NOT SHOWN)GASKET, BREATHER COVER (NOT SHOWN)
-
711241-41F00 GASKET, CYLINDER (NOT SHOWN)GASKET, CYLINDER (NOT SHOWN)
-
811482-41F00 GASKET, CLUTCH COVER (NOT SHOWN)GASKET, CLUTCH COVER (NOT SHOWN)
-
911483-41F00 GASKET, GENERATOR COVER (NOT SHOWN)GASKET, GENERATOR COVER (NOT SHOWN)
-
1014181-10F00 GASKET, EXHAUST PIPE (NOT SHOWN)GASKET, EXHAUST PIPE (NOT SHOWN)
-
1116528-38A00 O RING, OIL STRAINER CAP (NOT SHOWN)O RING, OIL STRAINER CAP (NOT SHOWN)
-
1209168-06023 GASKET (5.8X13X1.2) (NOT SHOWN)GASKET (5.8X13X1.2) (NOT SHOWN)
-
1309168-08029 GASKET (8.2X14X1) (NOT SHOWN)GASKET (8.2X14X1) (NOT SHOWN)
-
1409168-10002 GASKET (10X14X3.6) (NOT SHOWN)GASKET (10X14X3.6) (NOT SHOWN)
-
1509168-14002 GASKET, (13.8X18.8) (NOT SHOWN)GASKET, (13.8X18.8) (NOT SHOWN)
-
1609168-16002 GASKET (16X22X2) (NOT SHOWN)GASKET (16X22X2) (NOT SHOWN)
-
1709280-04004 O RING (D:1.2,ID:4.0) (NOT SHOWN)O RING (D:1.2,ID:4.0) (NOT SHOWN)
