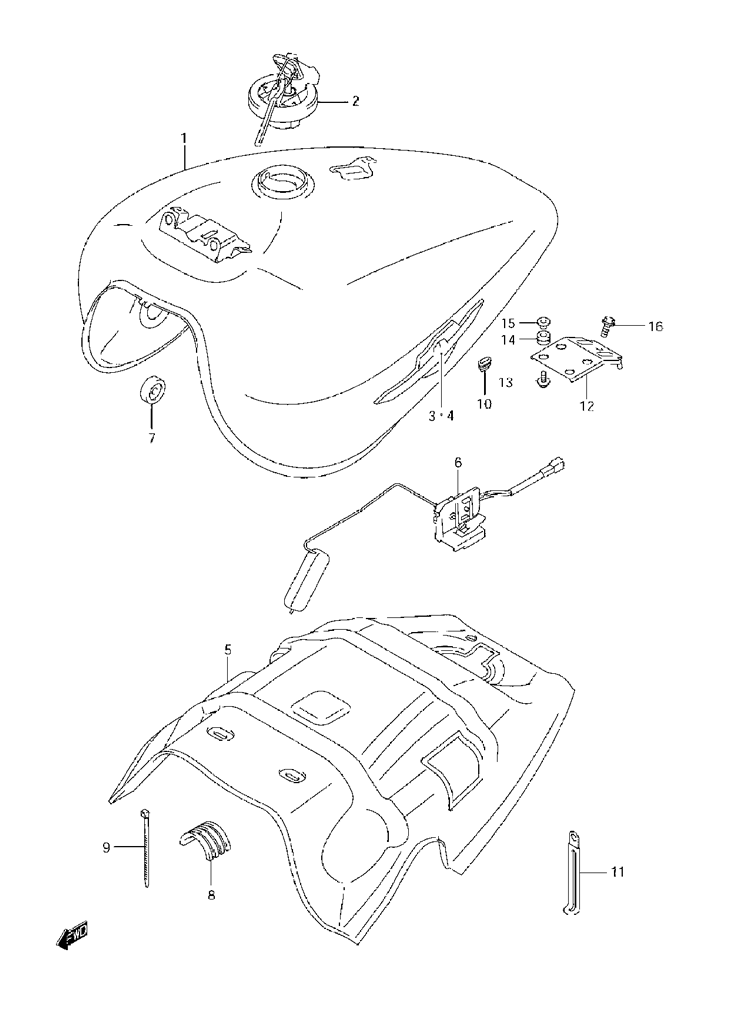

FUEL TANK для Suzuki VZR1800N K9 M109RZ LTD - 2009 года выпуска
-
№АртикулНазвание
-
144100-48G00-YAY TANK ASSY, FUEL (BLACK) (YAY)TANK ASSY, FUEL (BLACK) (YAY)
-
144100-48G00-YMD TANK ASSY, FUEL (SILVER) (YMD)TANK ASSY, FUEL (SILVER) (YMD)
-
144100-48G00-YMK TANK ASSY, FUEL (RED) (YMK)TANK ASSY, FUEL (RED) (YMK)
-
144100-48G20-YAY TANK ASSY, FUEL (BLACK) (YAY)TANK ASSY, FUEL (BLACK) (YAY)
-
144100-48G20-YMD TANK ASSY, FUEL (SILVER) (YMD)TANK ASSY, FUEL (SILVER) (YMD)
-
144100-48G20-YMK TANK ASSY, FUEL (RED) (YMK)TANK ASSY, FUEL (RED) (YMK)
-
244200-39830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
244200-39840 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
368111-48G00 EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
468121-48G00 EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
544191-48G10 SHIELD, TANK HEATSHIELD, TANK HEAT
-
634810-48G00 GAUGE ASSY, FUEL LEVELGAUGE ASSY, FUEL LEVEL
-
709329-10007 CUSHION, FRONTCUSHION, FRONT
-
844541-13E10 CUSHION, SIDECUSHION, SIDE
-
909407-30402 CLAMPCLAMP
-
1044276-29G00 CUSHION, REAR FENDERCUSHION, REAR FENDER
-
1109404-06433 CLAMP, SHIELDCLAMP, SHIELD
-
1244530-48G00 BRACKET, REARBRACKET, REAR
-
1309116-06192 BOLTBOLT
-
1409320-08001 CUSHIONCUSHION
-
1509169-06062 SPACERSPACER
-
1601550-0812A BOLT, REARBOLT, REAR
