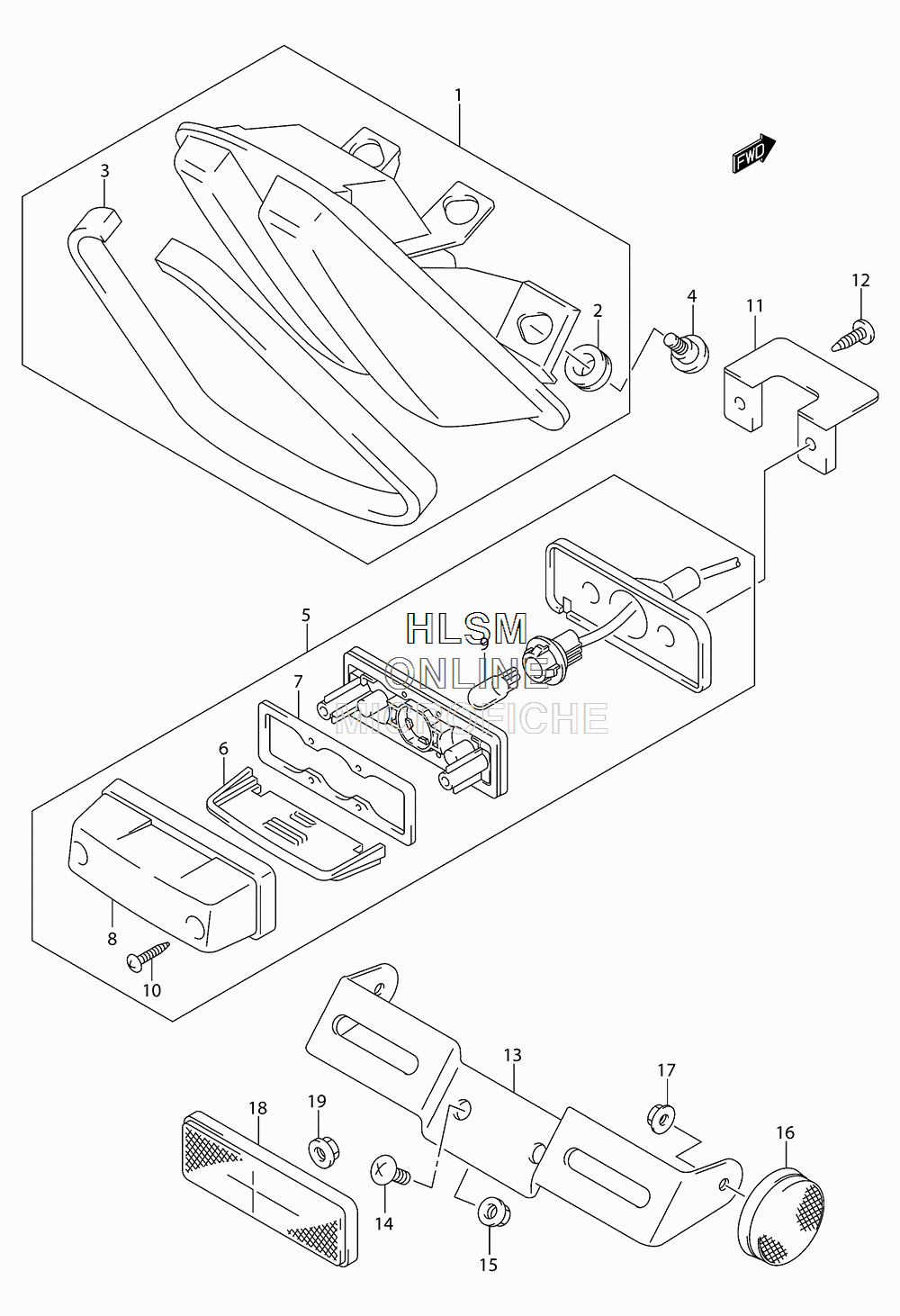

TAILLIGHT/TURN SIGNAL ASSY. для Suzuki SV650 L0 - 2010 года выпуска
-
№АртикулНазвание
-
135710-16G31 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
209320-10049 ...CUSHION...CUSHION
-
345519-16G01 ...CUSHION, SEAT TAIL COVER...CUSHION, SEAT TAIL COVER
-
409139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
535910-16G10 LAMP ASSY, LICENSELAMP ASSY, LICENSE
-
635912-16G00 ...LENS...LENS
-
735913-16G00 ...GASKET...GASKET
-
835917-16G00 ...COVER...COVER
-
909471-12216 ...BULB (12V,5W)...BULB (12V,5W)
-
1003211-0416A ...SCREW...SCREW
-
1135926-16G00 BRACKET, LICENSEBRACKET, LICENSE
-
1203541-0520B SCREWSCREW
-
1335927-17G30 BRACKET, LICENSE PLATEBRACKET, LICENSE PLATE
-
1402142-0616B SCREWSCREW
-
1508316-1006B NUTNUT
-
1635970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1708316-1005B NUT, REAR SIDE RRNUT, REAR SIDE RR
-
1835970-07F01 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1908316-1005B NUT, REAR RRNUT, REAR RR
