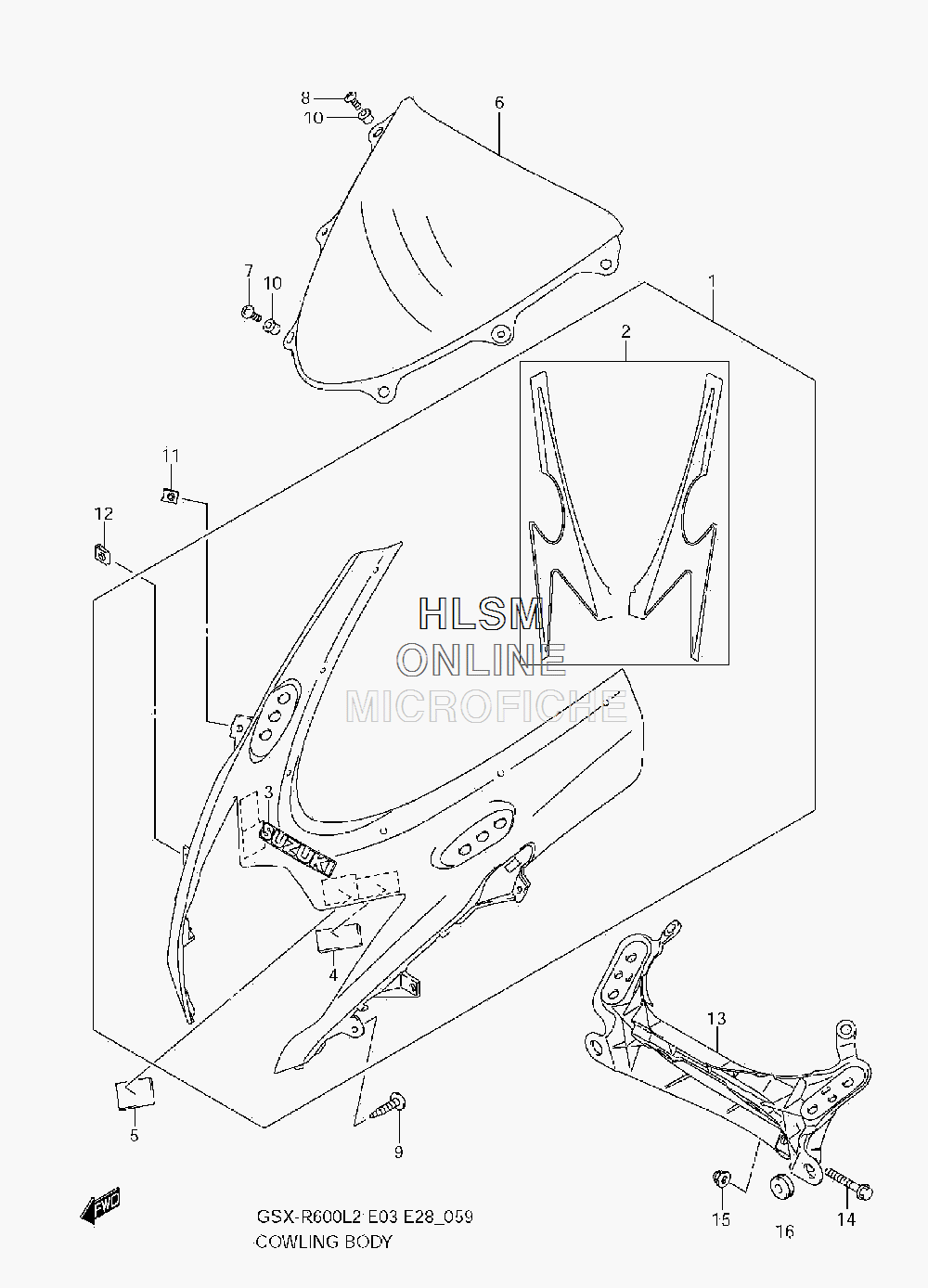

COWLING BODY для Suzuki GSX-R600 L2 - 2012 года выпуска
-
№АртикулНазвание
-
194410-14J00-YBD BODY, COWLING (INCL. 2) (WHITE) (GLR FOR BLUE METALLIC)BODY, COWLING (INCL. 2) (WHITE) (GLR FOR BLUE METALLIC)
-
194410-14J10-6UX BODY, COWLING (INCL. 2) (BLACK) (44X FOR SPARKLE BLACK)BODY, COWLING (INCL. 2) (BLACK) (44X FOR SPARKLE BLACK)
-
268270-14J00-JSC TAPE SET, BODY COWLING (GLR FOR BLUE METALLIC)TAPE SET, BODY COWLING (GLR FOR BLUE METALLIC)
-
368281-24F10-019 EMBLEM (BLACK) (GLR FOR BLUE METALLIC)EMBLEM (BLACK) (GLR FOR BLUE METALLIC)
-
368641-19F00-YHL EMBLEM (RED) (44X FOR SPARKLE BLACK)EMBLEM (RED) (44X FOR SPARKLE BLACK)
-
492146-14J00 CUSHIONCUSHION
-
544572-02F01 FASTENERFASTENER
-
694611-14J00 WINDSCREENWINDSCREEN
-
709125-05133 SCREW (5X18)SCREW (5X18)
-
809125-05134 SCREW (5X15)SCREW (5X15)
-
903541-0516A SCREWSCREW
-
1009159-05019 NUTNUT
-
1109148-05052 NUTNUT
-
1209148-05047 NUTNUT
-
1394511-14J00 BRACE, COWLINGBRACE, COWLING
-
1409103-08207 BOLT (8X45)BOLT (8X45)
-
1508313-2008A NUTNUT
-
1609320-08047 CUSHIONCUSHION
